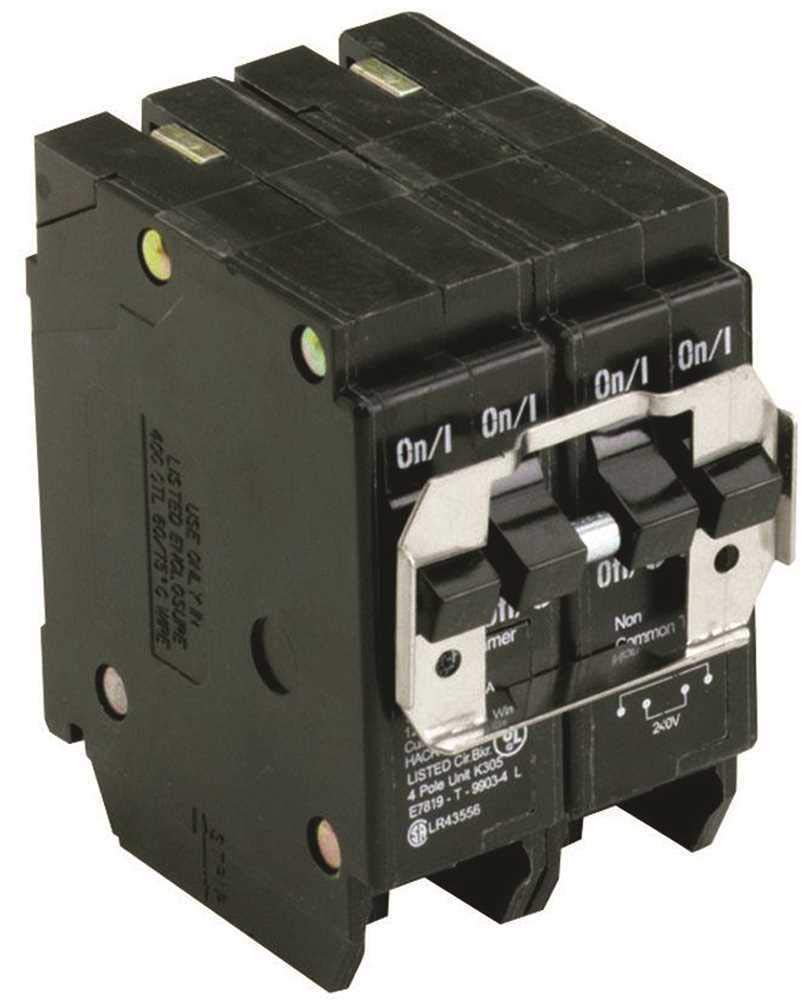

Eaton BQC230230 Quad Breaker 2-2P 30A CT – 1x1 Panel Fit

Overview

The Eaton BQC230230 Quad Breaker is built to safeguard home wiring by interrupting overloads and fault currents before they cause damage. This quadplex design fits into two spaces and enables four circuits, supporting 240-Volt configurations in BR-type load centers. It combines compact placement with robust protection, making it a practical upgrade for organized panels.

Key features at a glance

• Amperage and configuration: two 2-pole breakers at 30 A each, forming four poles total
• Trip type: common trip to shut down related circuits together
• Panel compatibility: intended for BR type load centers
• Rejection tab: includes a clip feature for proper alignment in the panel
• UL approved replacement: compatible as a genuine BR load center substitute for Westinghouse, Challenger, and Bryant

Real-world use cases

In everyday homes, this quad breaker can streamline wiring in zones demanding multiple circuits—think kitchens with lighting, outlets, and small appliances, or home offices with shared power needs. By consolidating four related circuits into a compact unit, it helps keep panel layouts tidy and accessible.

Practical installation notes

Install only in panel positions that have notched bus stabs to accommodate the rejection clip. Always follow local electrical codes and ensure the panel is de-energized before replacing a breaker. When in doubt, consult a licensed electrician for proper fit and safety.

Care and longevity

Used as intended, the Eaton BQC230230 quad breaker offers dependable protection while reducing clutter in the panel, which can simplify troubleshooting and future upgrades.
