EANOSIC Solid Carbide O-Flute Upcut Router Bit, 1/4-inch Shank – Nano Blue Coated for Aluminum and Plastics

Precision performance with EANOSIC solid carbide O-flute router bit

Designed for CNC routing tasks, this bit features a 1/4-inch shank, a 1/4-inch cutting diameter, and a total length of 2-1/2 inches. The upcut geometry channels chips away from the cut, promoting cleaner surfaces and efficient chip evacuation. The mirror-polished finish reduces sticking, delivering a smoother cutting feel as you work with hardwood composites, plastics, and lightweight metals. This is a plunge CNC end mill designed to fit in standard 1/4-inch collets while delivering consistent results across multiple materials.

Key design and material advantages

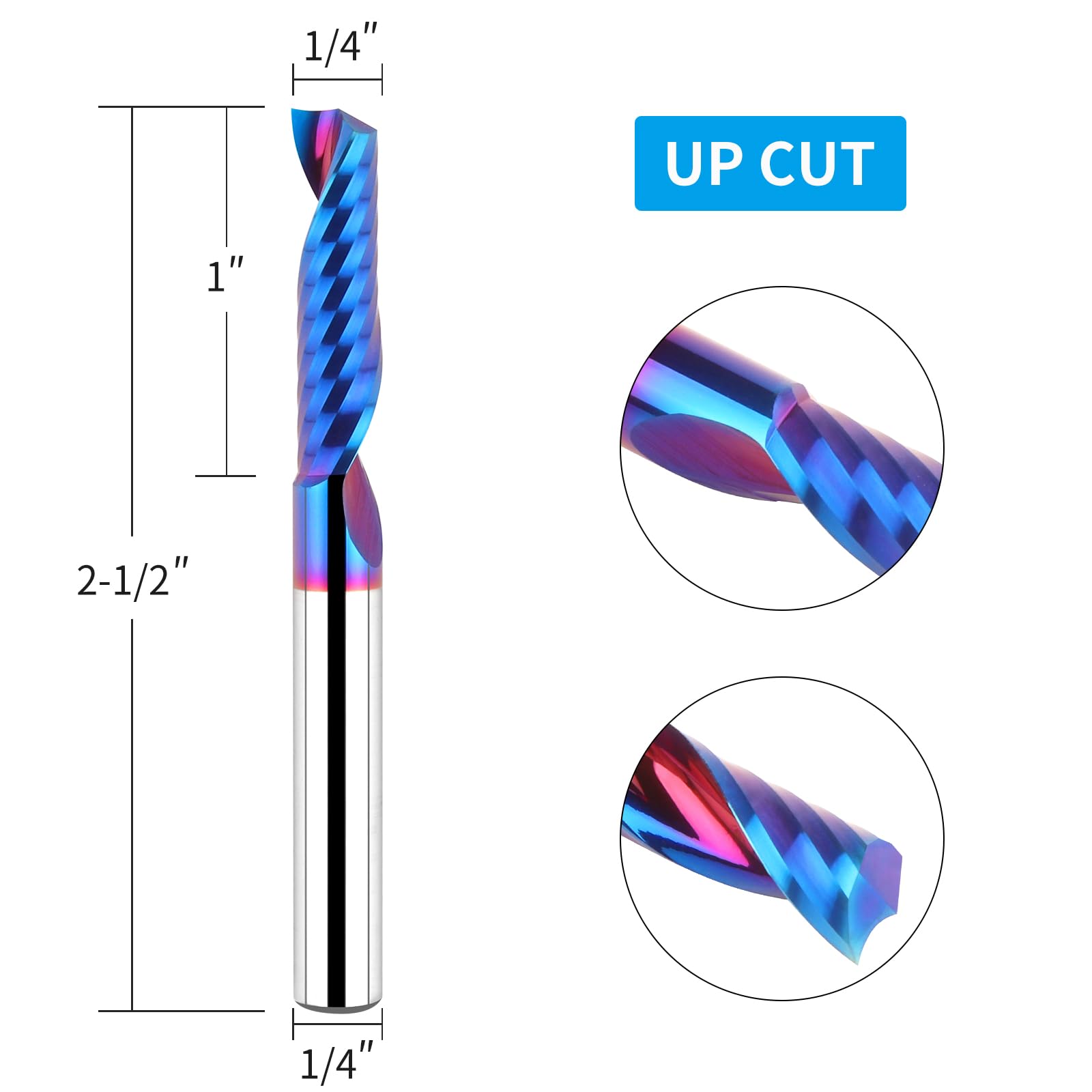

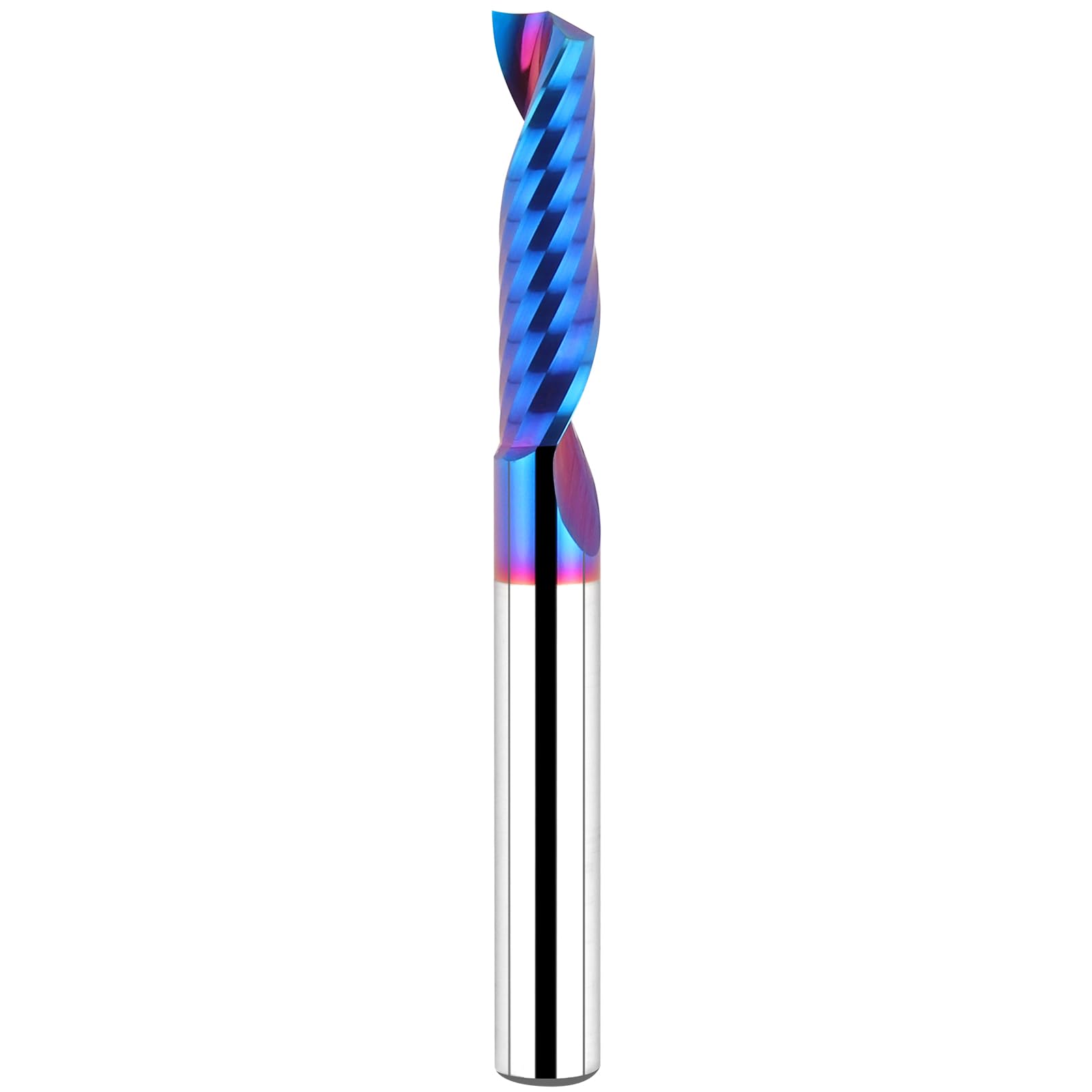

• INDUSTRIAL GRADE Spiral Router Bit with 1/4 inch Shank and 1/4 inch Cutting Diameter, 1 inch Cutting Length, 2-1/2 inch overall length, Up Cut, Flat Top with Single Flute.

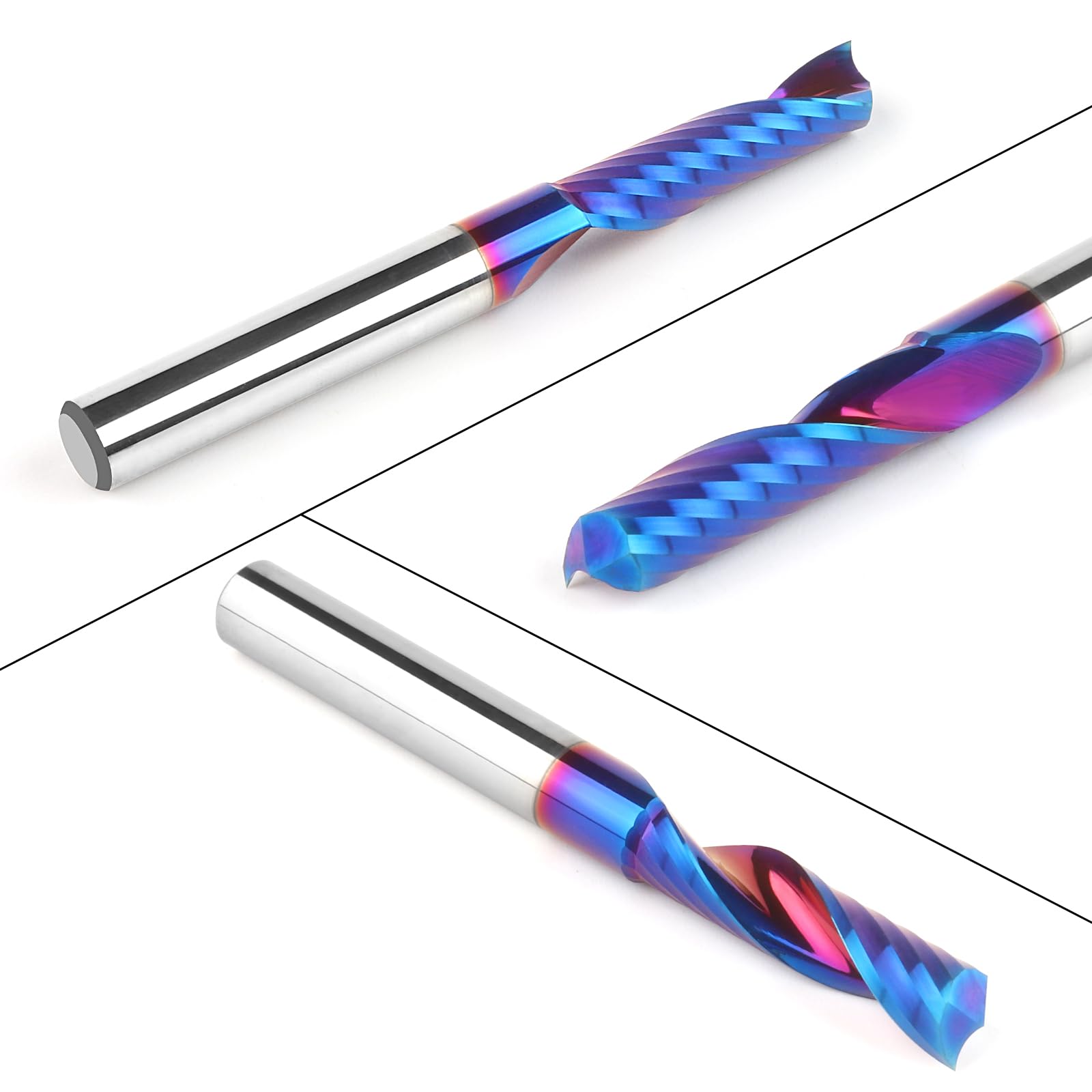

• SOLID CARBIDE AND NANO BLUE COATED: The single flute router bit uses solid carbide and a blue nano coating that enhances hardness and heat resistance, helping the edge stay sharp and lubricated for longer cutting sessions. Expect a clean surface and reliable performance.

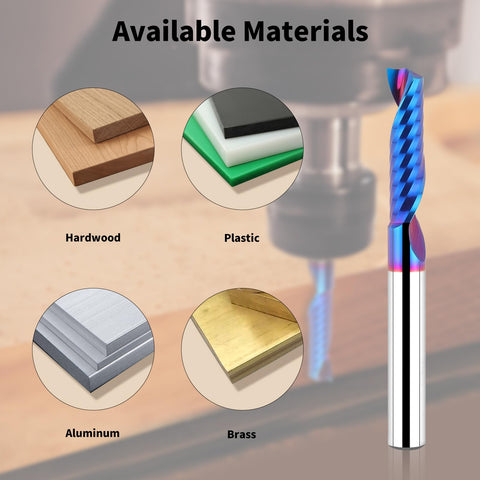

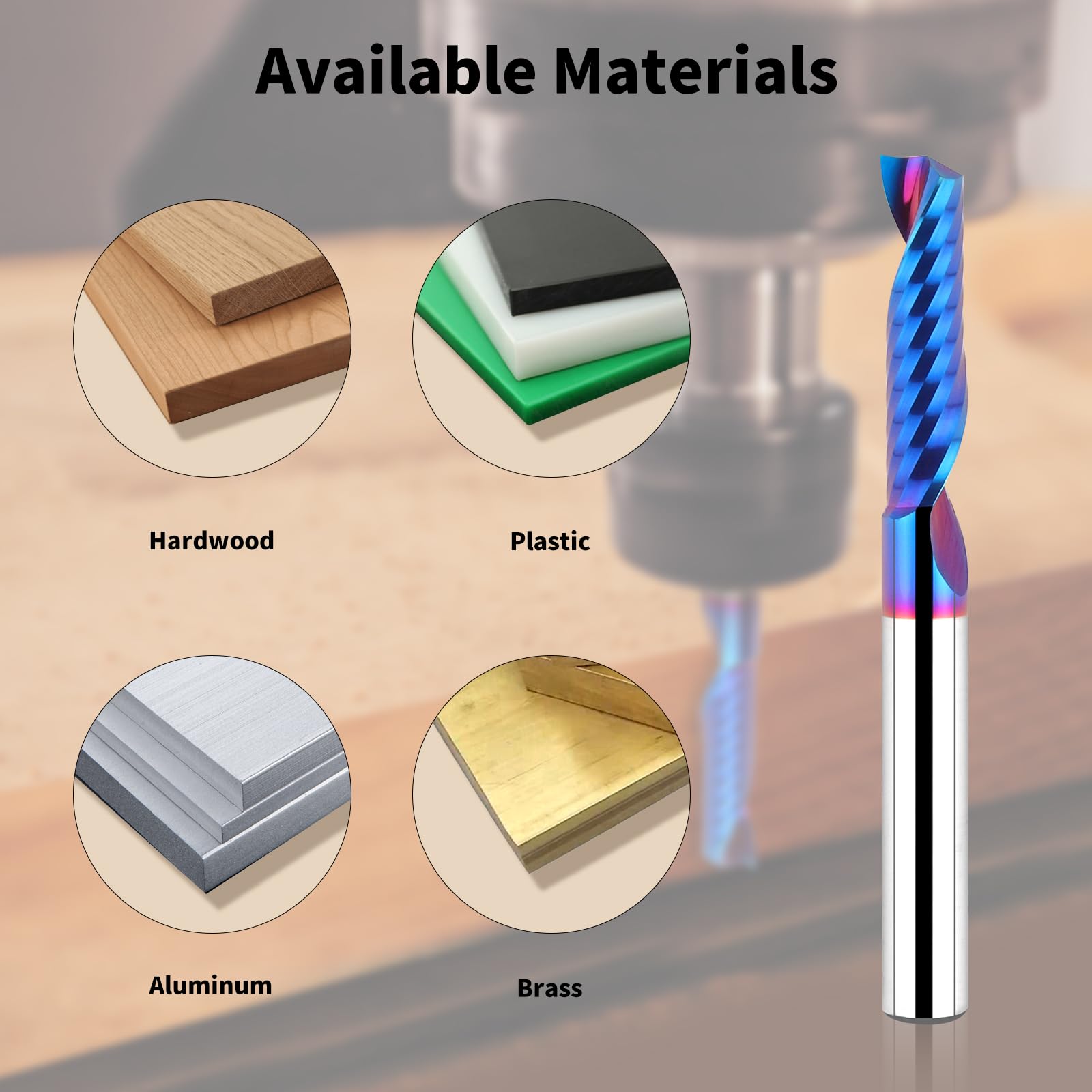

• Designed for Carving, Cutting, Slotting, Milling, and Hollow Cutting in Aluminum, Copper, Brass, Plastics (ABS, acrylic, HDPE) and aluminum composites.

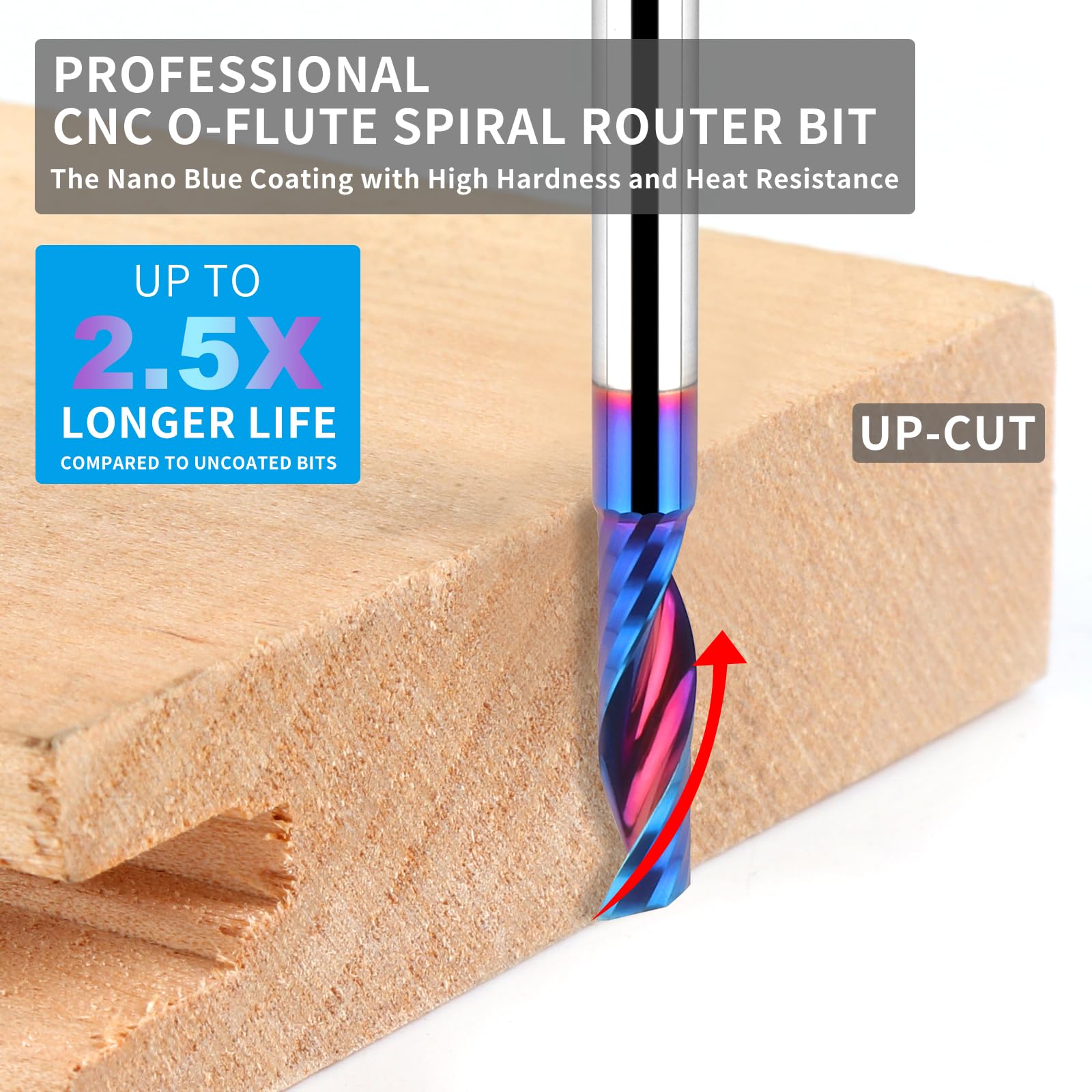

• The 1 flute design provides efficient chip ejection and effective heat dissipation, reducing the risk of jamming when working with softer materials and gummy stock.

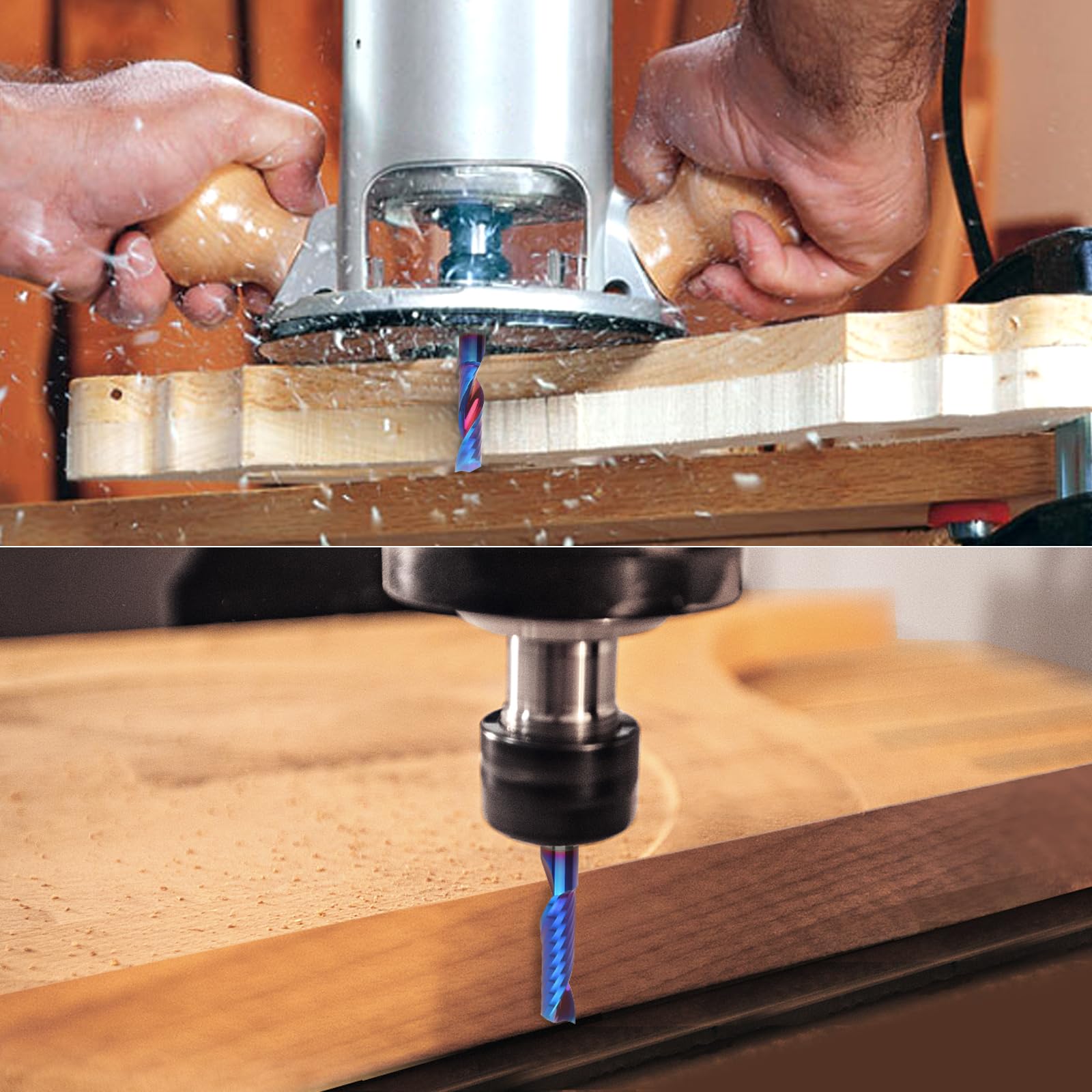

• Easy installation with a straight shank and a rounded chamfer for quick seating in your collet or chuck.

Performance, materials, and real-world use cases

Whether you are finishing cabinet profiles, making precise slots, or hollowing sections, this bit offers a versatile option for aluminum, certain plastics, and composite materials. The nano coating supports longevity under repeated passes and higher spindle speeds, while the single flute geometry helps maintain a steady cut and a smooth surface across compatible materials.

• Materials and projects: Carving profiles, slotting channels, milling pockets, and hollowing cuts in hardwood, MDF, ABS, acrylic, PVC, and related composites.
• Practical tasks: Clean edge surfaces, precise channeling, and consistent chip removal for efficient workflows.

Tips for best results

• Use appropriate feed rates and spindle speeds for your material to maximize tool life and surface finish.
• Secure the workpiece firmly and use proper cooling or air blast to aid chip removal and reduce heat buildup.
• Inspect wear and replace when the cutting edge shows signs of dulling to maintain cut quality.
