EANOSIC Extra Long Compression Flush Trim Router Bit - 1/2 Inch Dia, 1/4 Inch Shank, Top Bearing

Overview

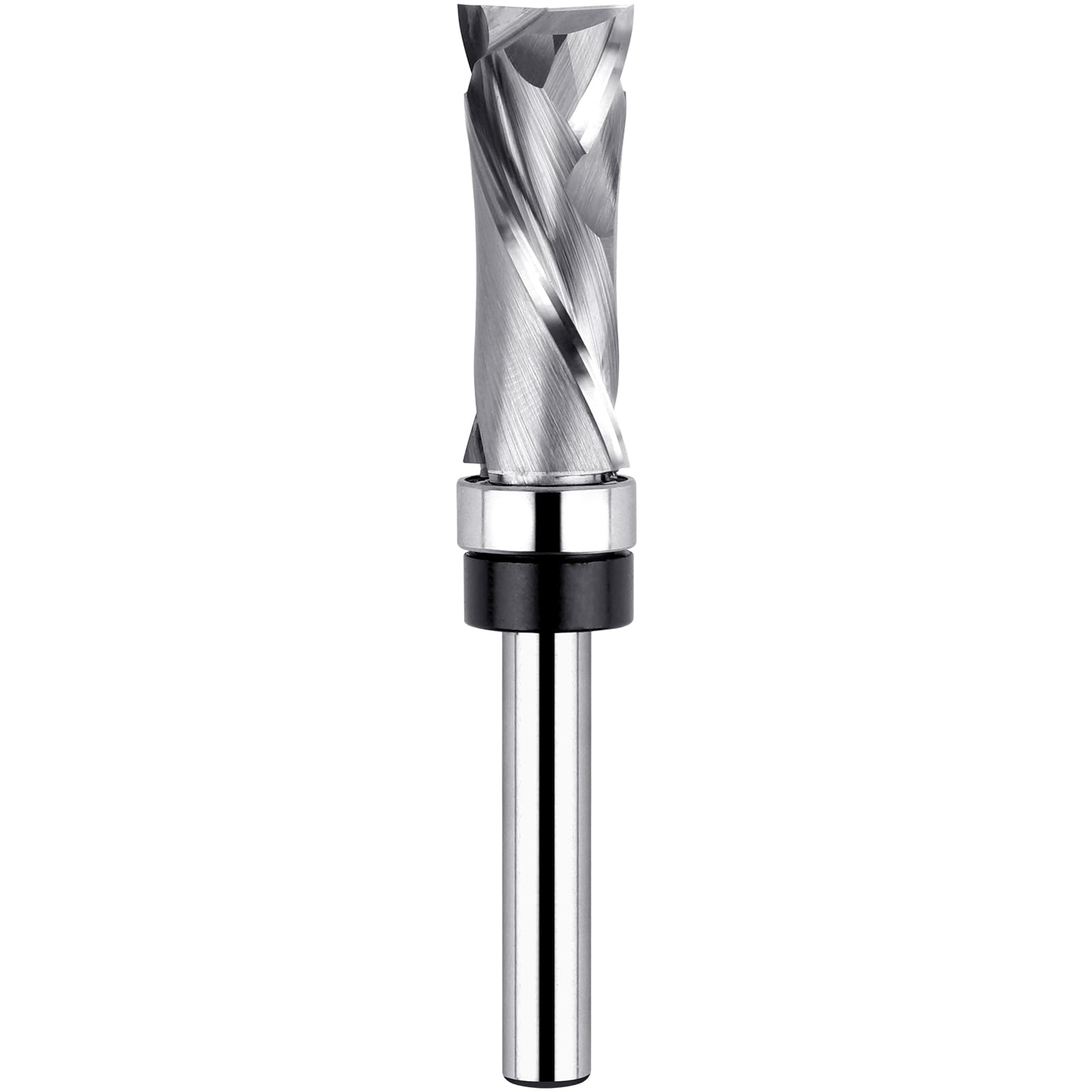

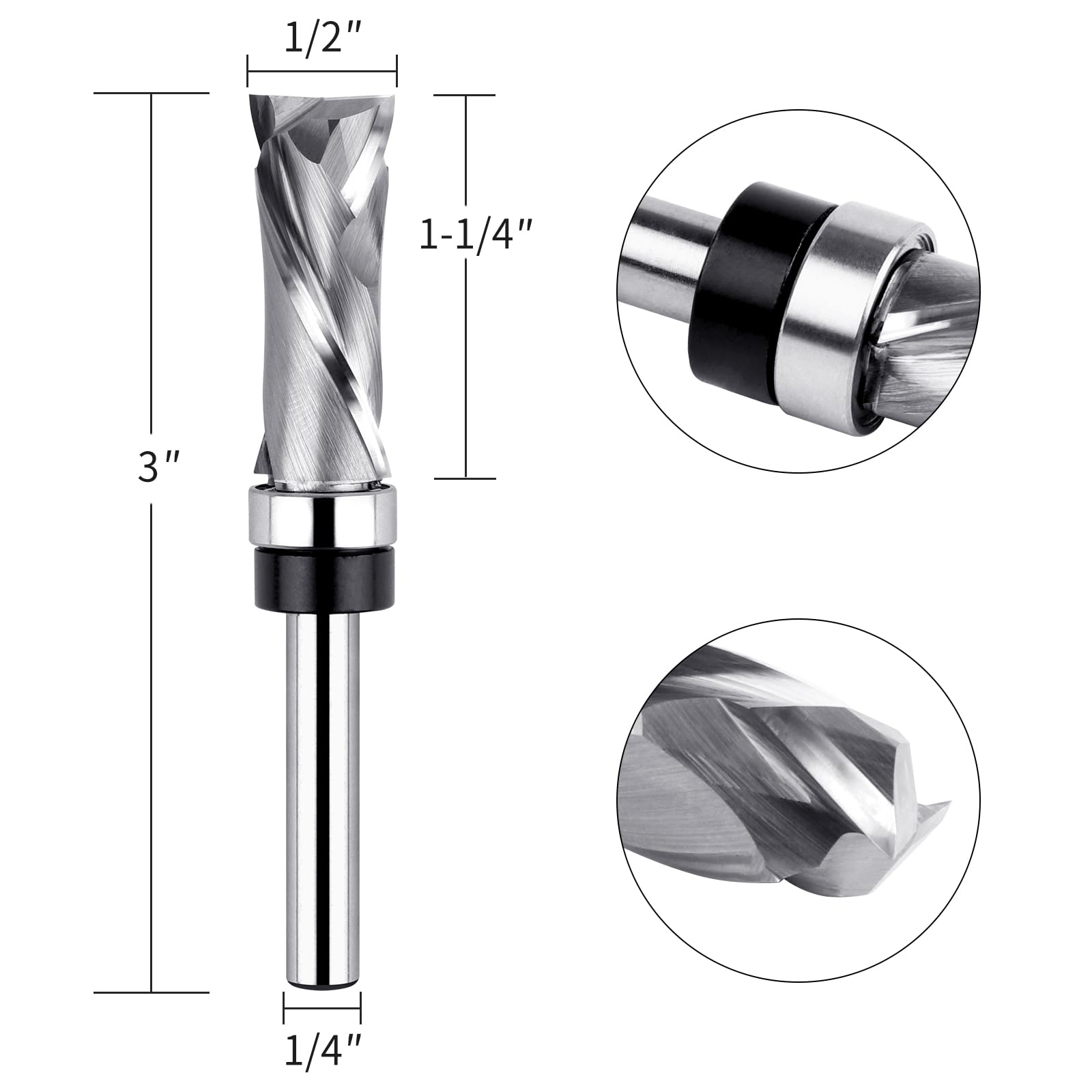

Engineered for precision trimming on CNC wood projects, the EANOSIC extra long compression flush trim router bit combines a long cutting length with a sturdy 1/2 inch diameter and a compact 1/4 inch shank. The top bearing helps guide the bit along templates for consistent results across panels and veneers, while the 1-1/4 inch cutting length enables deeper profiles without frequent bit changes.

Key benefits at a glance

• Large milling surface for efficient passes compared to smaller diameters, reducing cycle times.
• Top bearing adds accuracy when navigating edges and templates.

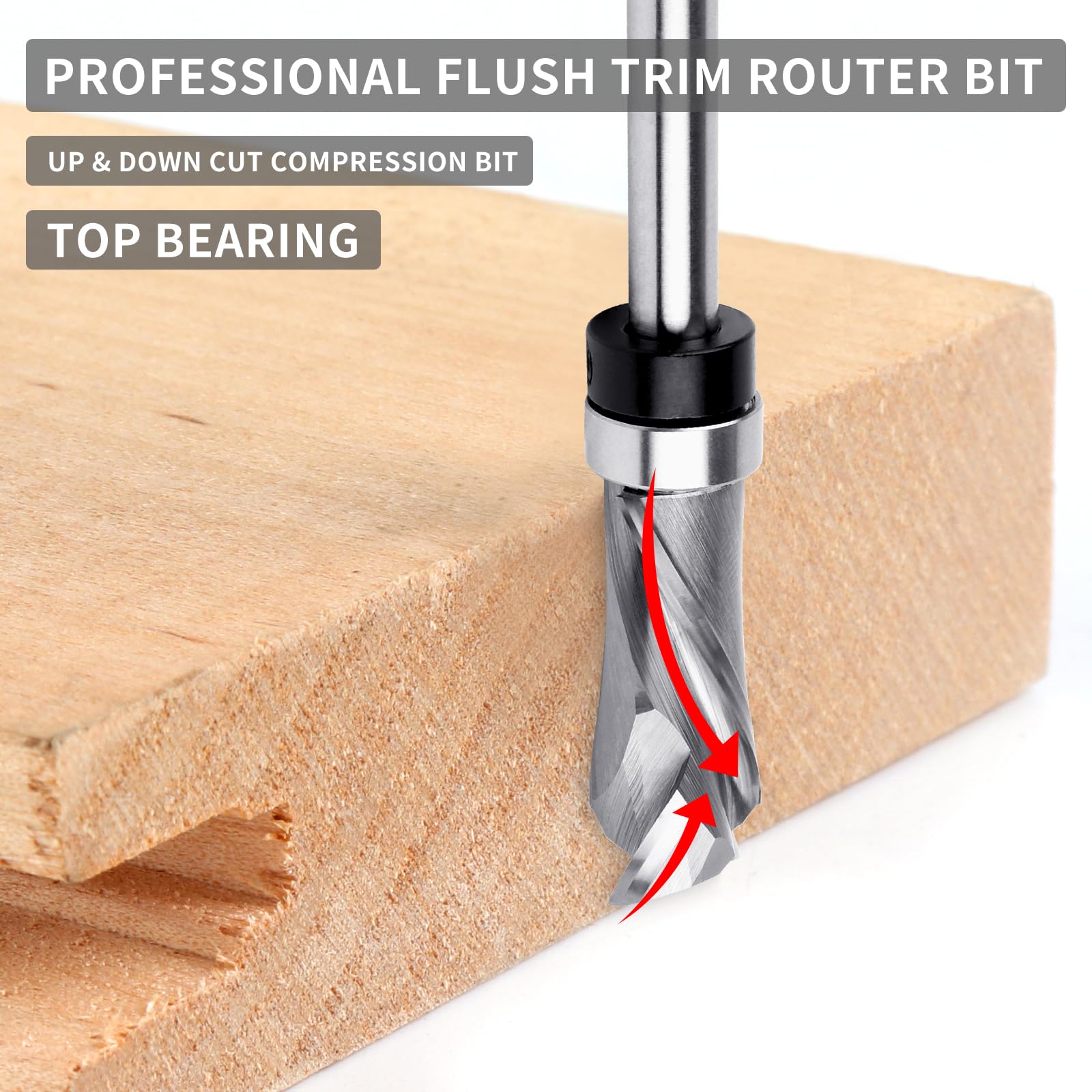

• Compression spiral pattern carries chips upward and downward, keeping both faces cleaner.
• Industrial quality steel shank and tungsten carbide cutter deliver durability for demanding jobs.

How it improves finish and workflow

The unique compression spiral draws material from the cut, producing a smoother edge and helping minimize post-processing. In practice, users may experience less sanding and quicker turnaround on trimmed edges and template routing.

• Surfaces emerge with a high-quality finish under proper feeds and speeds, especially on hardwoods and veneers.

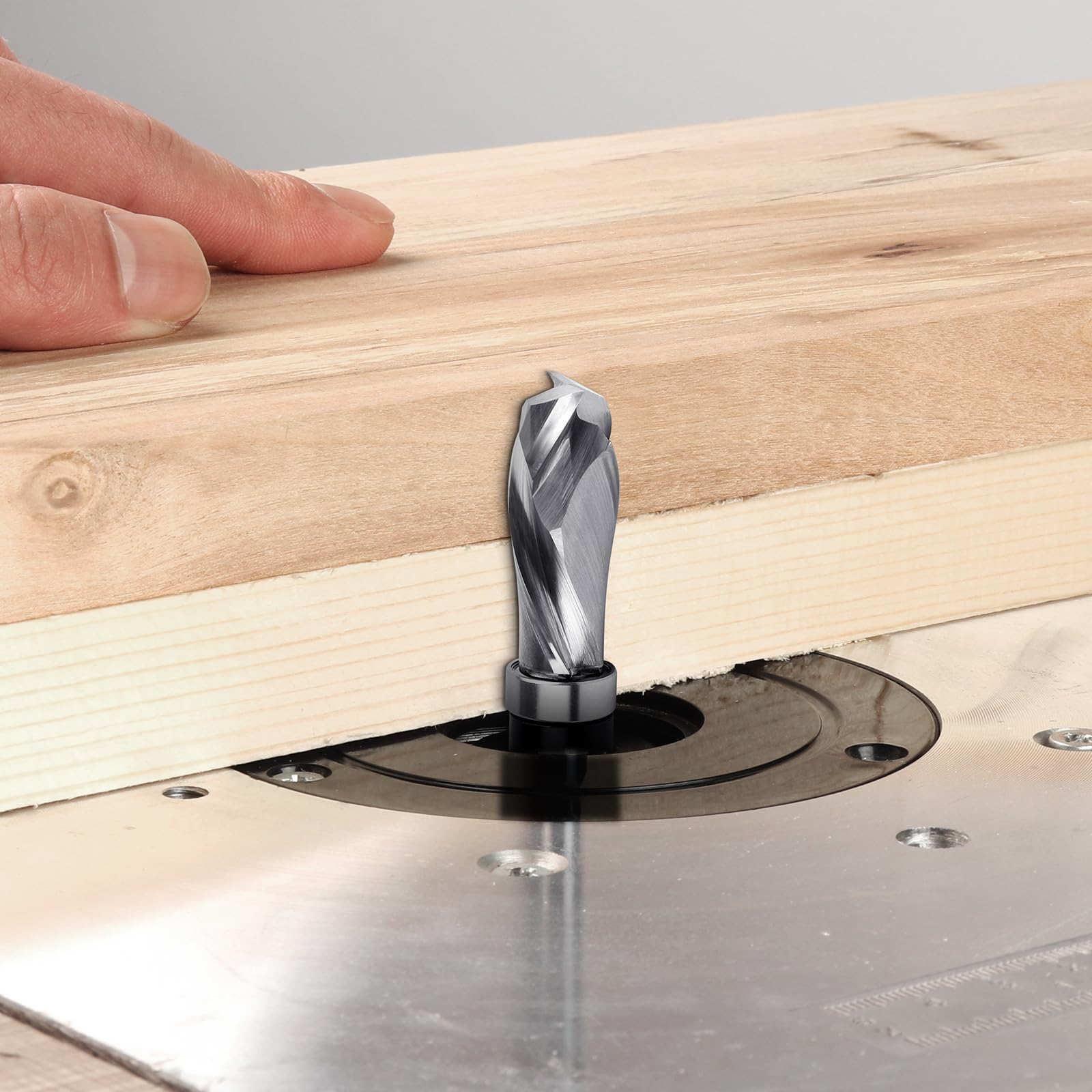

• Dust evacuation from both directions reduces clogging and improves visibility during routing.

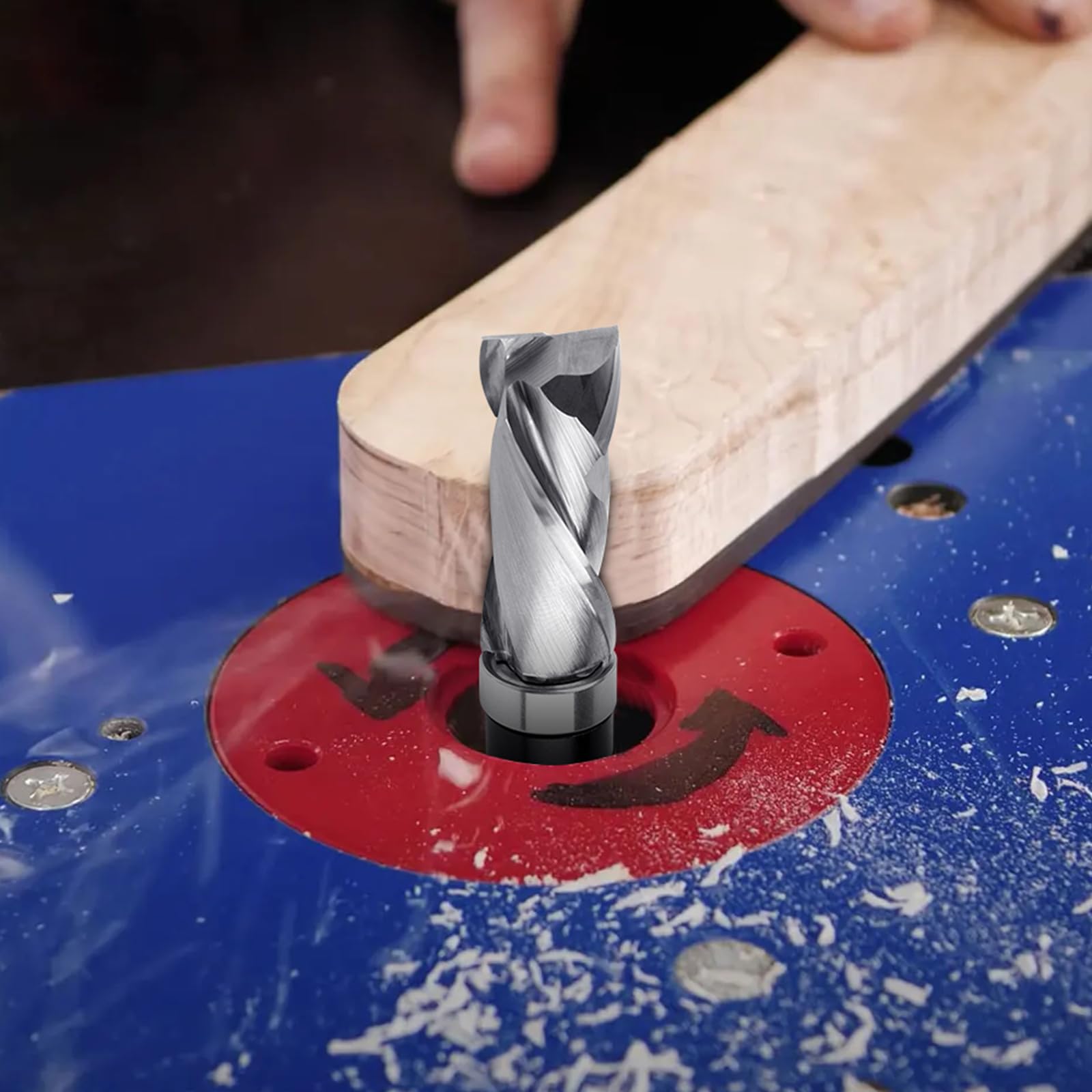

Durability you can rely on

The bit uses an industrial-strength steel shank and a solid tungsten carbide cutter, chosen for hardness and wear resistance. Expect longer tool life in repetitive trimming, edge routing, and template work.

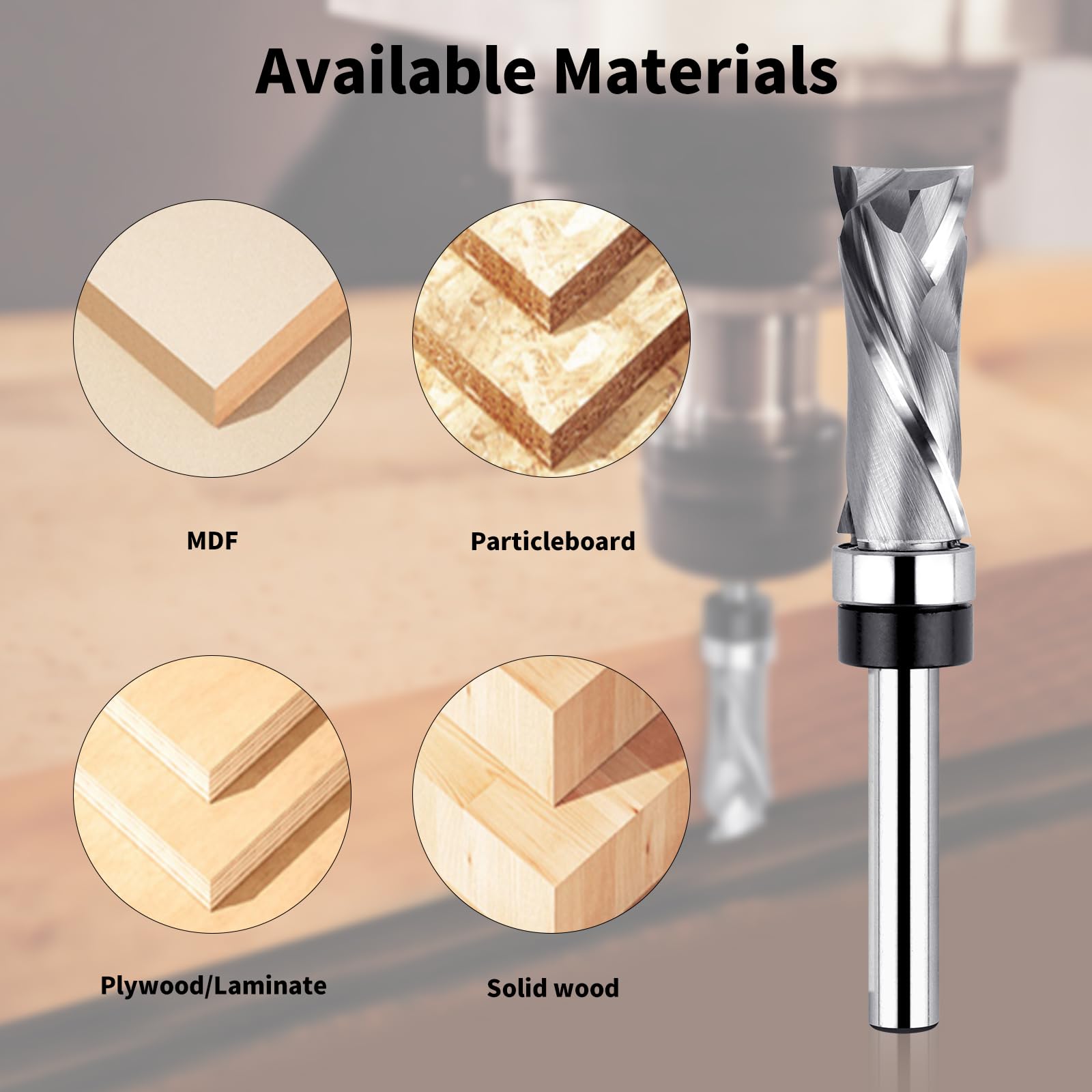

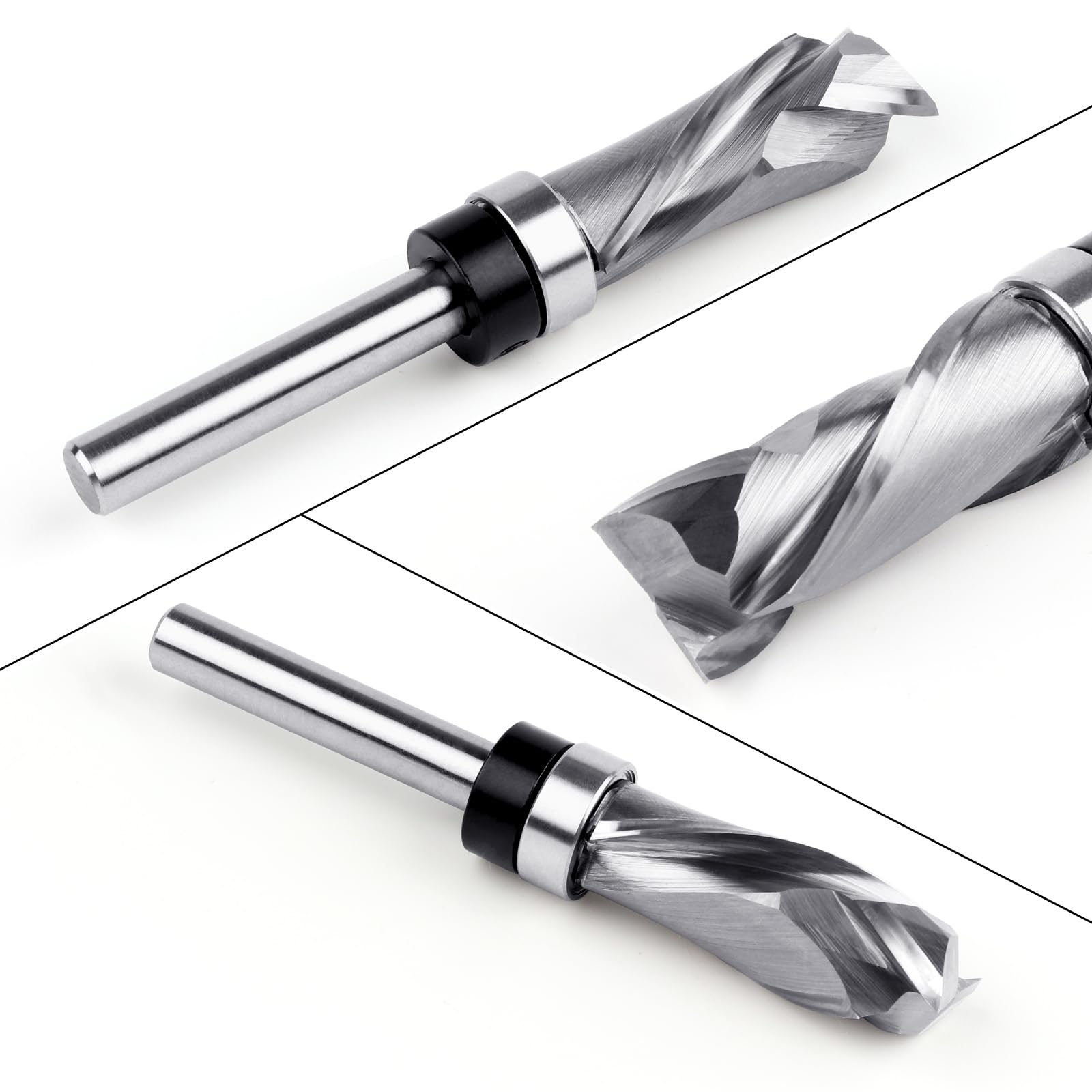

Versatile applications

Use this bit for edge trimming, flush trimming with templates, and grooving or slotting. It excels in CNC woodworking when precision aligns with template paths and flush trimming tasks on panels and doors.

Tips for best results

• Align the workpiece securely and feed steadily along the template to maximize edge quality.
• Keep the bit sharp and maintain proper clearance to prevent burning or tear-out.
• Match feed rate to wood type and thickness to leverage the compression pattern effectively.
