Dreyoo 24V Fan Relay 90-980 | UL-Certified Isolation Relay for HVAC Systems

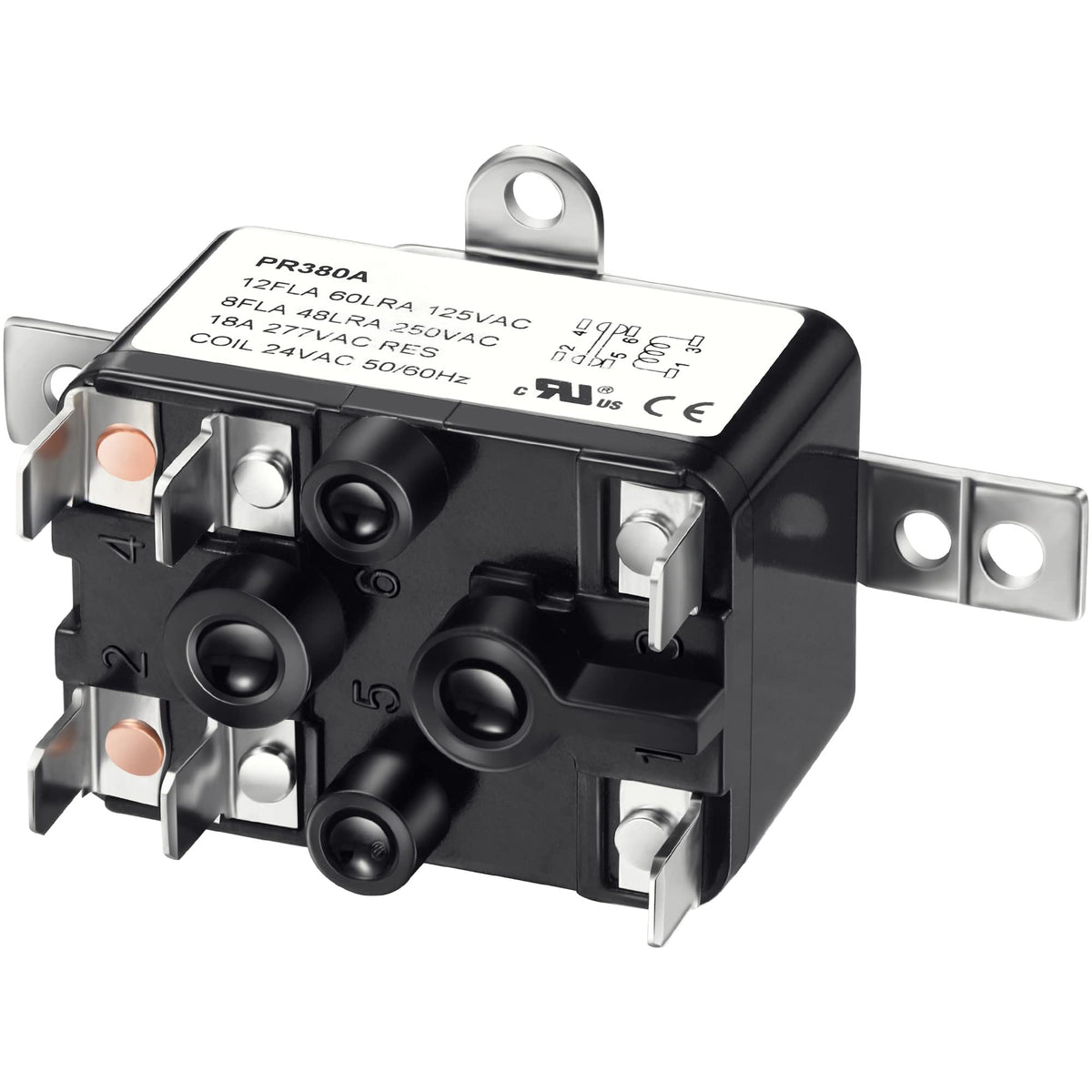

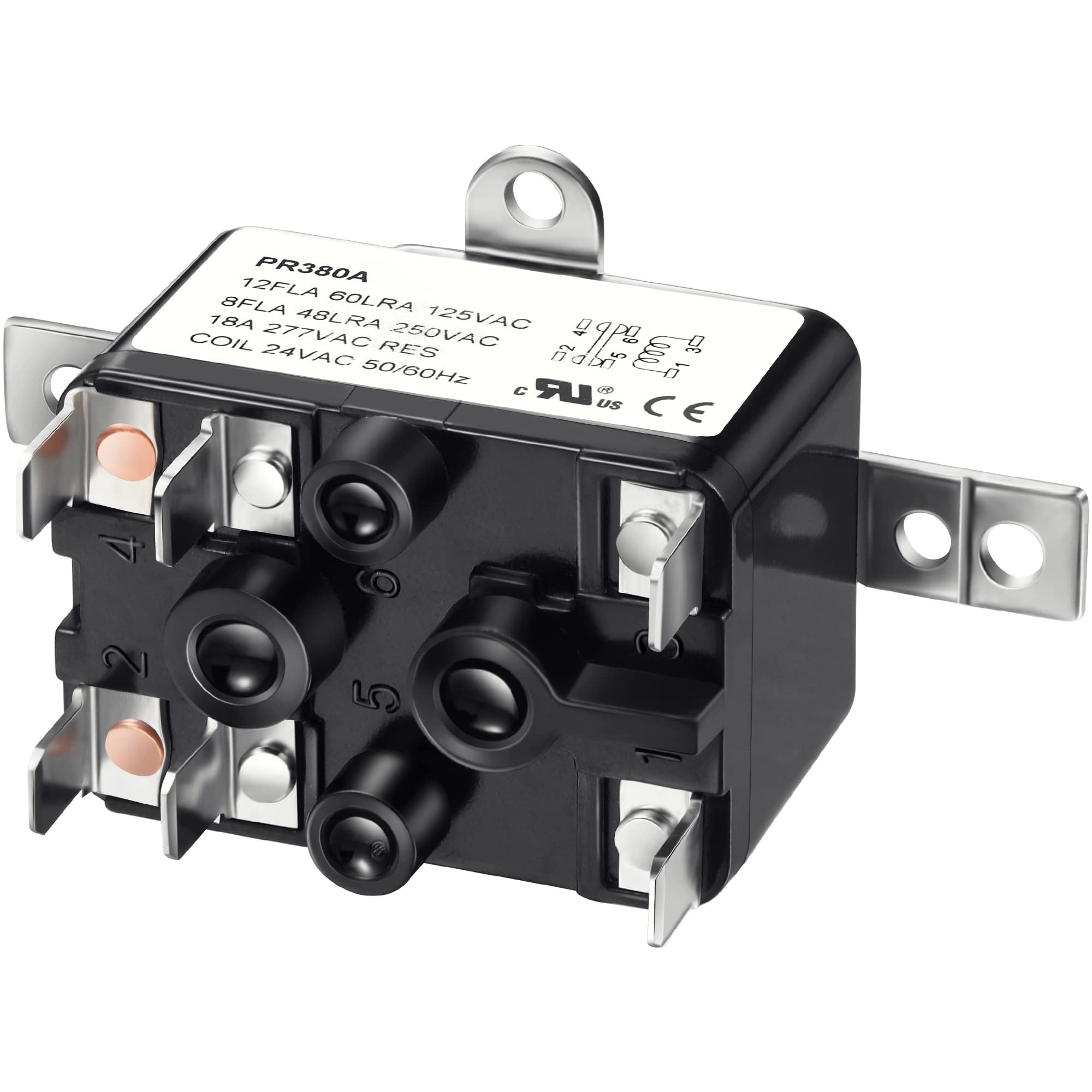

Meet the Dreyoo 24V Fan Relay

In residential and light commercial spaces, dependable control of fans, furnaces, and related equipment matters. The Dreyoo 24V Fan Relay supports 90-980 type operation with a 24VAC control signal, delivering reliable switching for everyday HVAC sequences. This compact unit acts as a robust switch that protects circuits while enabling your blower, humidifier, heat sequencer, or pump-start component to respond promptly to thermostat or control-board commands.

Designed with practical use in mind, the relay blends a compact footprint with a lightweight profile, making it easy to fit into crowded panels or tight enclosures. A six-terminal hookup and a wiring diagram printed on the body simplify wiring and reduce guesswork during installation. The 1-pole configuration supports straightforward replacement or upgrade of existing relays without overhauling the wiring harness.

Key specifications at a glance

• 90-980 type, 24VAC control
• 12FLA, 1-pole replacement relay

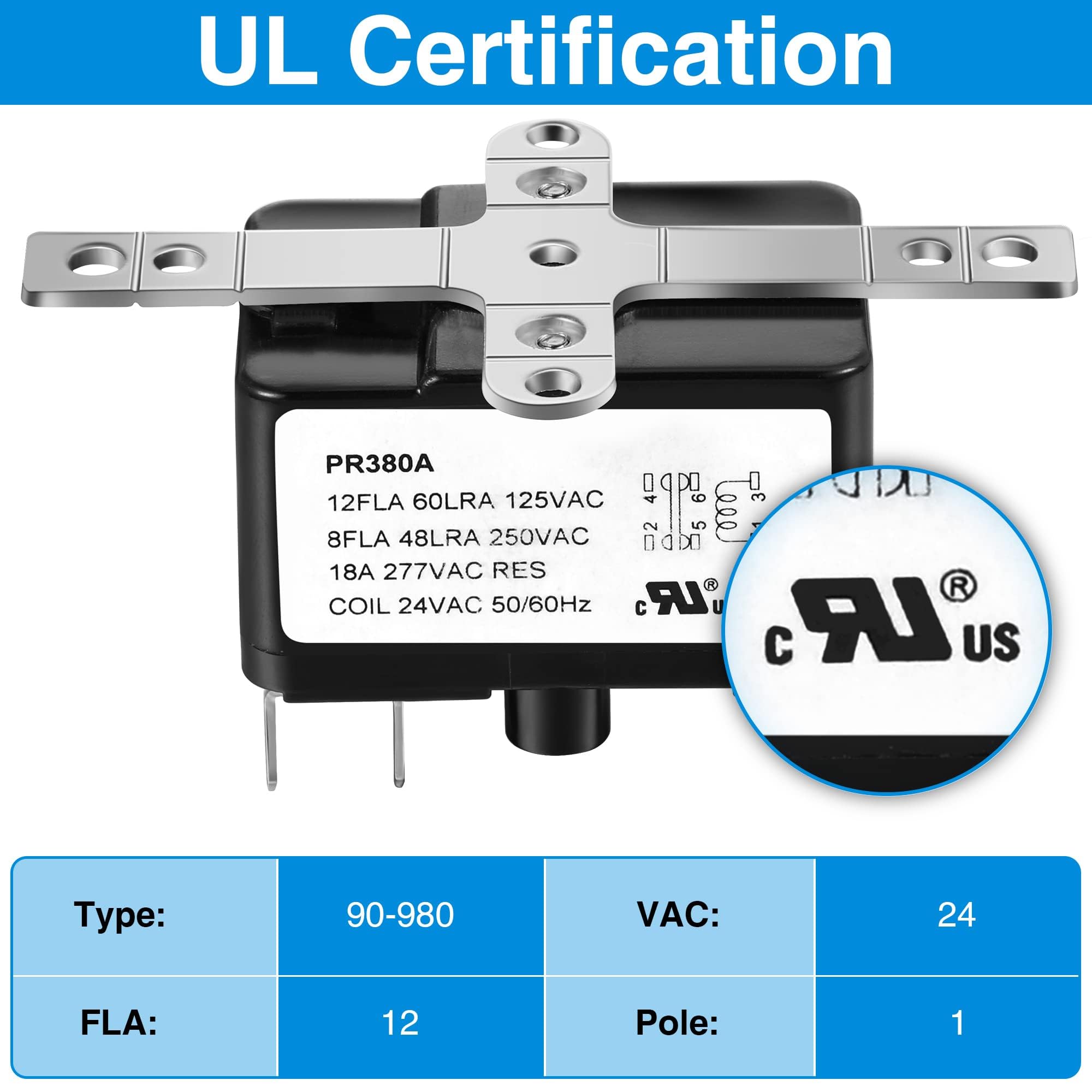

• UL certification for safety and performance
• Compact, lightweight construction for easy panel installation
• Six wiring terminals with a printed wiring diagram for quick setup

These specs reflect the core capabilities you’d expect from a reliable control relay used in HVAC and appliance circuits. The emphasis is on clear wiring, dependable operation, and easy integration into your control strategy.

Durability, safety, and ease of use

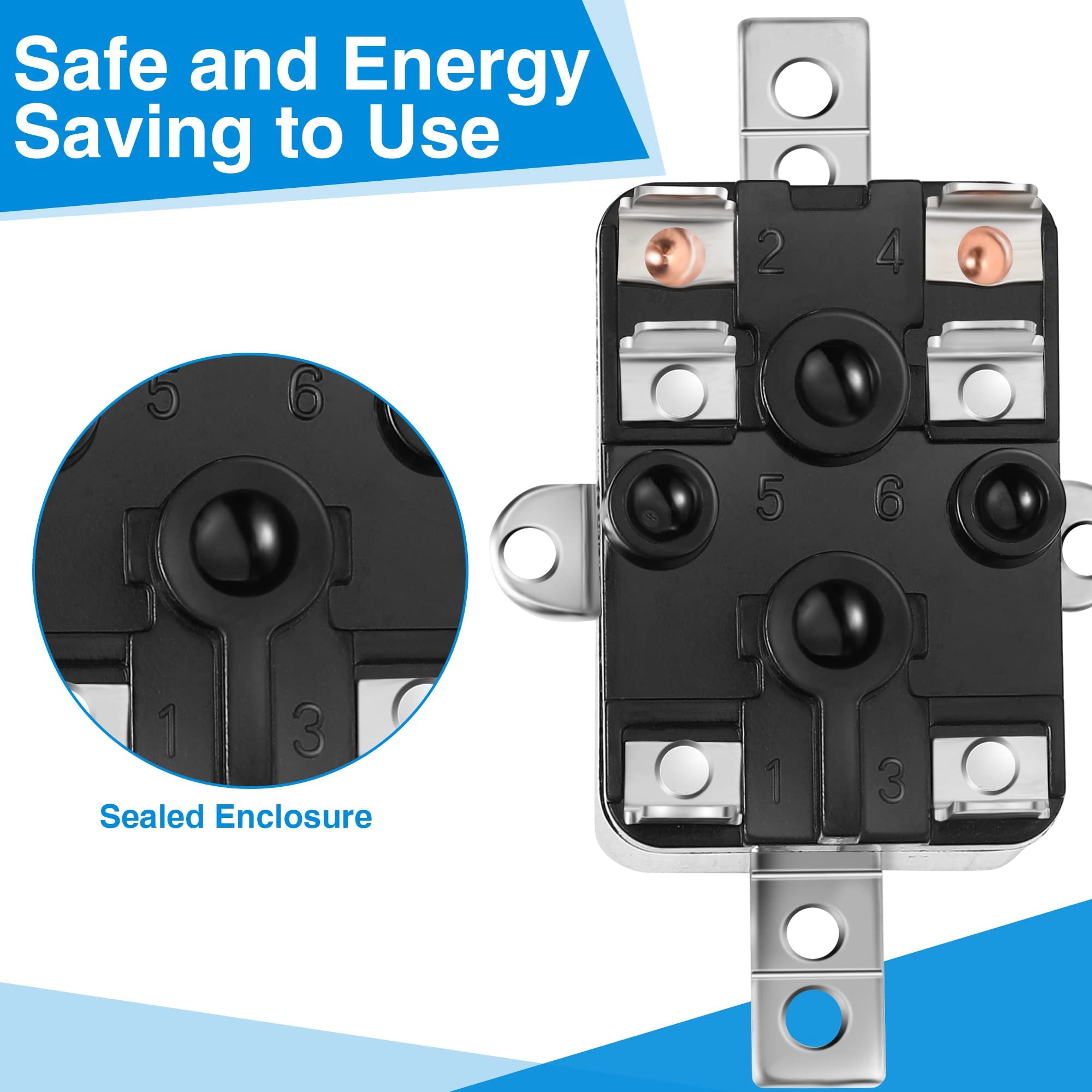

• Heavy-duty performance paired with waterproof characteristics for challenging environments

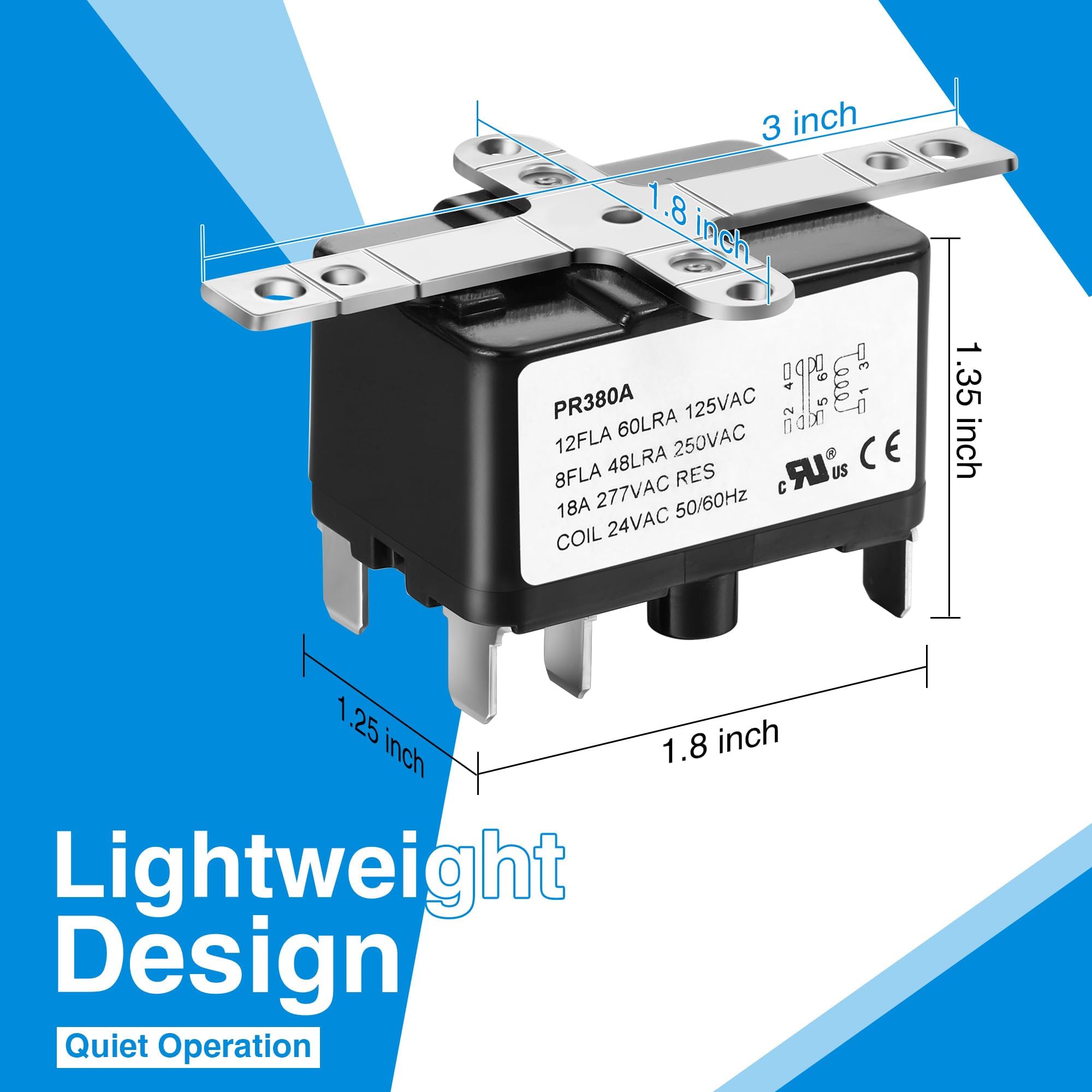

• Compact and lightweight design to minimize space usage and panel noise

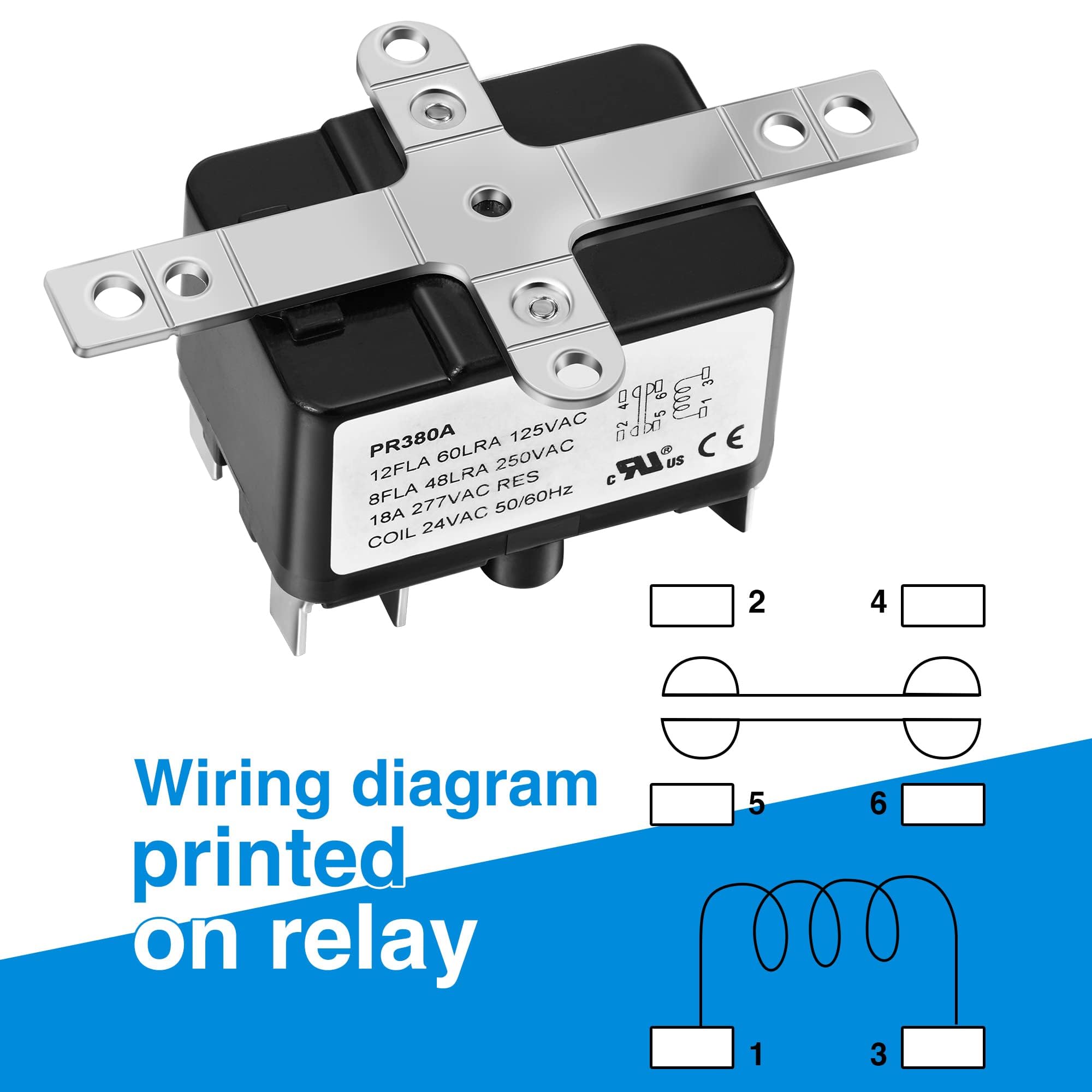

• Clear, printed wiring diagram directly on the relay for straightforward installation

Wide range of applications

This relay serves as a versatile switch solution for various systems. It is designed to work with Goodman blowers, HVAC and air conditioning units, heating equipment, appliances, fan control circuits, gas furnaces, and pump-start configurations. It enables you to upgrade older relays with a robust option that fits a variety of control scenarios.

Real-world use cases and installation tips

In daily setups, you might use this relay to sequence a furnace blower, control a humidifier in a central system, or switch a pump-start circuit. It supports integration with Goodman blower assemblies, HVAC systems, air conditioners, and other compatible loads. For installation, follow the printed wiring diagram, verify the six terminals are correctly wired, and secure the relay in a clean, dry panel. With proper wiring, you can achieve orderly control and easier maintenance.

Note: Benefits described here reflect the listed features and typical use cases. Actual performance depends on your specific equipment, wiring accuracy, and installation conditions.
