DieseRC DC 4-Channel Wireless Remote Switch | 6-30V DC, 10A, 433MHz

Versatile wireless control for four DC devices

The DieseRC DC 4CH Wireless Remote Switch is a compact, DC-powered solution designed to simplify remote control for lights, motors, and more. It operates from a DC supply between 6 and 30 volts and handles up to 10 amps per channel, offering a flexible foundation for homes, workshops, and small businesses. Using a 433 MHz RF link with EV1527 learning code, it delivers reliable performance with a practical level of security for daily tasks. Two transmitters are included, letting you start controlling multiple devices right away.

Four independent relays give you separate control channels, so you can assign different devices to each output while staying within a single receiver. The unit supports three operating modes—momentary, toggle, and latched—allowing you to tailor behavior to your exact needs. Setup and reprogramming are straightforward, and the dry contact outputs keep integration simple for a variety of DC-powered loads. This kit is designed to be flexible, scalable, and easy to upgrade as your project evolves.

Key features at a glance

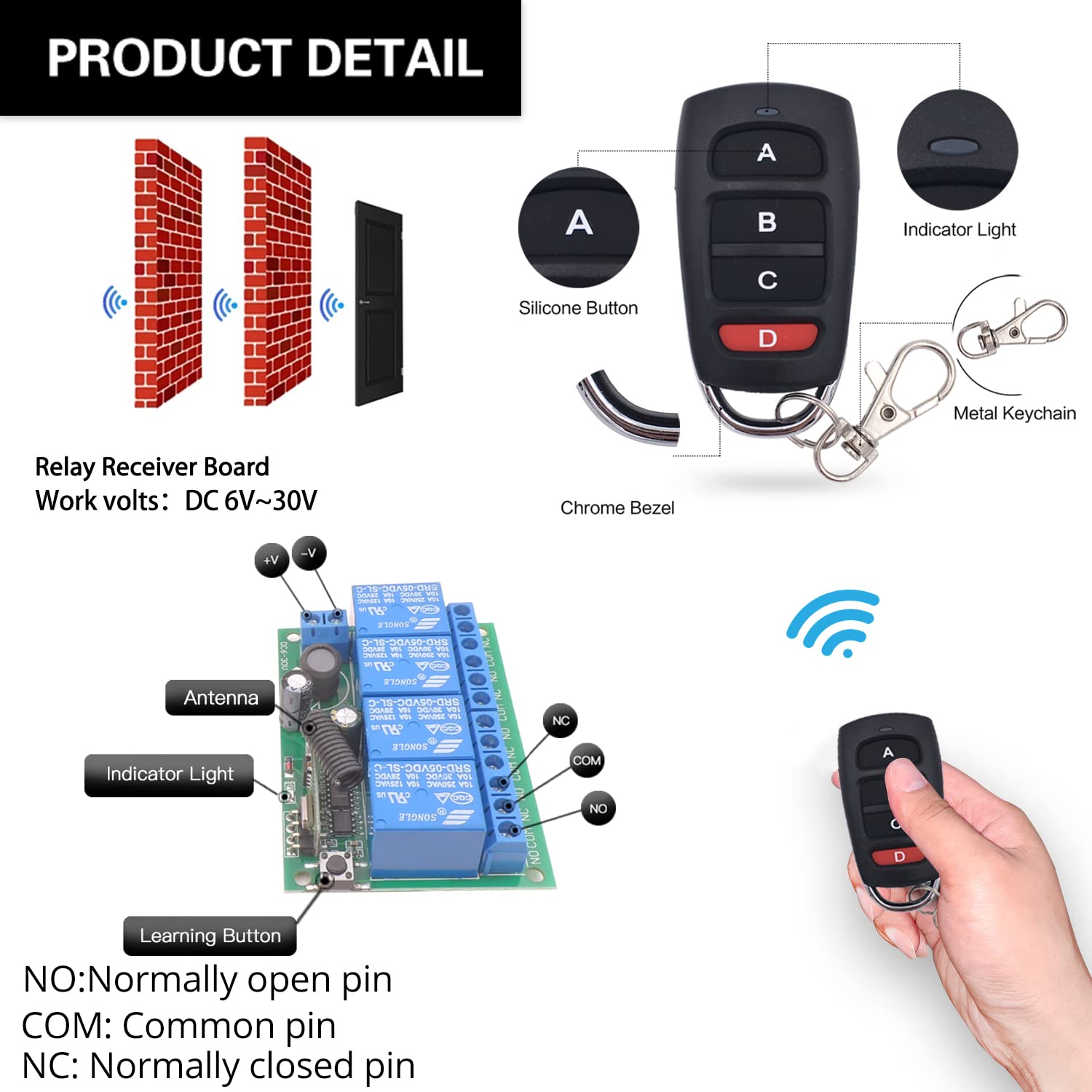

• Four independent relays with normally open, common, and normally closed terminals on each channel
• DC voltage range 6 to 30V; suitable for 12V and 24V systems
• 10A per channel rated relay for higher-power devices
• 433 MHz RF transmission with EV1527 learning code for secure pairing
• Range up to 50 meters in open space; capable of passing through walls and floors

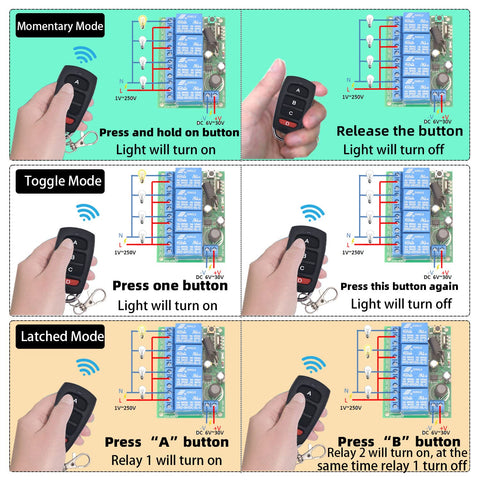

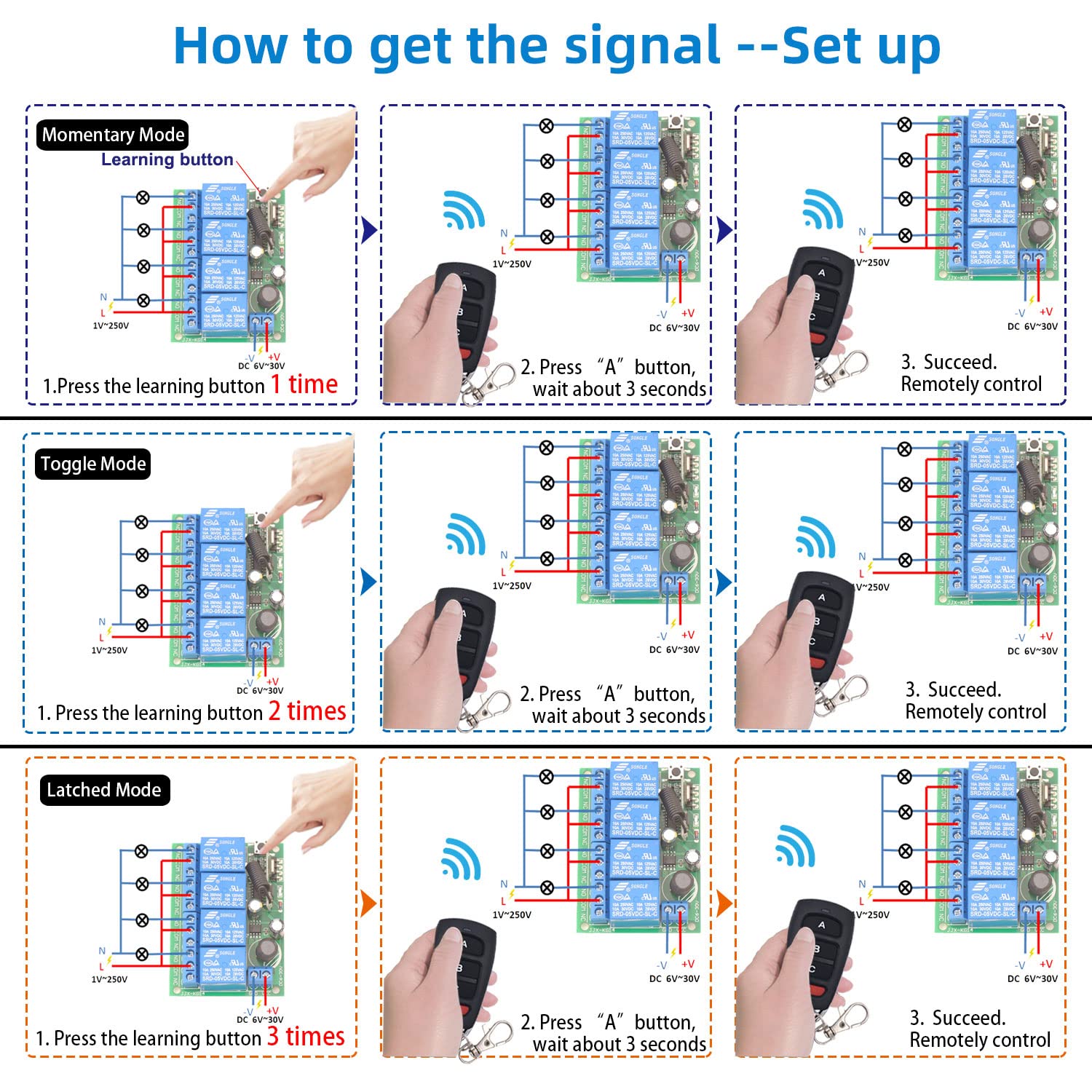

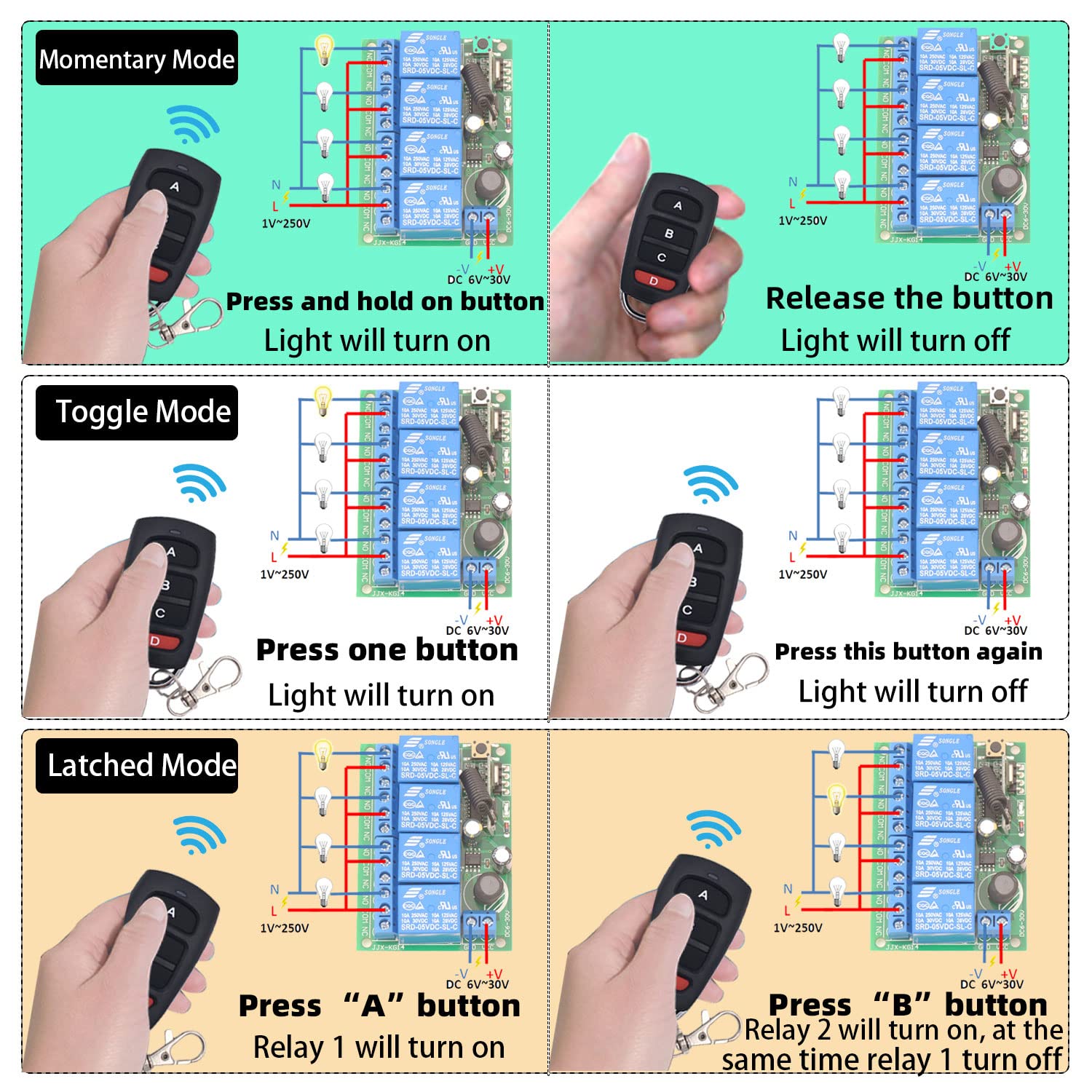

• Three selectable operating modes: momentary, toggle, and latched
• Receiver stores up to about 20 transmitters; a single transmitter can trigger multiple receivers

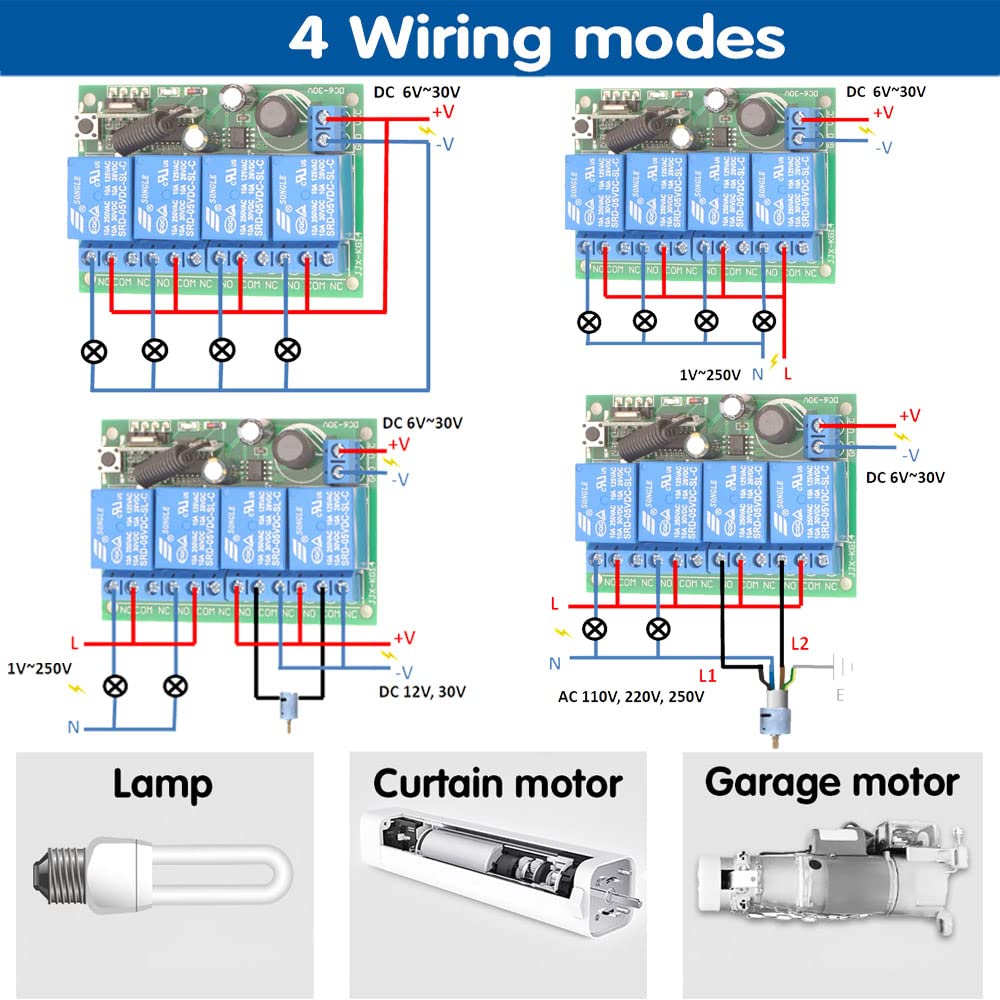

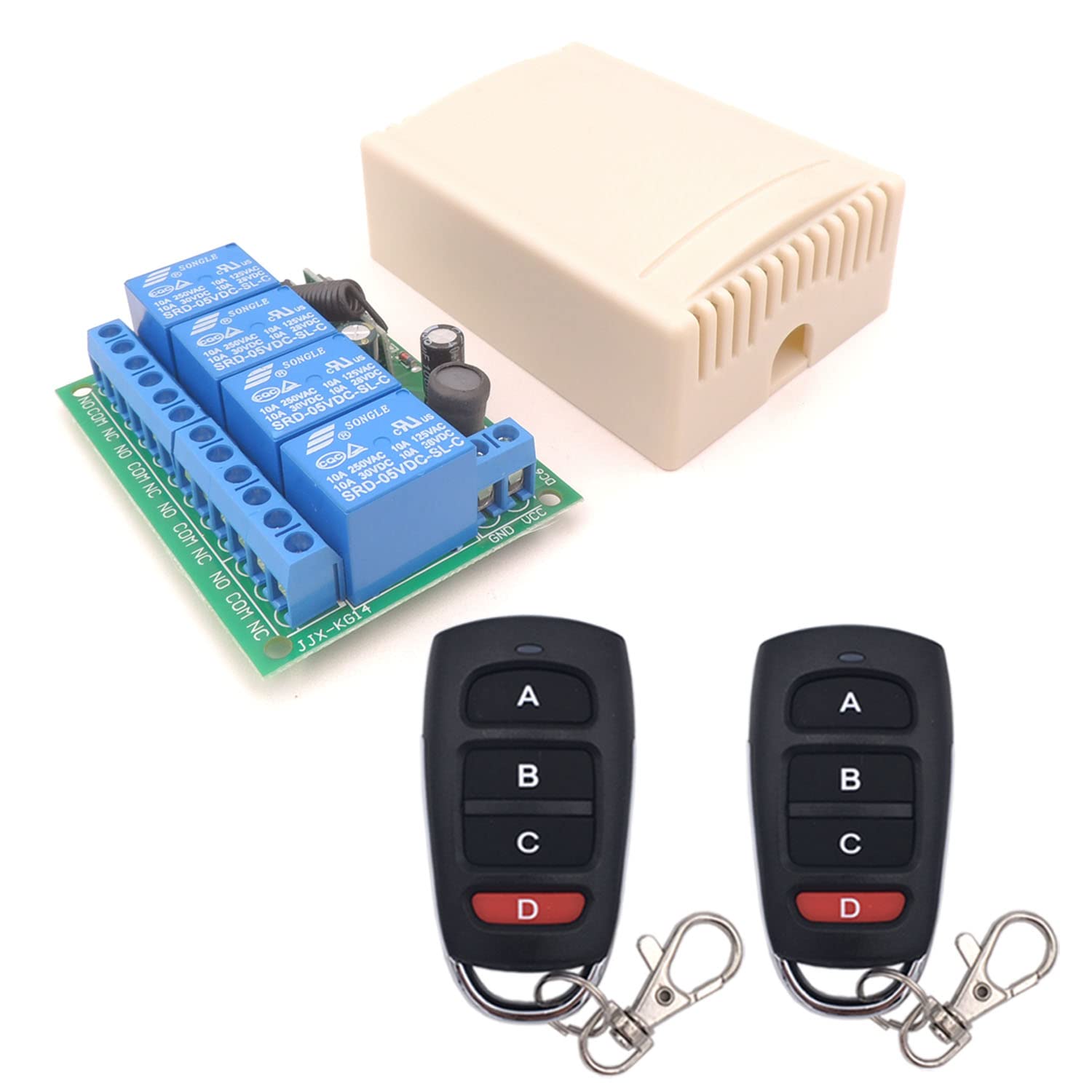

• Includes two transmitters for immediate setup; dry contact outputs simplify integration

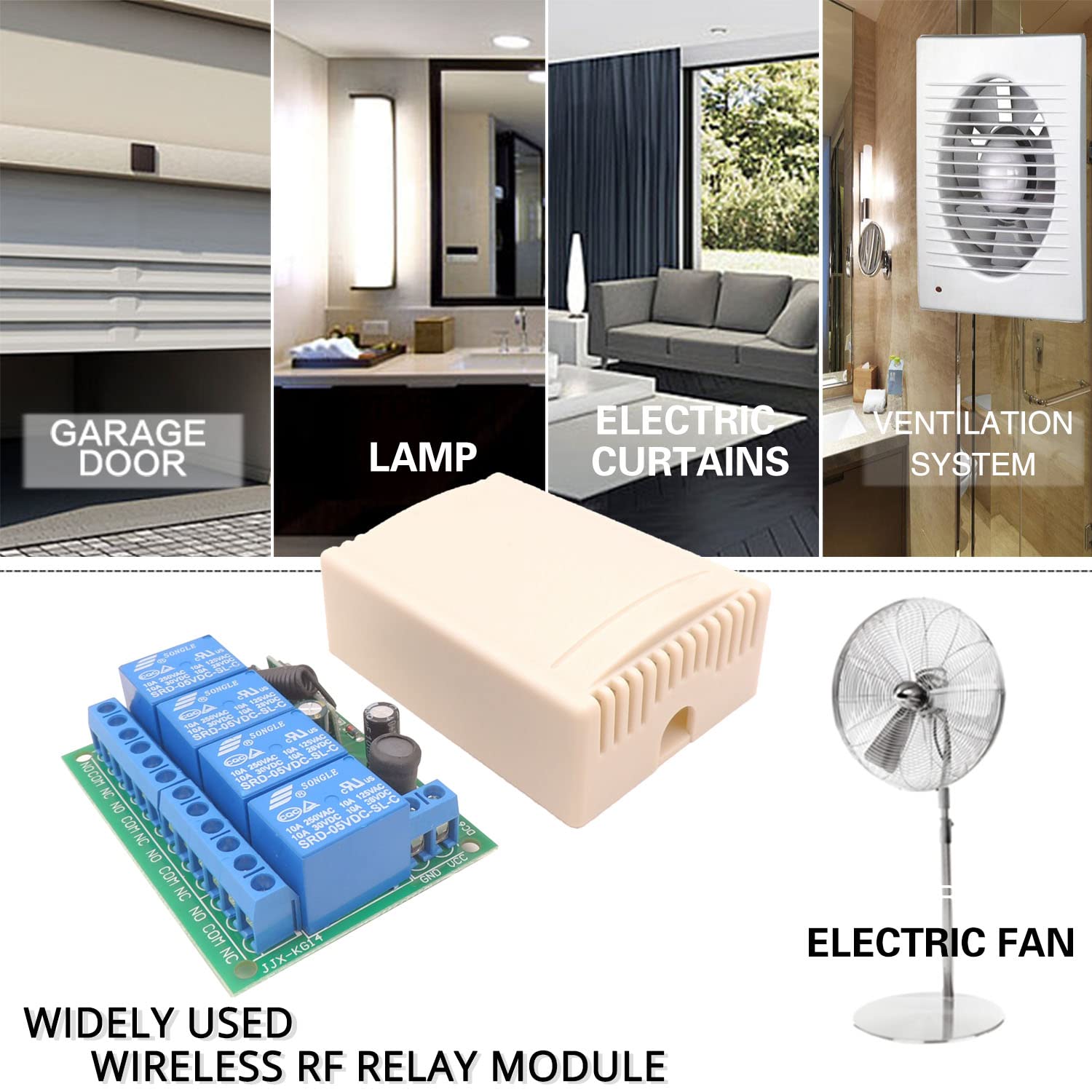

Common applications and practical uses

• Garage doors, electric doors, and motorized openings for added convenience
• Lighting, lamps, and fans for quick, hands-free control
• Shutters, curtains, and ventilation devices to adjust your space on demand
• Labs, workshops, and small offices where remote control supports workflow
• Remote operation across rooms or zones in homes, farms, factories, or retail spaces

This DieseRC kit is designed to offer flexible control without promising guaranteed outcomes. It highlights practical possibilities, letting you decide how best to integrate remote switching into your space.
