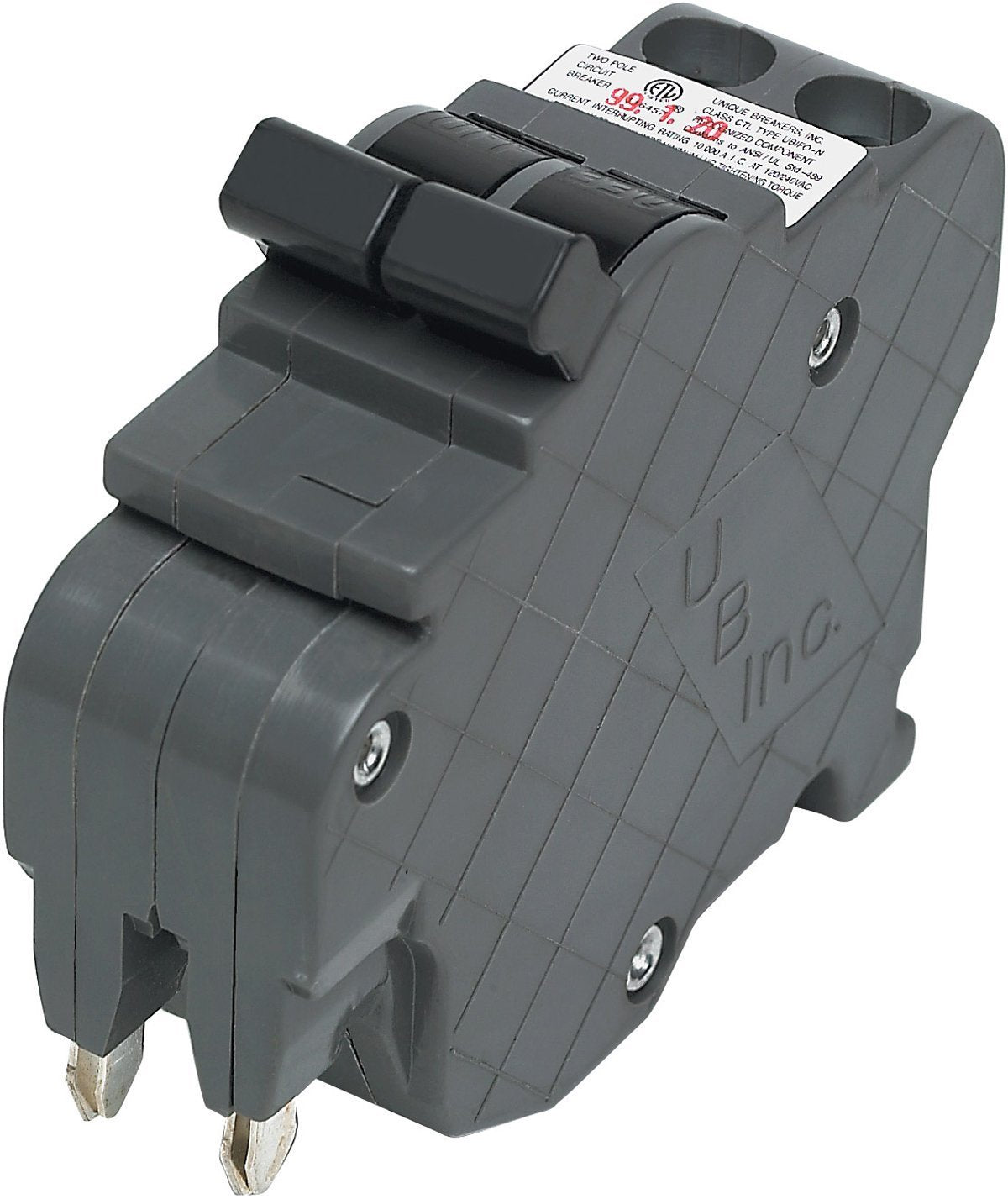

Connecticut Electric UBIF0230N Stab-Lok NC230 Replacement — Two-Pole 30A Thin Series

Overview

The Connecticut Electric UBIF0230N is a modern, plug-in replacement designed for Federal Pacific Stab-Lok NC230 panels. This 30 Amp, two-pole unit is built as a new, safety-listed component for 120/240 volt circuits.

Key specifications

• Replacement Stab-Lok circuit breaker manufactured new by Connecticut Electric
• Designed for Stab-Lok panels
• Intertek ETL Listing to UL 489 for US and Canada
• 10,000 AIC interrupting capacity
• 30 Amp rating
• 120/240 VAC, 2-pole, 1 inch thin body, NC style
• Plug-in type

Typical applications and use cases

In typical residential or light commercial setups, this breaker can support devices and loads within its 13,200 watt ceiling. Common scenarios include hot water heaters, clothes dryers, air conditioners (240 V up to 36,000 BTU), and electric motors (240 V, 1.5 to 3 HP).

• Hot water heaters and dryers can be protected by a single, reliable 30A two-pole breaker
• Air conditioning and heat pump equipment up to 36,000 BTU may benefit from a dedicated 30A protection
• Motors and other 240 V loads can be served with a robust 30A circuit

Important notes and safety

These are intended for use in Stab-Lok panels and should be installed by qualified personnel. The product is new, tested, and listed; never used or refurbished units are recommended. Always verify compatibility with local electrical codes before starting a project.

Additionally, this unit provides a 1 inch thin profile and plug-in format for convenient replacement in compatible panels, along with a 10,000 AIC interrupting rating for enhanced protection. Always follow manufacturer guidelines and local regulations when performing electrical work.

Listing and compliance

ETL listed to UL 489 for the US and Canada, satisfying safety and performance standards for molded-case circuit breakers in compatible Stab-Lok systems.
