CHTAIXI DC MCB 2P C100 – 500V 100A 35mm DIN Rail DC Isolator for Solar PV Systems

Reliable DC protection for solar and other DC systems

The CHTAIXI DC MCB 2P C100 is a compact two-pole circuit breaker designed for DC power paths up to 500V and 100A. It blends fast protection with reliable isolation, helping to reduce risk in solar PV installations and other DC networks. With a magnetic arc-extinguishing system and durable silver alloy contacts, it aims for steady performance in busy control panels and enclosed spaces. The flame-retardant shell and clear color indicator support quick status checks at a glance, aiding routine maintenance and safer operation.

The unit mounts on a 35mm DIN rail, enabling tidy panel layouts in solar inverters, battery rooms, and DC distribution cupboards. Its robust construction, combined with a practical visual indicator, offers a calm, predictable user experience under typical conditions and during fault events. This combination can be particularly helpful when coordinating protective devices across a DC power chain, from generation to distribution.

Technical at a glance

• Voltage rating: up to 500V DC
• Current rating: 100A, 2-pole configuration

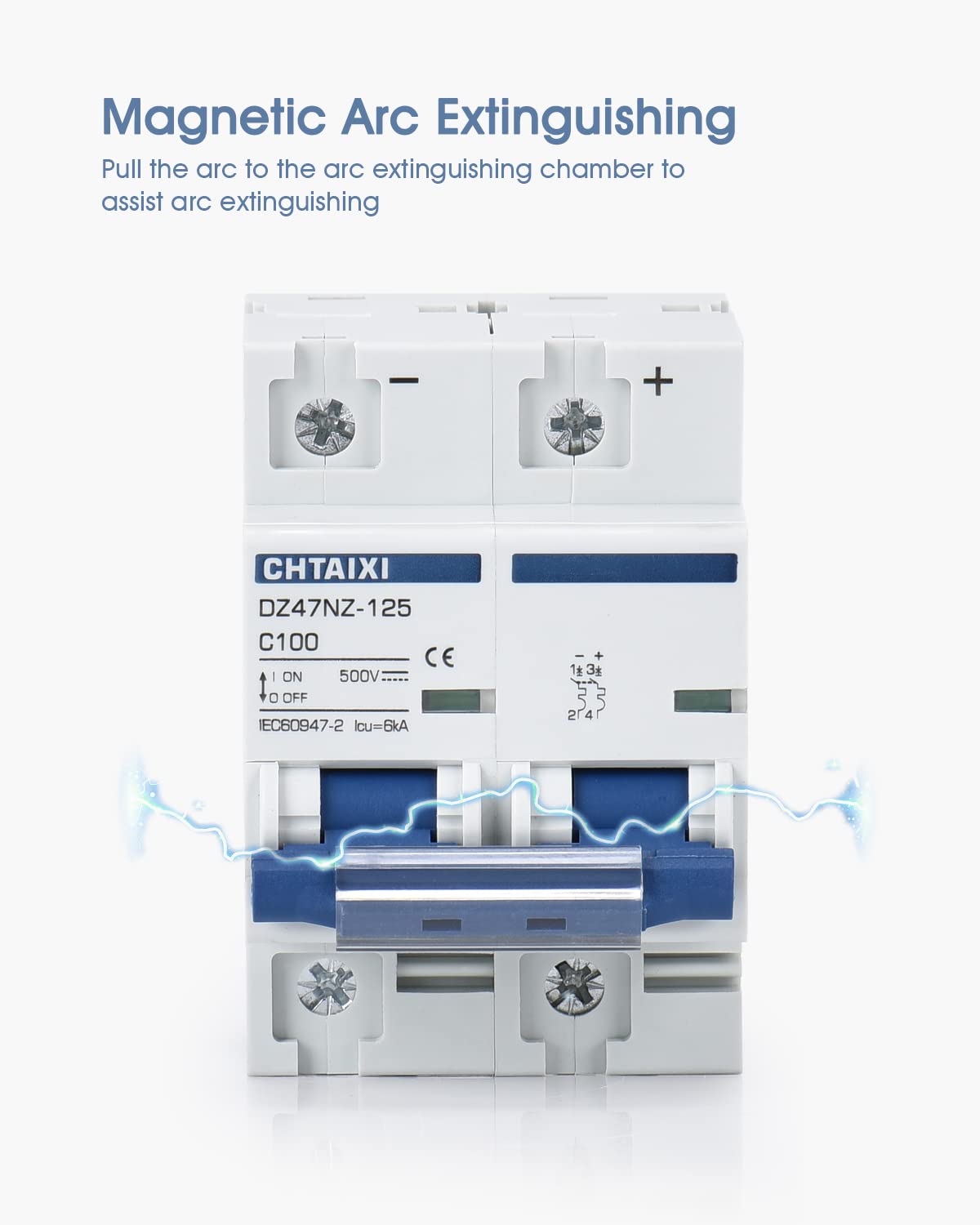

• Arc management: magnetic system aids arc extinguishing

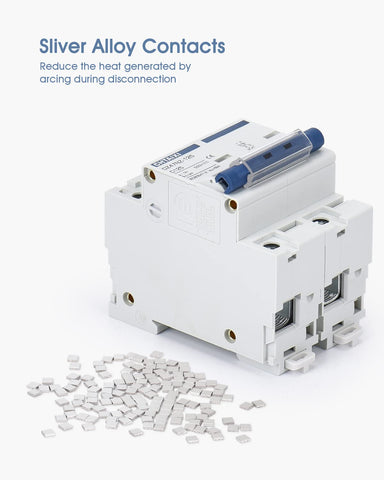

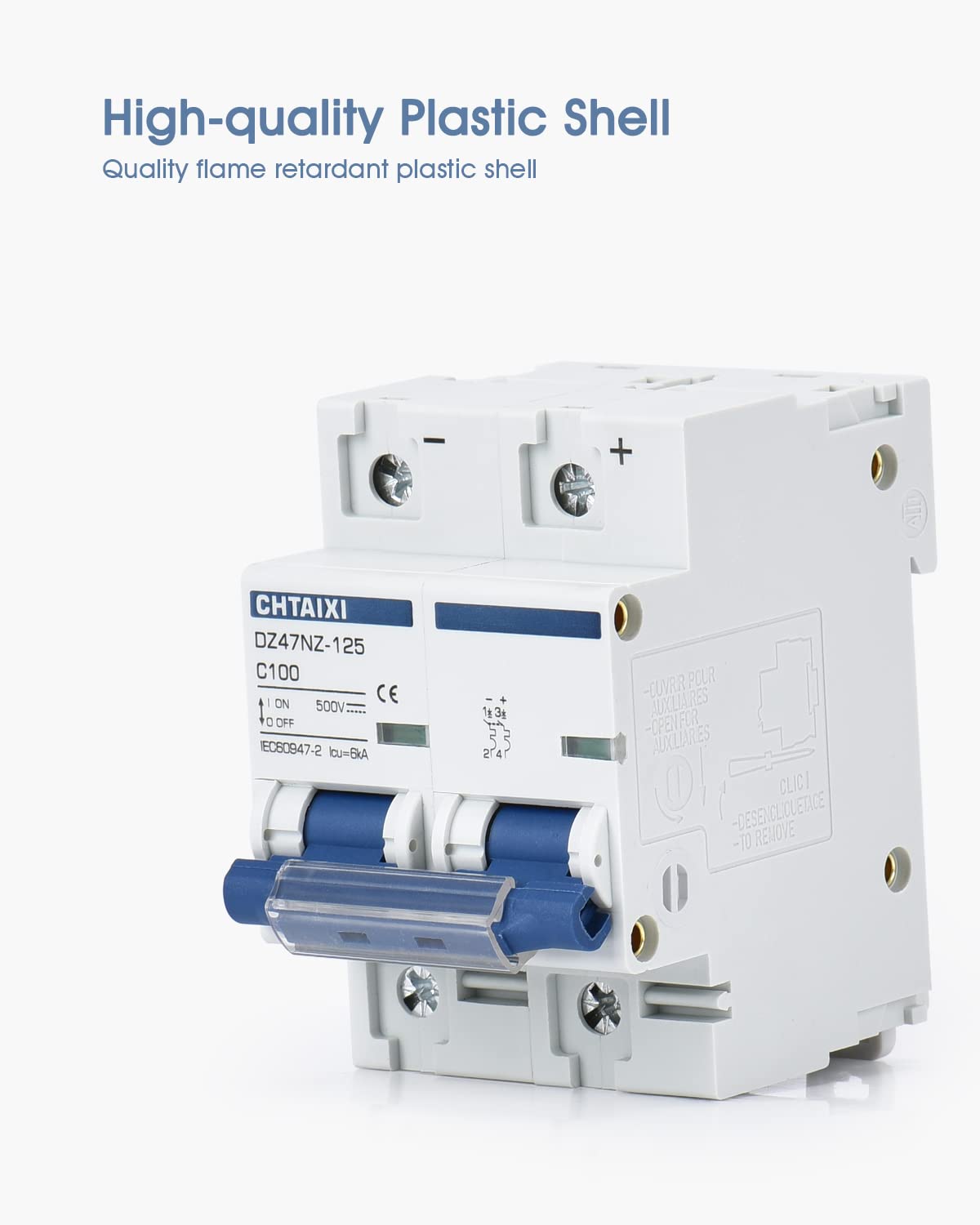

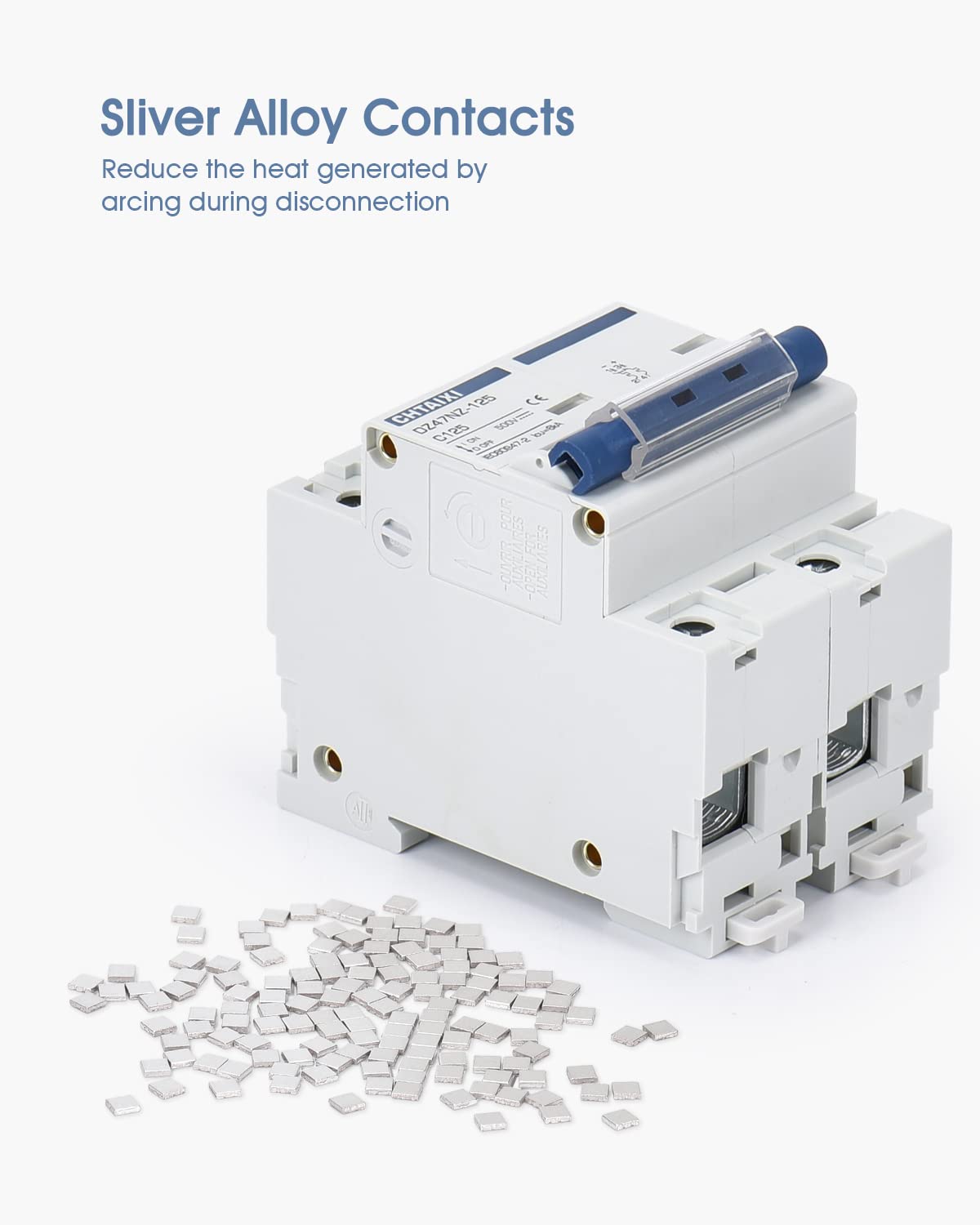

• Construction: silver alloy contacts, flame-retardant shell, color status indicator

Key benefits in practice

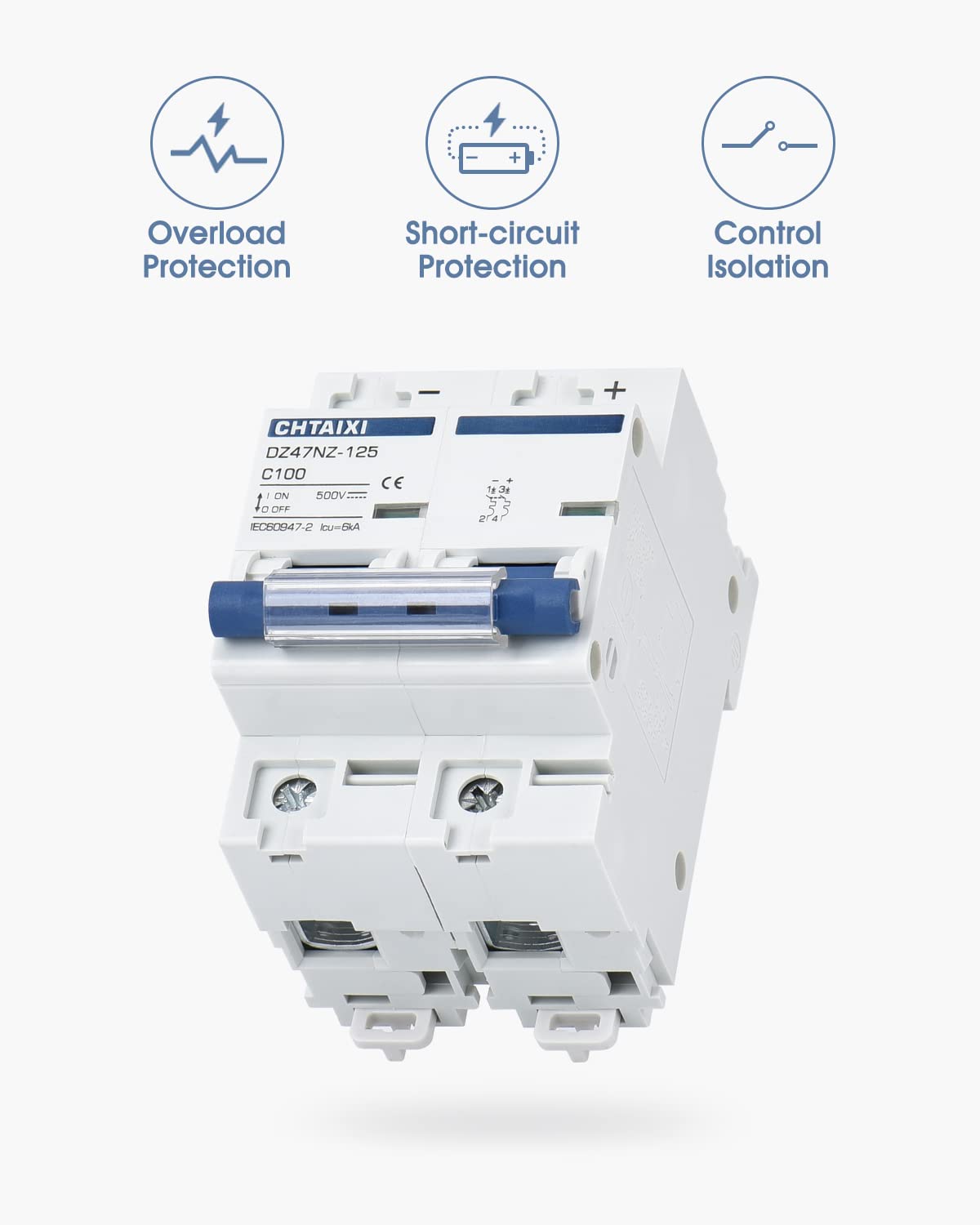

• Protects DC distribution facilities from overload and short circuits
• Supports safe isolation for maintenance or fault indication
• Durable build offering reliable operation in demanding environments
• Versatile for solar PV setups and other DC systems needing dependable protection

Installation and compatibility

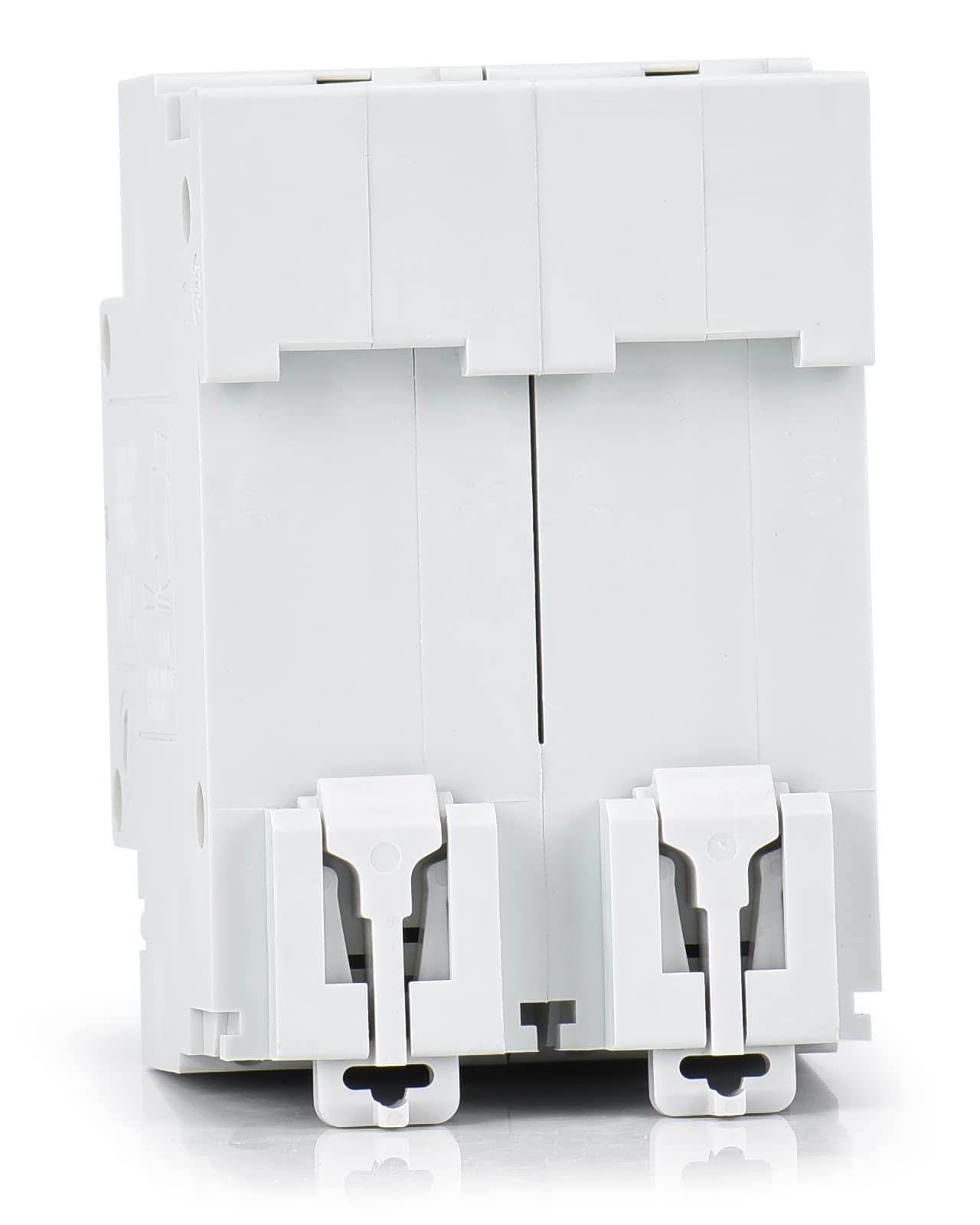

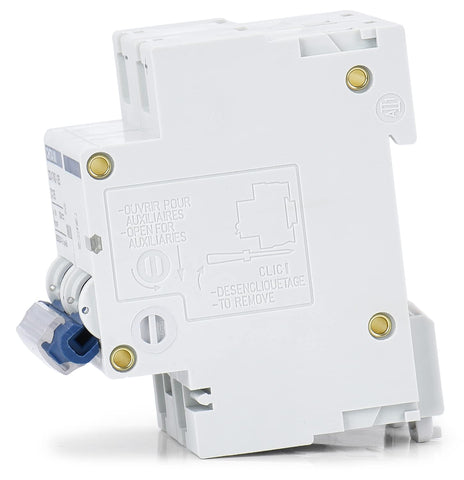

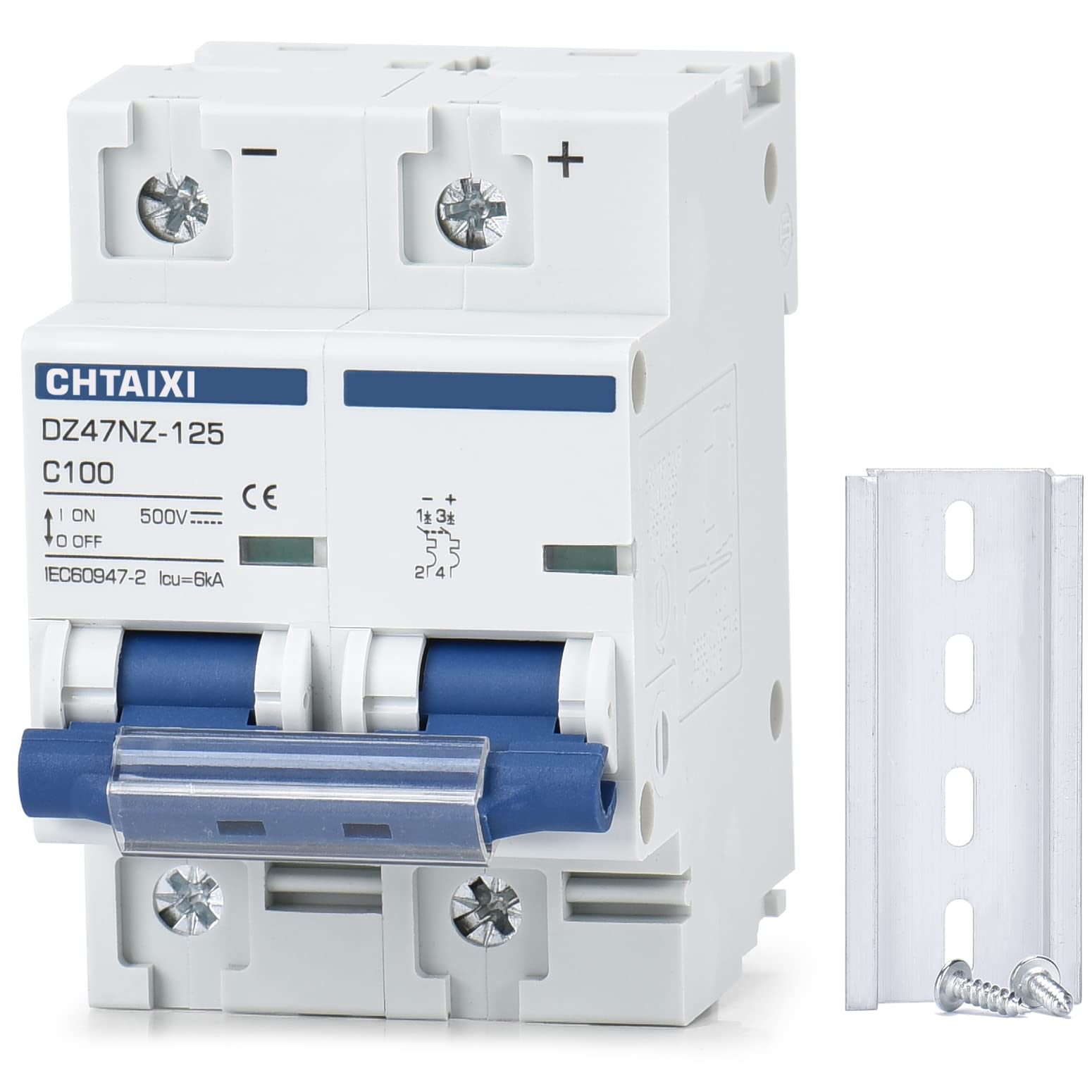

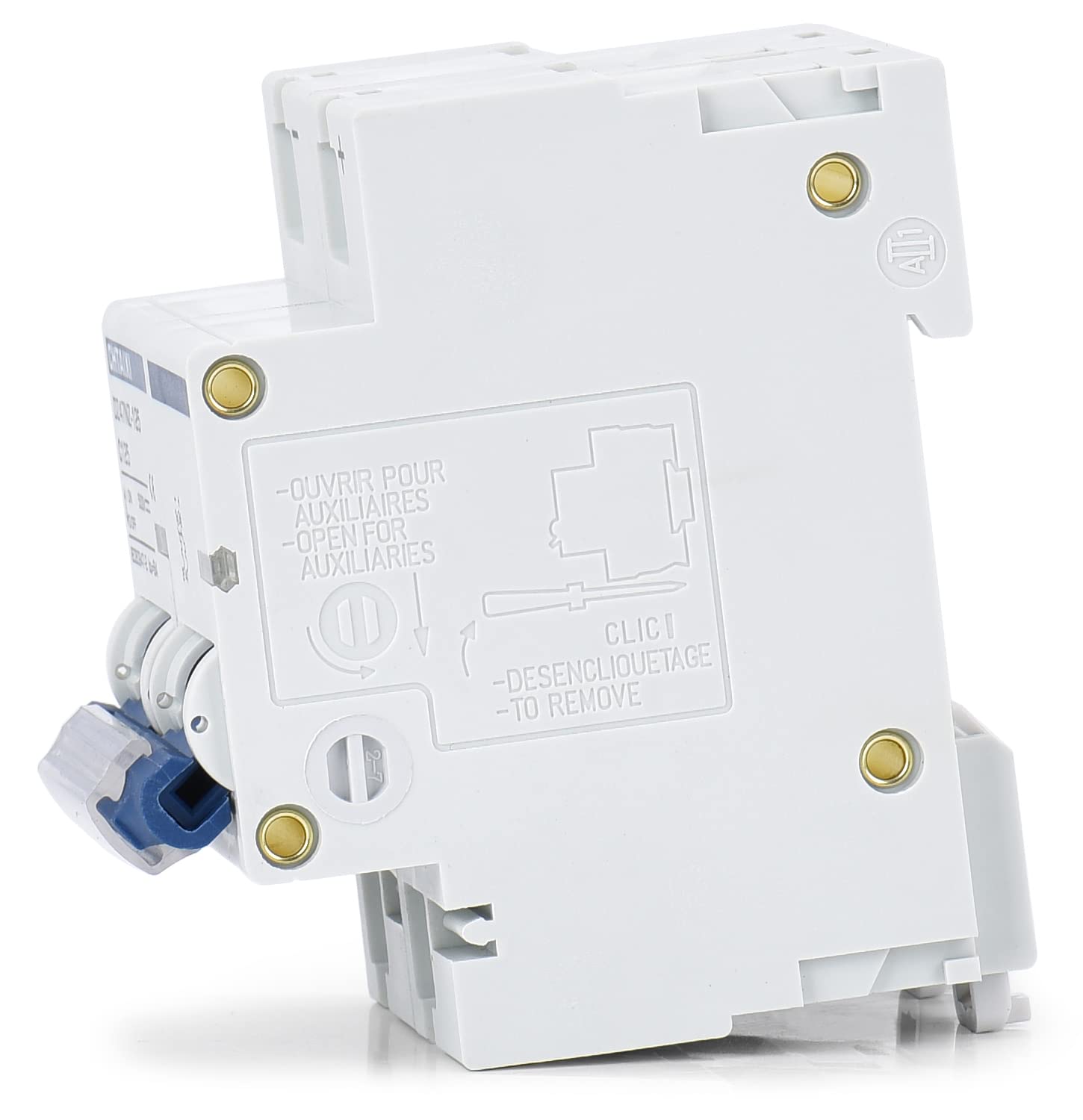

• Mounting: 35mm DIN rail ready for quick integration into control panels
• Wiring: screw clamp connections; silicone wires require proper crimping first
• Indicators: visible color indicator for rapid status checks

Note: This device is intended for DC applications and should be used in accordance with local electrical codes. Follow all safety practices when wiring and testing circuits, and ensure proper sizing for your specific DC network.
