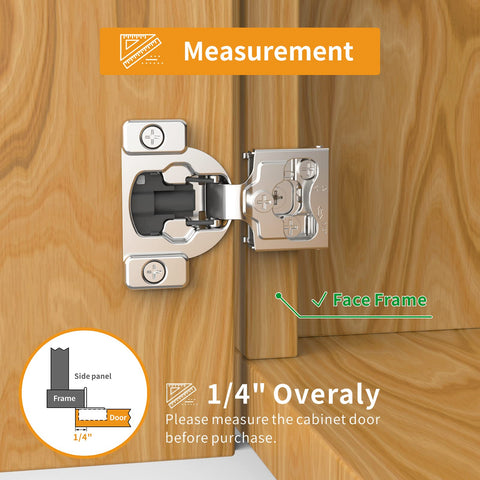

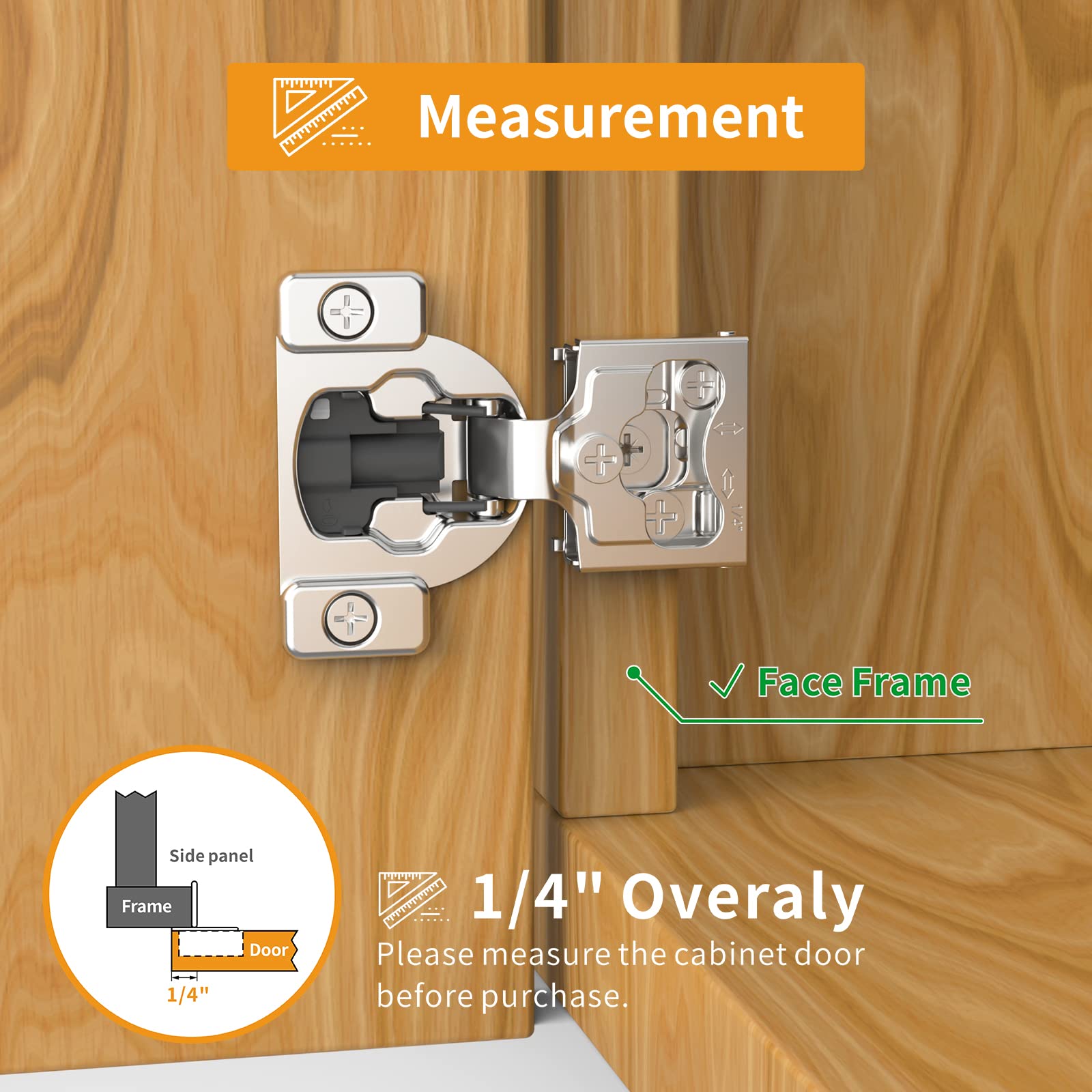

Chibery 50-Pack 1/4 Inch Small Overlay 4D Concealed Hinges for Face Frame Doors – Satin Nickel, Soft-Close On/Off

Chibery’s 50-pack of 1/4 inch small overlay 4D concealed hinges is built for face-frame cabinets that deserve a cleaner silhouette and smoother operation. The satin nickel finish rides a robust steel core, delivering a refined look for kitchens, living rooms, or home offices while standing up to daily use.

Designed for precision and reliable fit

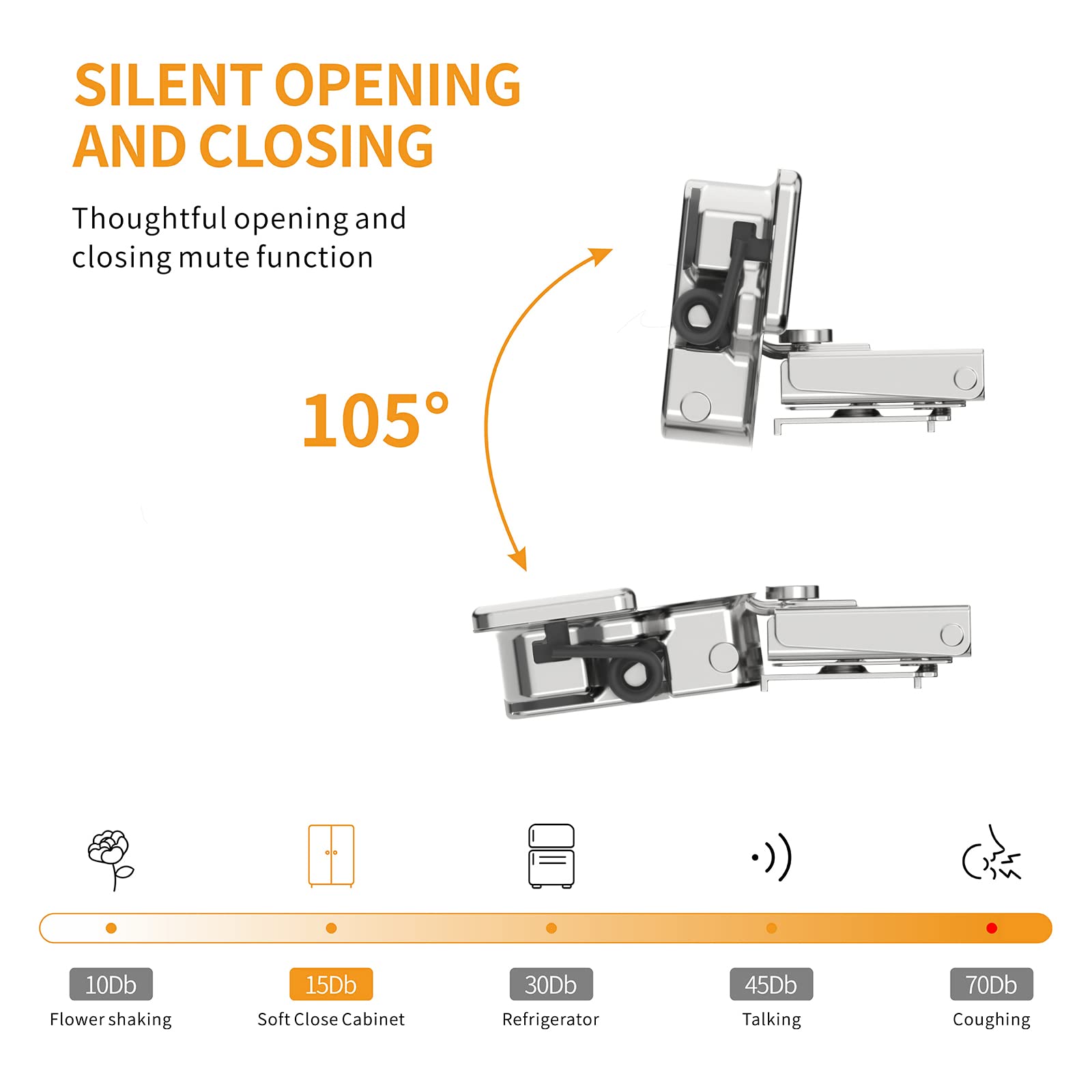

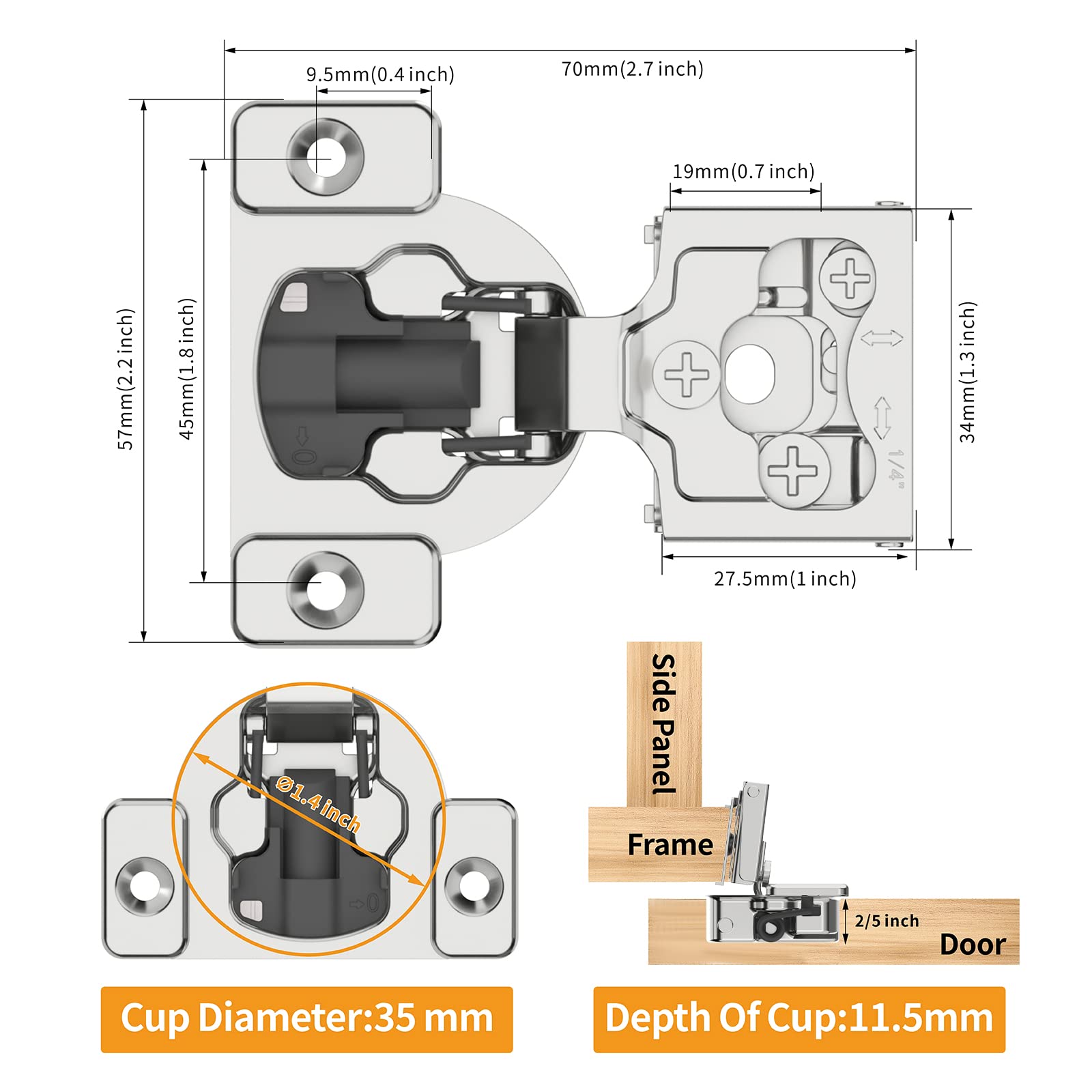

• Cup diameter 35mm; cup depth 11.5mm; screw holes 45mm apart; opening angle 105 degrees—compatible with most common cabinet door styles.
• Each hinge set includes 2 easy-on dowels and 3 self-tapping screws to help you mount and align quickly and securely.

Soft-close and finger-safe by design

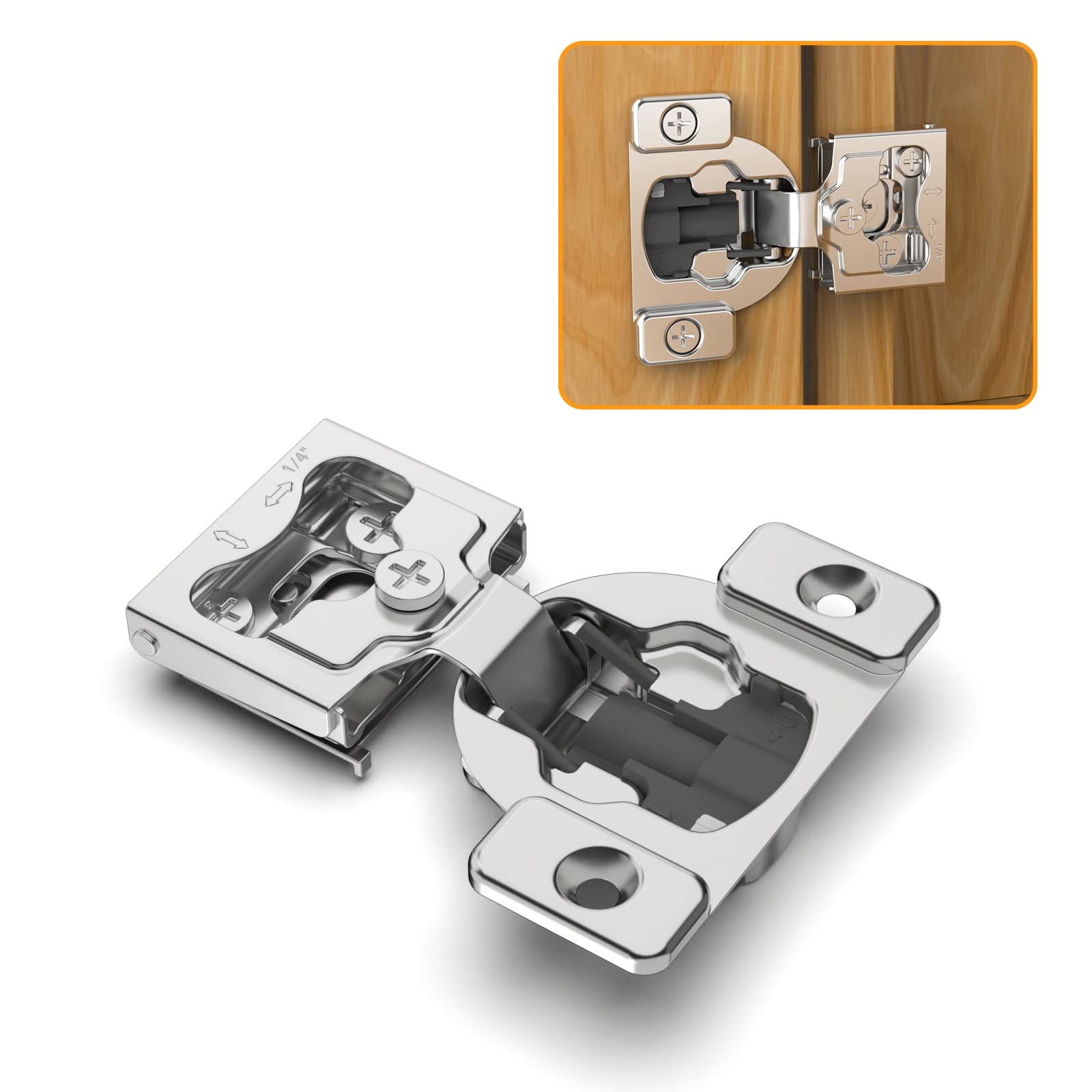

• Built-in POM damper slows the closing action, reducing noise and extending the life of doors, frames, and hinges.
• Small soft-close angle helps minimize finger pinch points during operation.

Durability you can count on

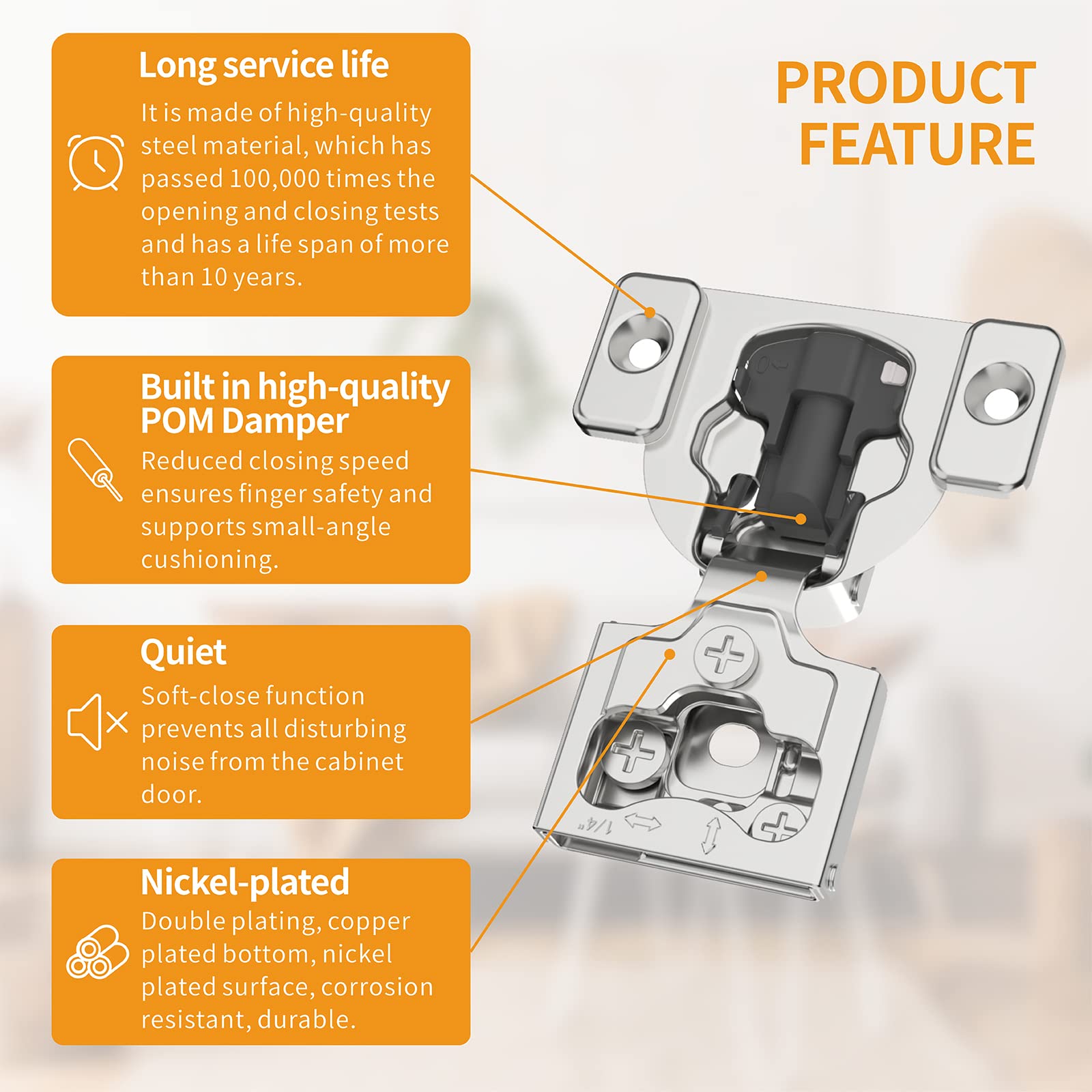

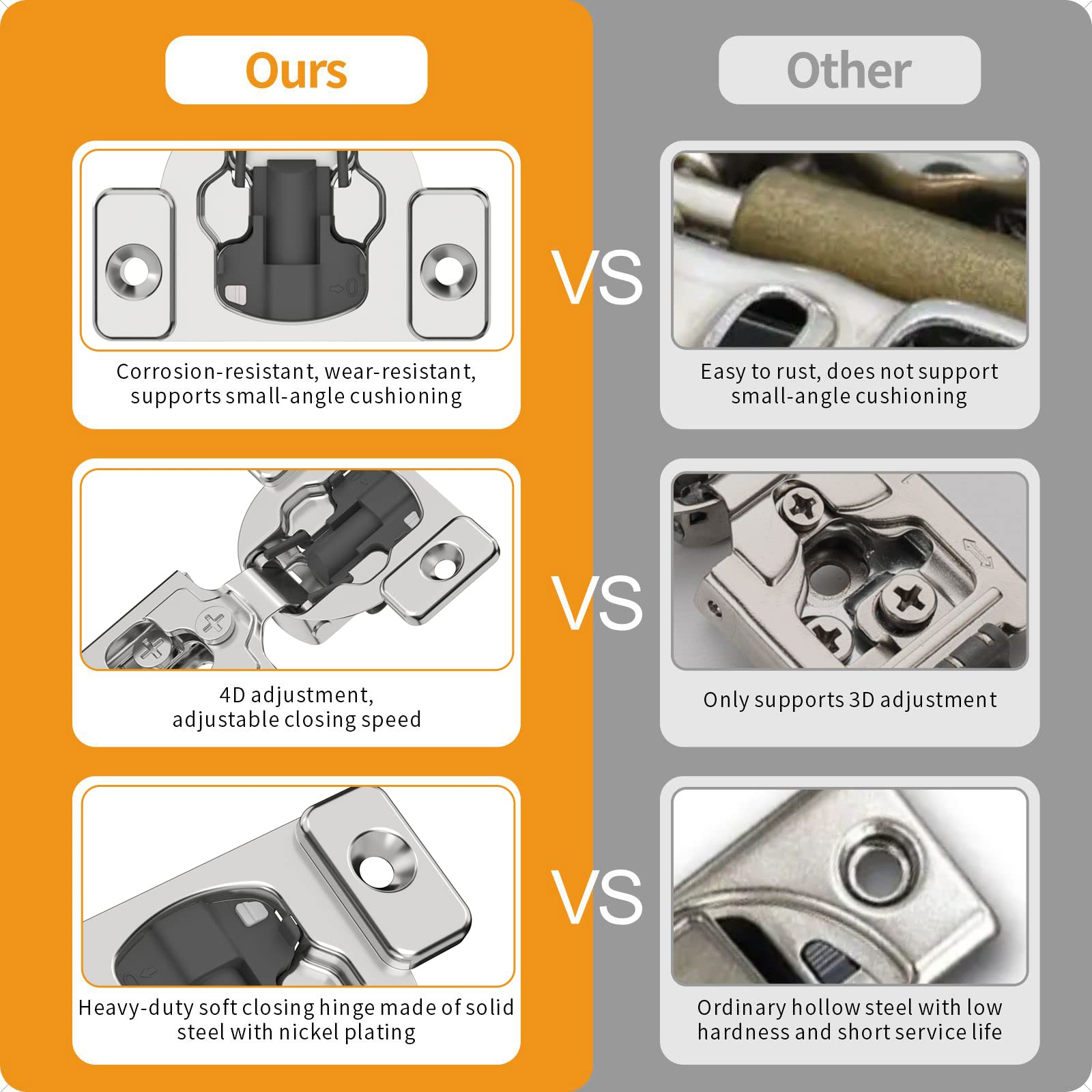

• Double electroplated steel with nickel finish and brass-plated bottom deliver long-lasting performance for kitchen cabinets, wardrobes, TV cabinets, bookcases, and wine cabinets.
• ISO 9001, ISO 14001, BHMA, KCMA, and SGS certifications reassure manufacturing quality; tested for 100,000+ open/close cycles and 48+ hours of salt spray exposure.

4D adjustability and flexible use

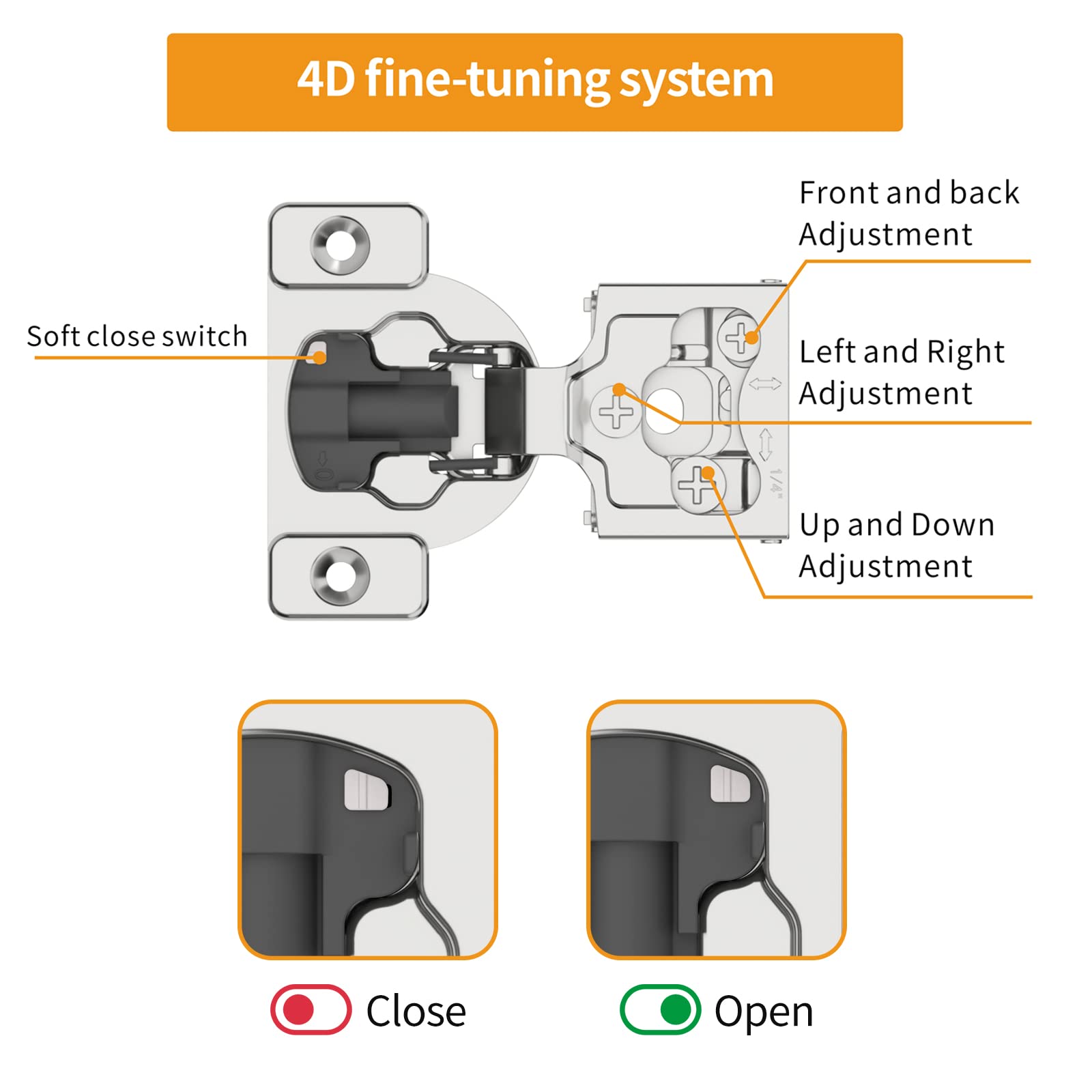

• Adjust vertical, horizontal, and depth alignment with simple screwdriver turns to prevent sag and keep doors perfectly aligned.
• On/off switch for the soft-close feature lets you tailor the feel to your project or mood.

In practice

• Ideal for refreshing framed cabinets in kitchens and storage walls where a seamless look matters.
• Great for wardrobes, TV consoles, and bookcases where confident alignment and quiet operation improve daily use.
