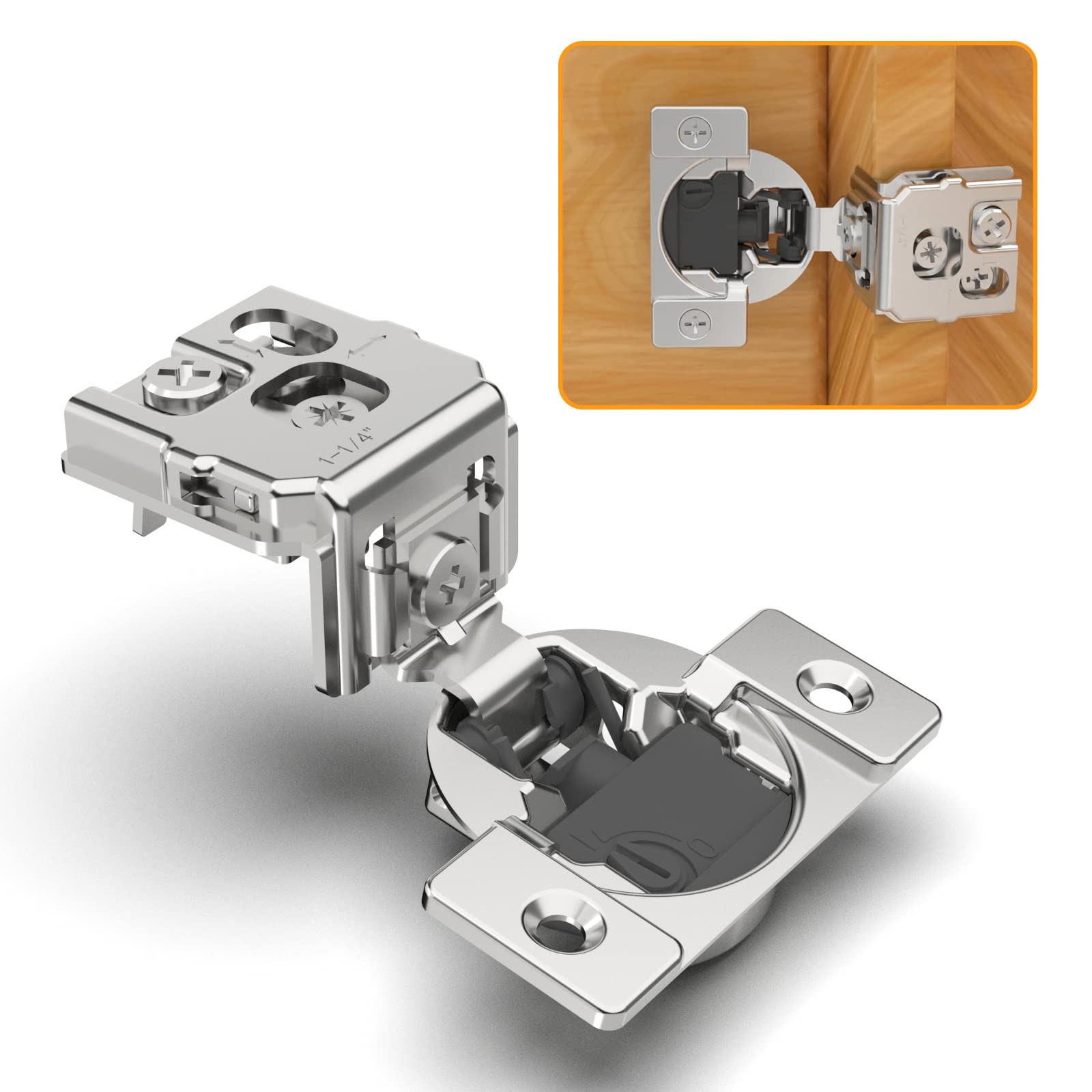

Chibery 50-Pack 1-1/4in 4D Overlay Soft-Close Concealed Hinges – Satin Nickel, 105° Open Angle

Upgrade your face-frame cabinets with Chibery’s 50-pack of 1-1/4-inch 4D overlay soft-close concealed hinges. Crafted for quiet, controlled closings and precise alignment, these hinges blend seamlessly with modern kitchens, pantries, and wardrobes while standing up to daily use.

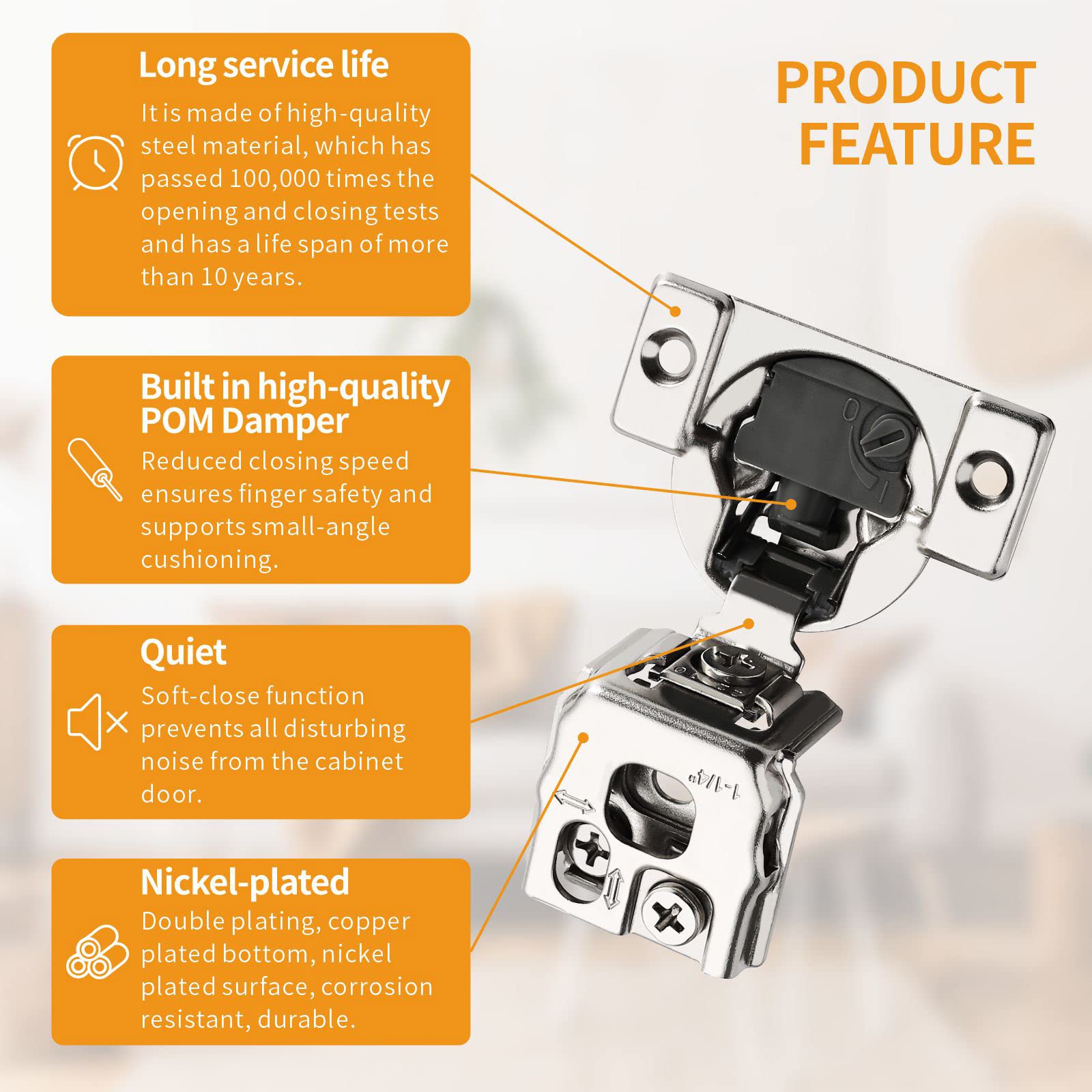

Each hinge includes a built-in POM damper that slows the closing motion, helping to reduce noise and wear on doors and frames. The result is a smoother, more deliberate close that enhances everyday tasks, from closing a cabinet after cooking to tidying shelves in a busy entryway. The satin nickel finish adds a refined touch that holds up to moisture and frequent handling without looking worn.

Smart design for everyday use

The 4D upgrade lets you fine-tune the door position in four dimensions: vertical, horizontal, depth, and closing speed. This ensures new or remodeled doors hang evenly, resist sagging, and glide smoothly. The 105° opening angle provides convenient access for typical face-frame layouts, making everyday tasks easier and more comfortable.

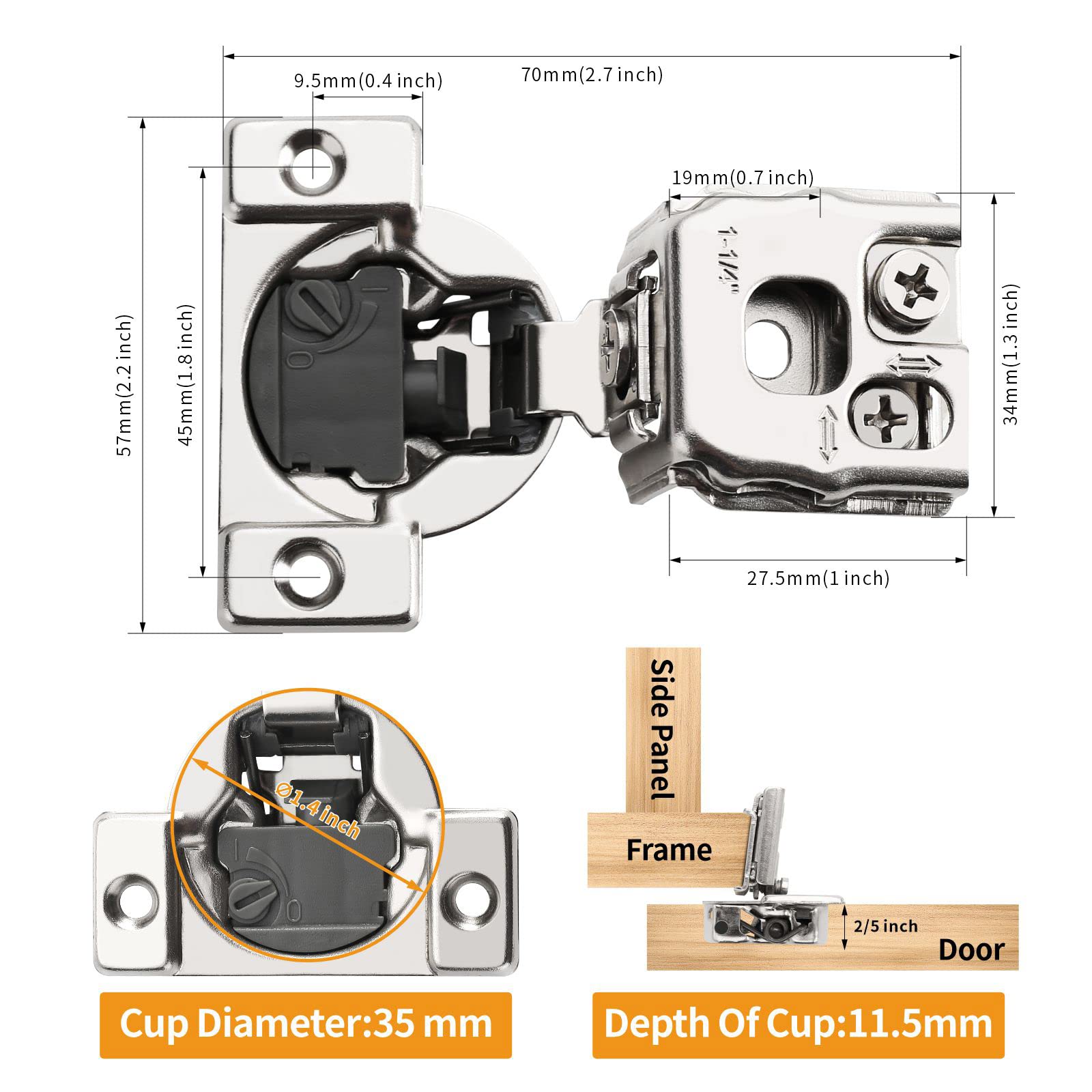

• Installation specs: cup diameter 35mm; cup depth 11.5mm; screw holes 45mm; 105° opening; includes 2 easy-on dowels and 3 self-tapping screws

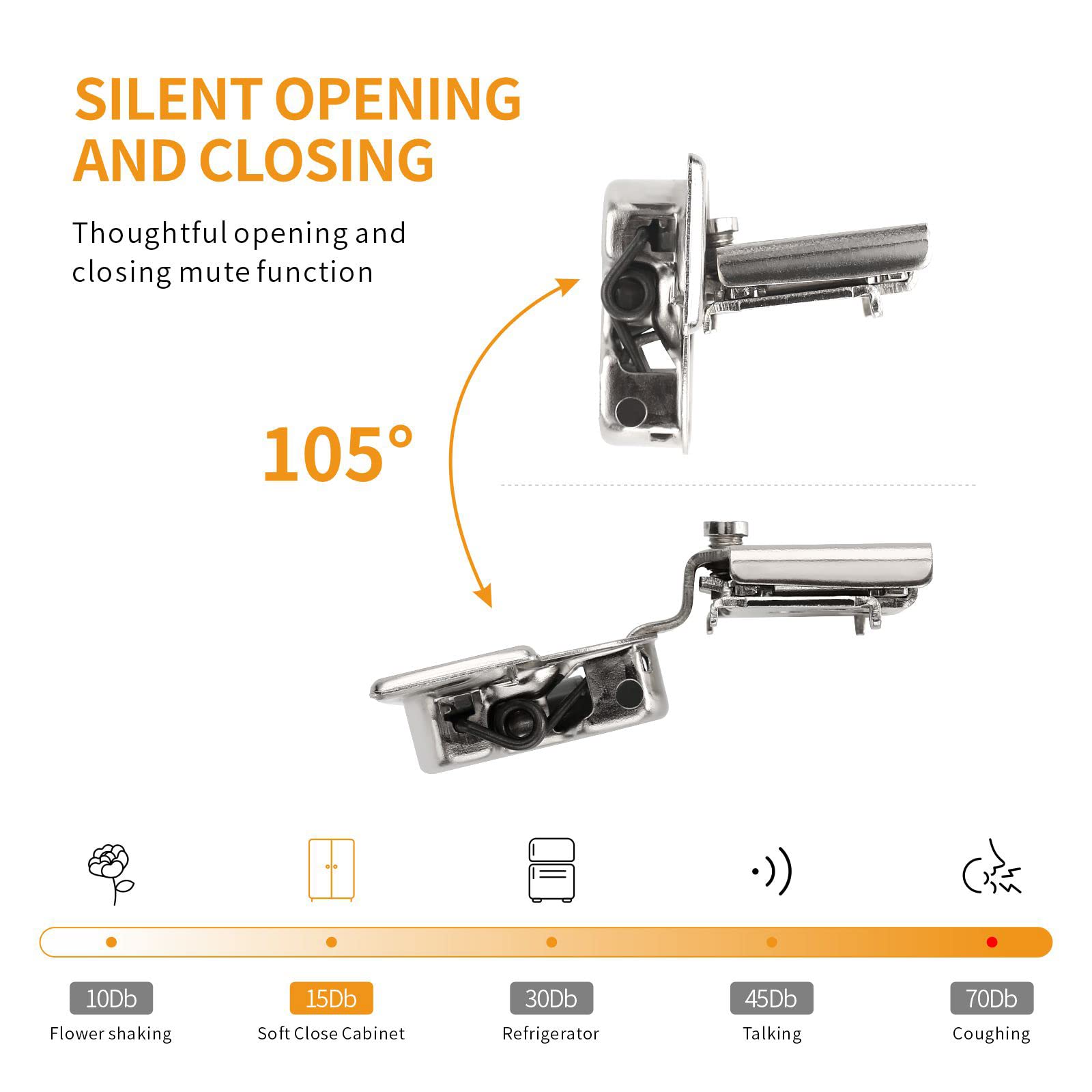

• Soft-close action with a built-in POM damper reduces noise and wear

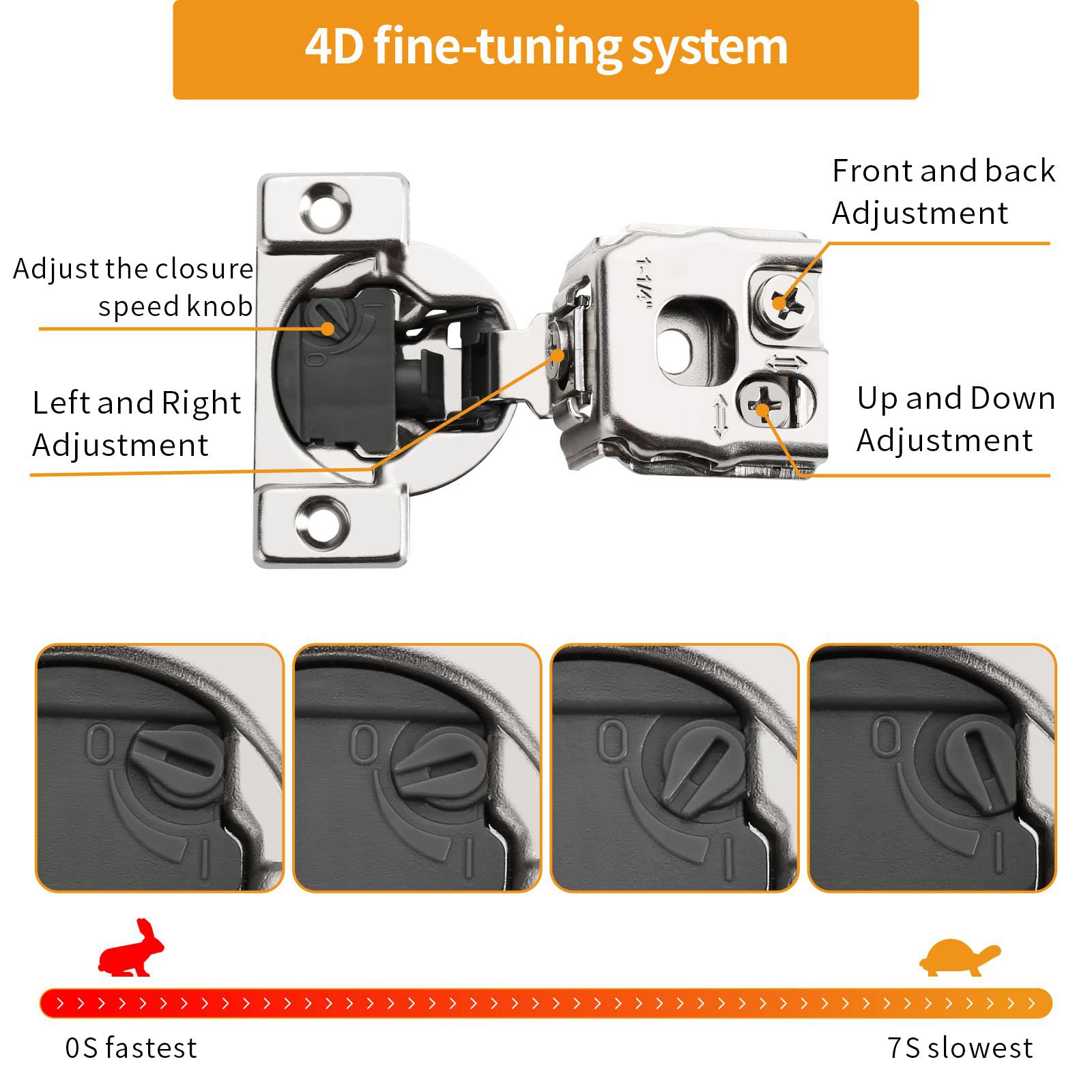

• 4D adjustability: vertical, horizontal, depth, and closing speed (0–7s)

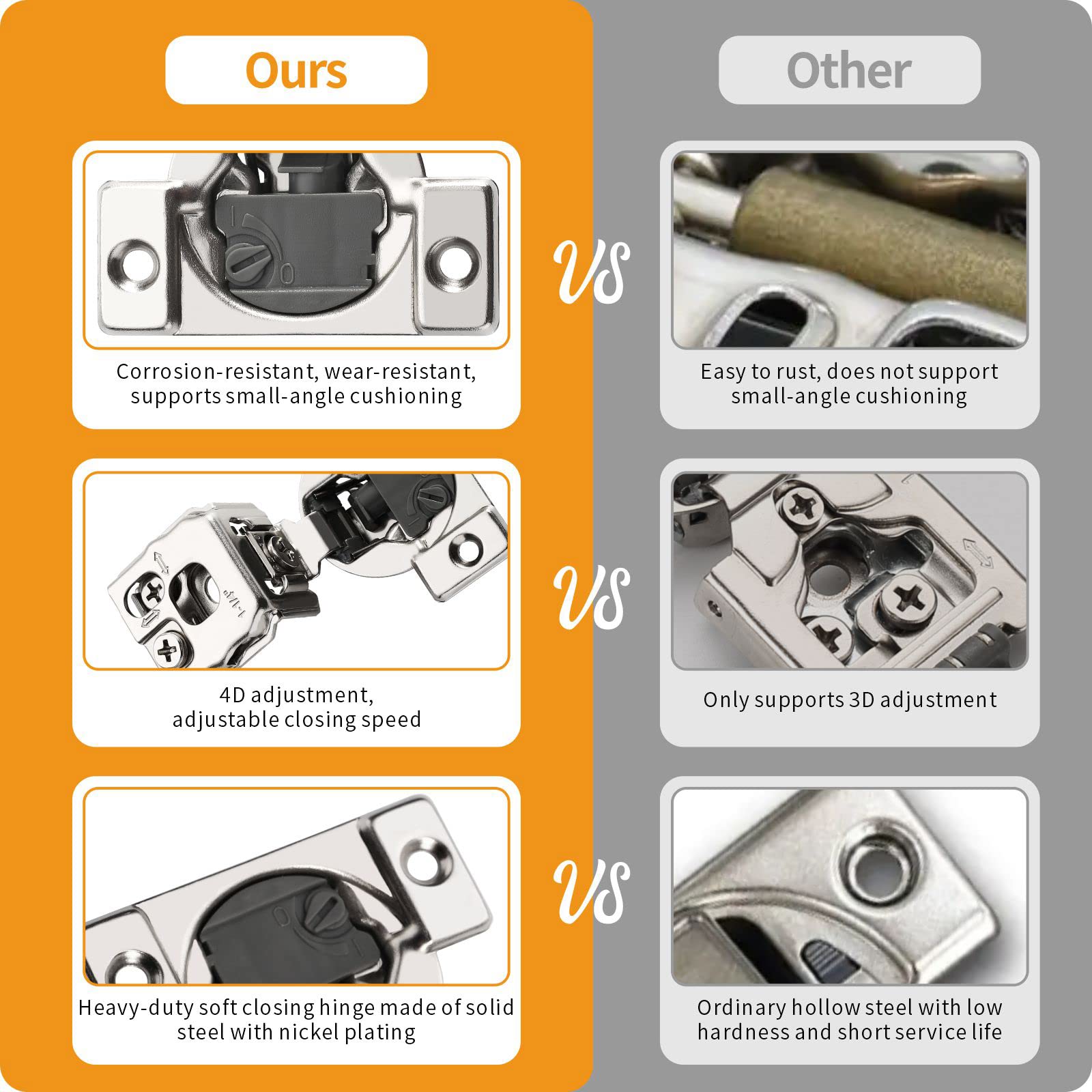

• Durable steel with double electroplated nickel finish and brass-plated bottom for longevity
• Certified to ISO9001, ISO14001, BHMA, KCMA, SGS; tested for 100,000+ open/close cycles and 48+ hours of salt spray

What you get and where to use

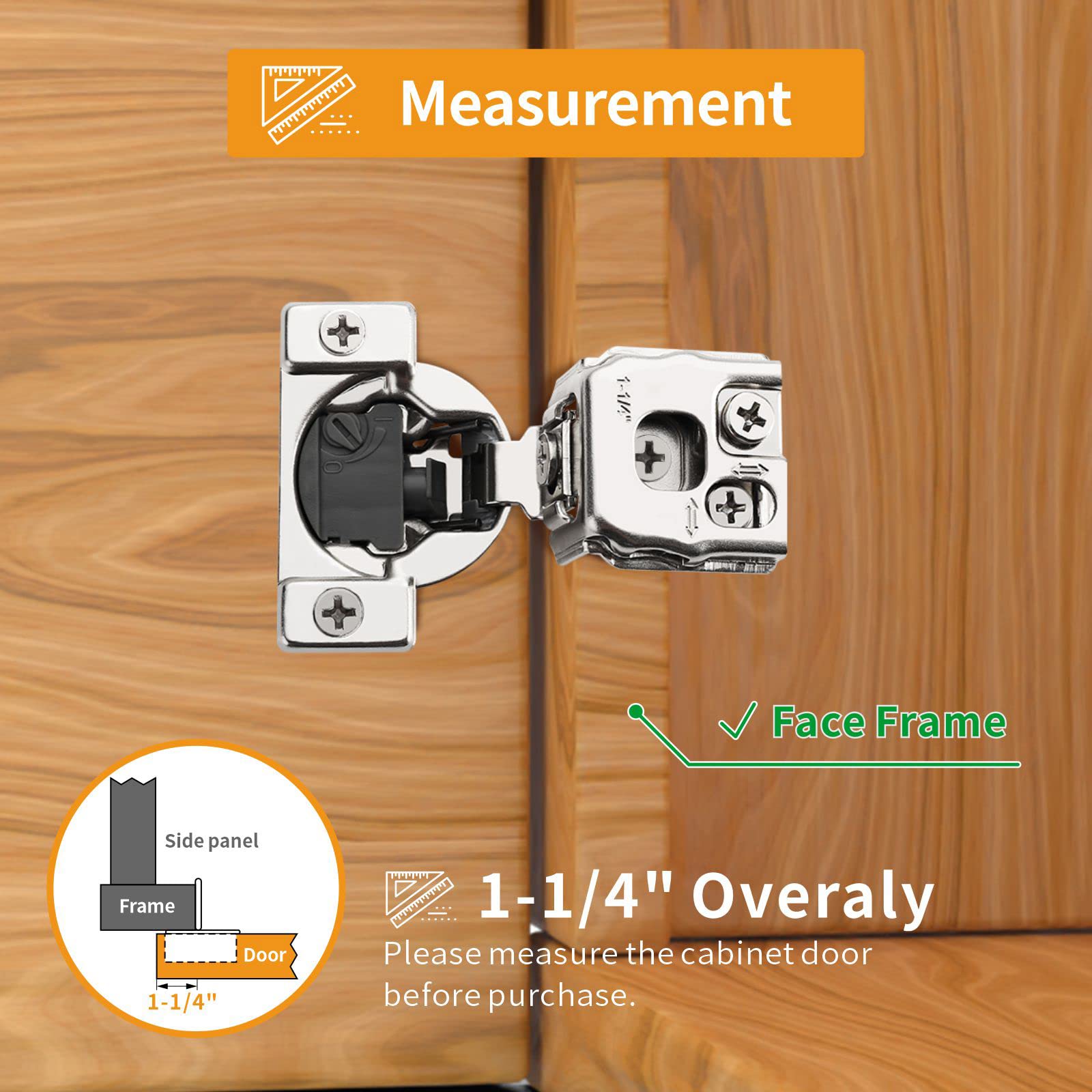

• 50 overlay hinges ideal for face-frame cabinet doors in kitchens, bathrooms, and storage cabinets
• Included installation hardware: 2 dowels and 3 self-tapping screws per hinge pair
• Versatile for a wide range of cabinet styles and door thicknesses

Choosing Chibery means reliable hardware backed by quality standards and responsive service. If you’re refreshing a kitchen, vanity, or media cabinet, these hinges offer a thoughtful upgrade that supports smooth operation, quiet closes, and lasting alignment without overpromising results.
