Chibery 10 Pack Frameless Full Overlay Soft-Close Concealed European Hinges, Satin Nickel

Chibery 10 Pack Frameless Full Overlay Soft-Close Concealed European Hinges

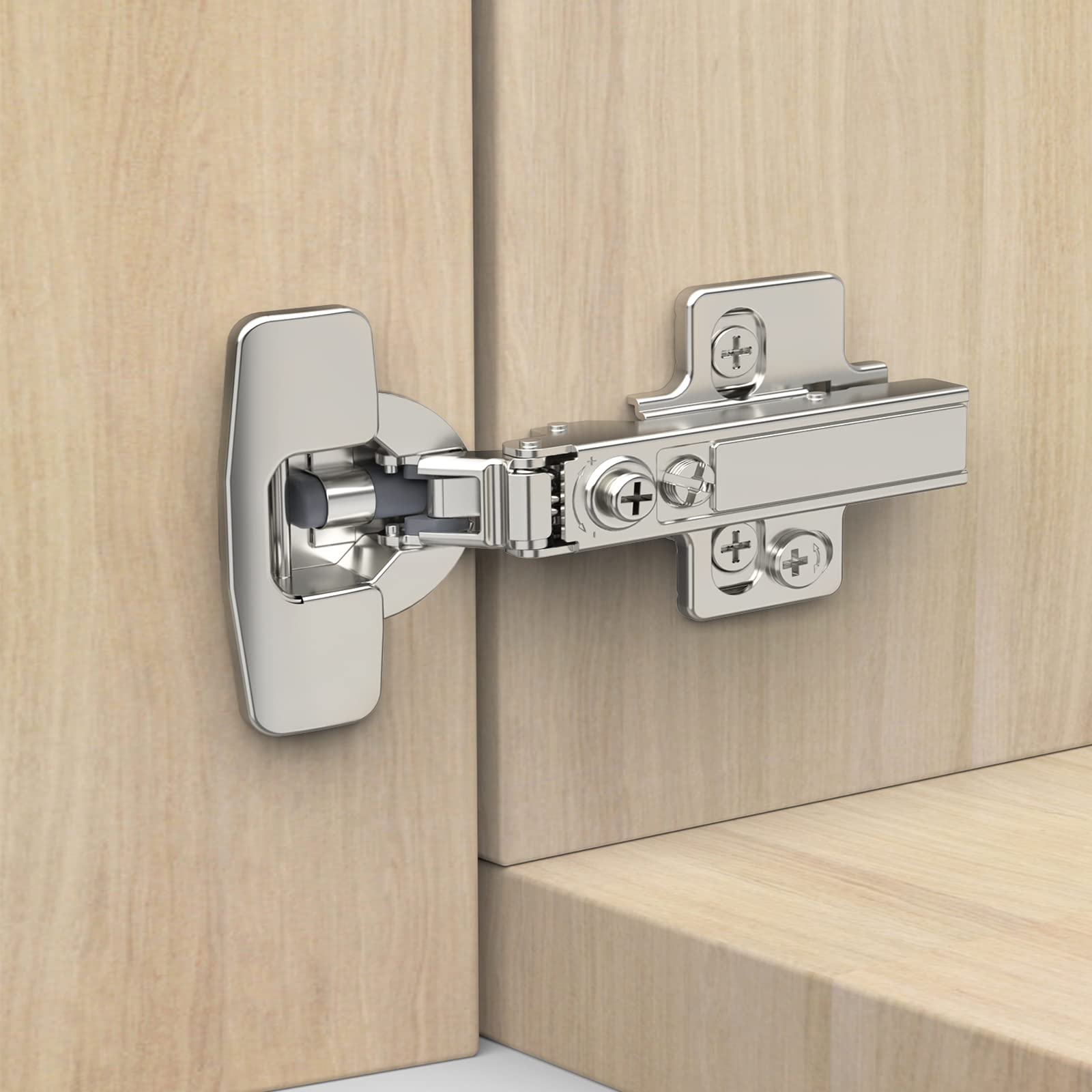

Refresh your cabinetry with Chibery’s ten-pack of frameless hinges. These concealed European hinges feature a soft-close damper and a satin-nickel finish, delivering a refined look and quiet operation. The design suits modern kitchens, laundry spaces, and storage vanities where you want a clean, uninterrupted door line.

Built for real-life use, each hinge blends precision engineering with straightforward installation. The full-overlay geometry helps doors sit flush against cabinet frames, while the satin-nickel coating resists minor scratches and fingerprints, staying looking clean with everyday use.

Key benefits you may notice

• Soft-close damping reduces audible clatter as doors settle, contributing to a calmer, more organized space.
• Small soft-close angle protection offers a gentle close around fingers, helping prevent minor nicks during daily tasks.

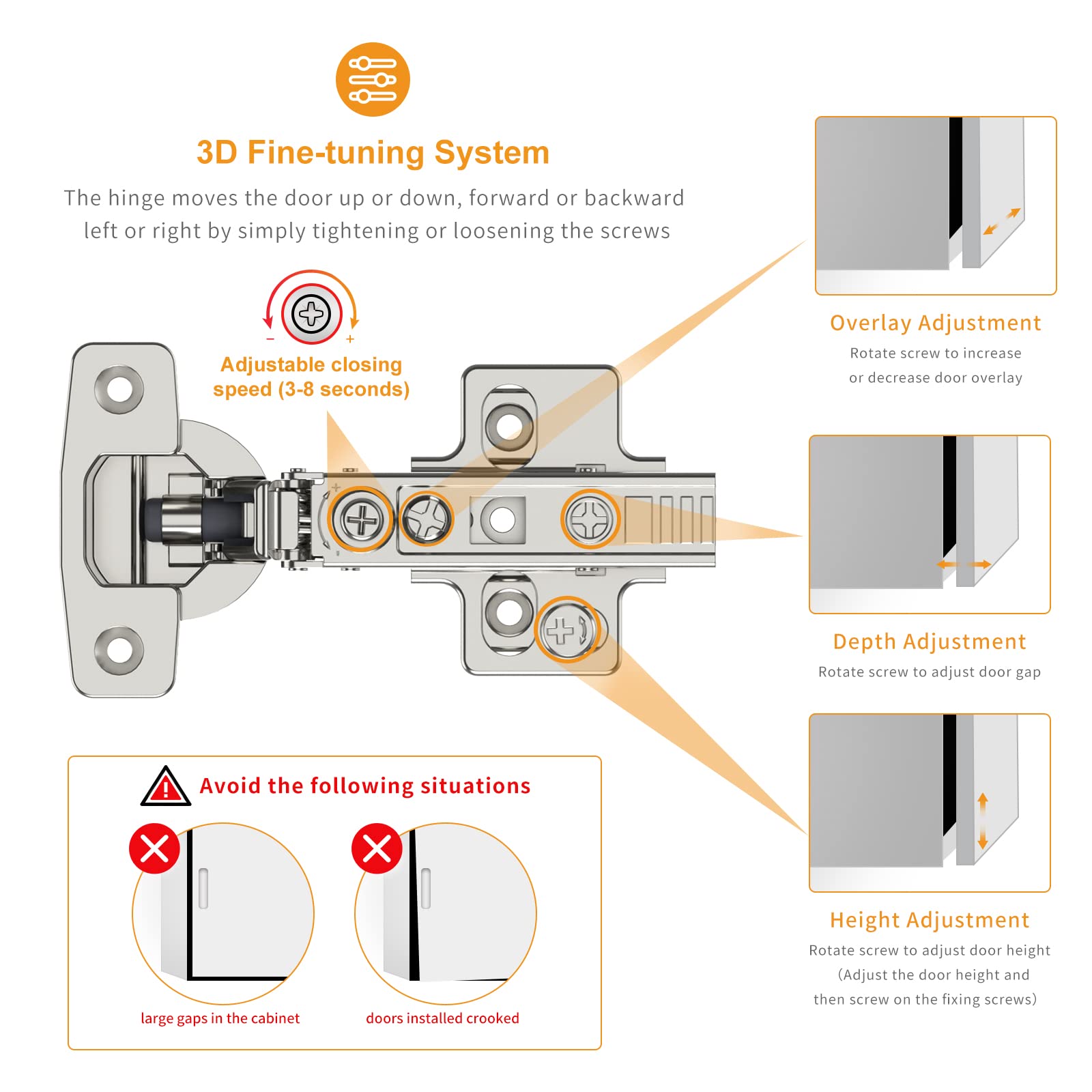

• 4D adjustment enables precise alignment: tweak vertical, horizontal, depth, and closing speed for a smooth, sag-free fit.

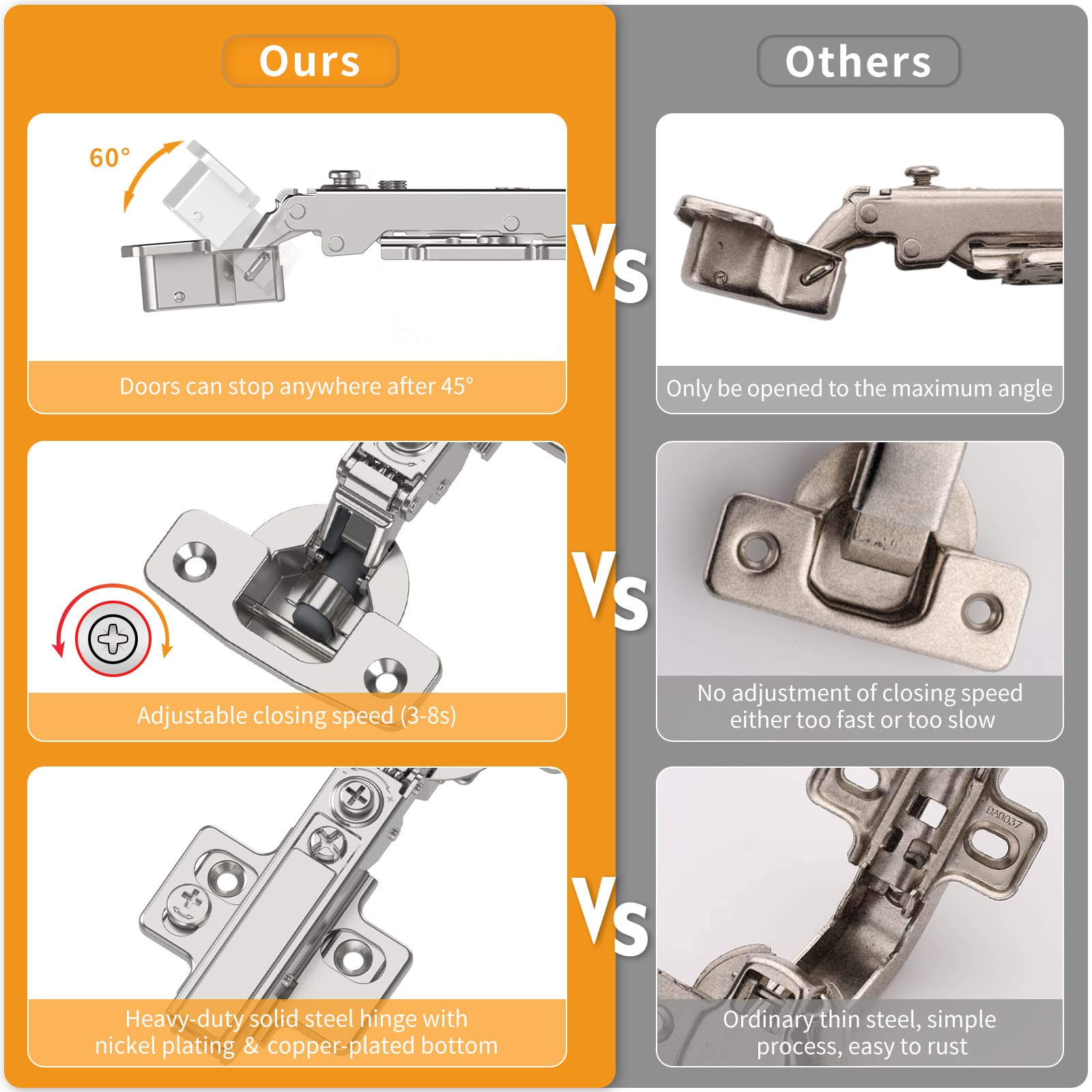

• Opening autonomy: stop at any angle beyond 45°, useful when doors are near walls or adjacent cabinetry.

Specifications at a glance

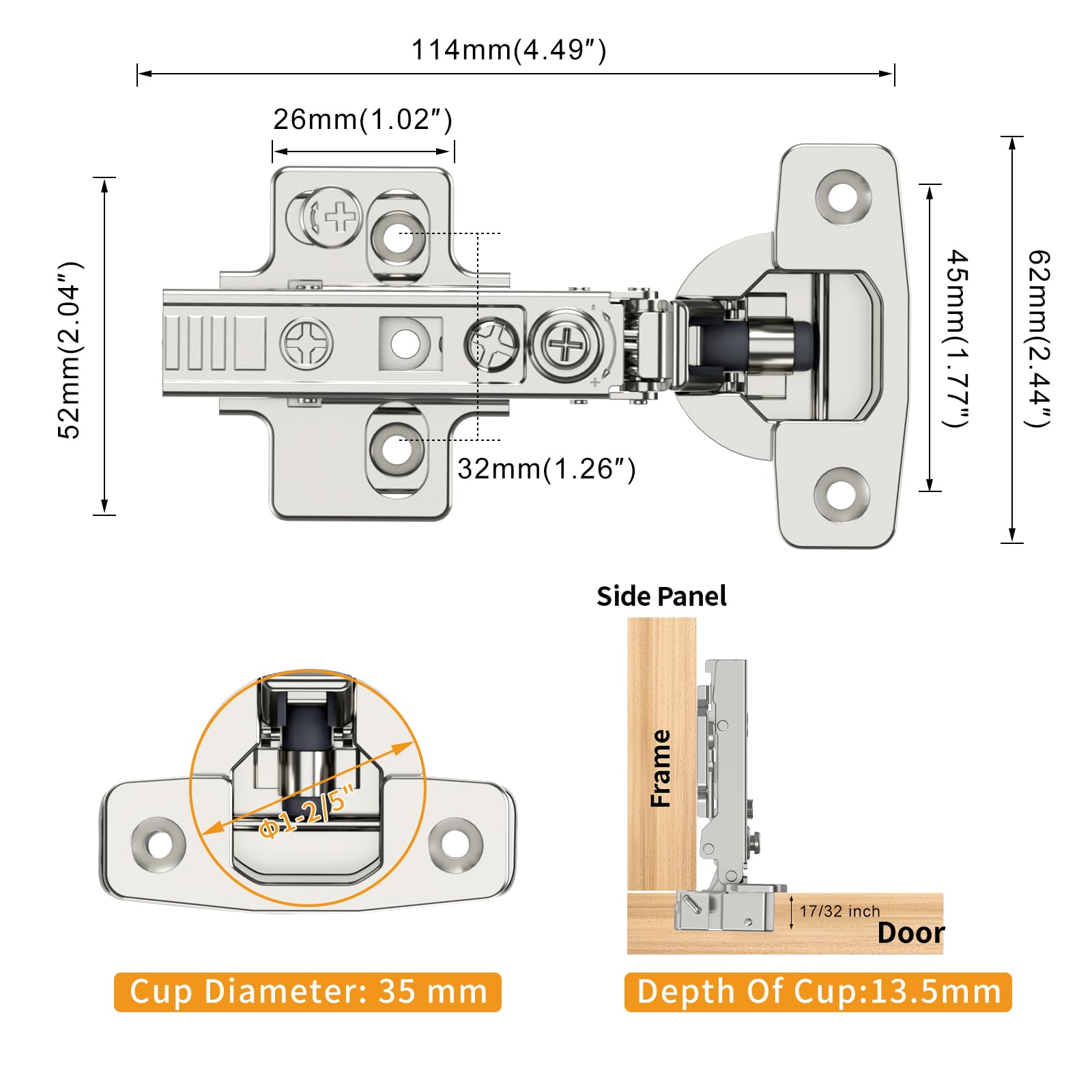

• Cup depth: 13.5 mm; screw holes distance: 45 mm; opening angle: 105 degrees; door thickness range: 14–22 mm.

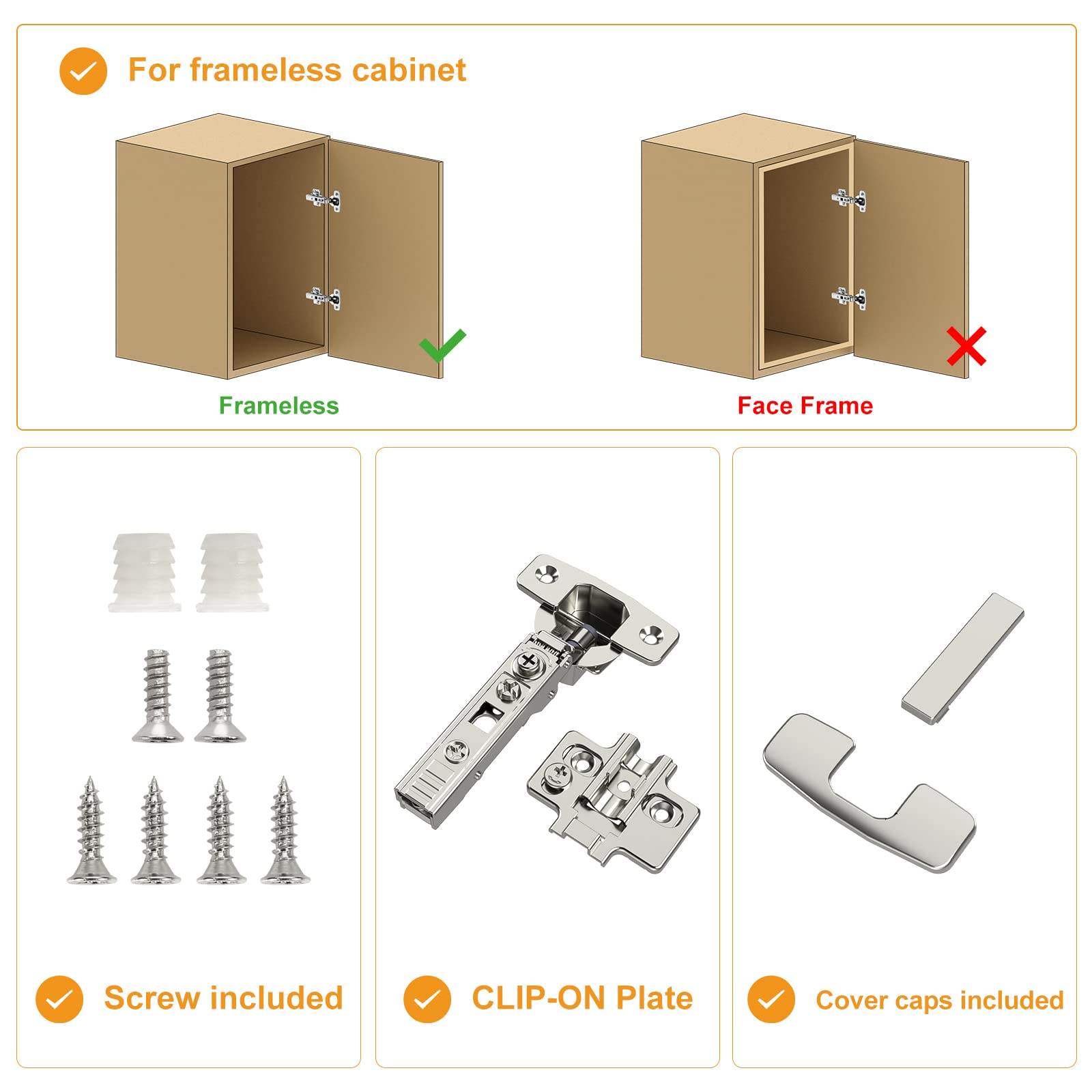

• Includes 2 easy-on dowels, 4 self-tapping wooden screws, and 2 screw covers to hide fasteners.

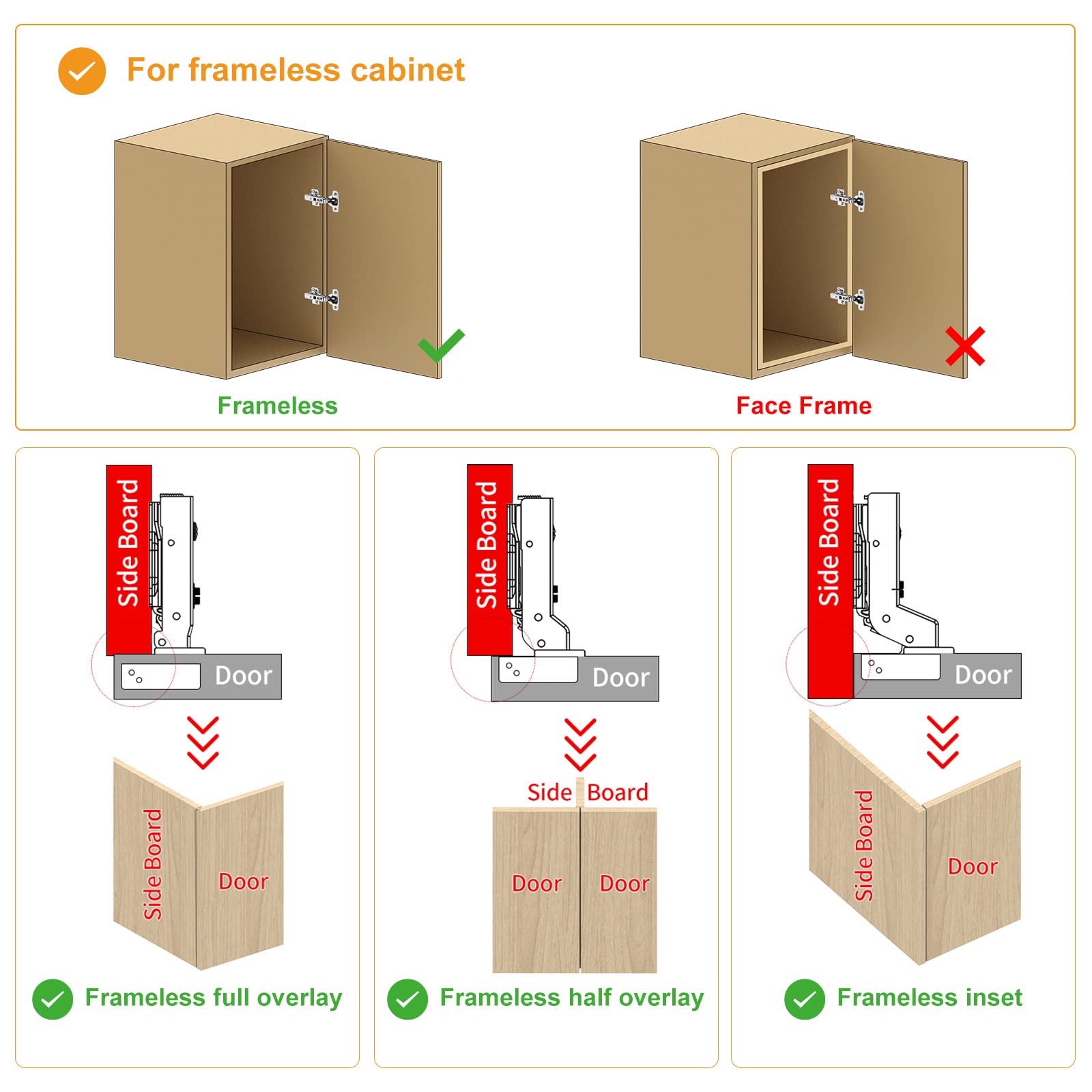

• Designed for full-overlay frameless cabinets; euro-style concealed hinge with clip-on compatibility.

Durability, safety, and certifications

Chibery hinges are manufactured to rigorous standards and backed by ISO 9001, ISO 14001, BHMA, KCMA, and SGS certifications. They withstand extensive use—tested over 100,000 open/close cycles—and endure salt spray exposure for at least 48 hours, signaling robust corrosion resistance in real kitchens.

What’s in the box

• 10 hinges for consistent performance across multiple doors in a single project.
• Hardware kit with dowels, screws, and covers to streamline installation.
• Clear mounting instructions and adjustment guidance to achieve reliable results.

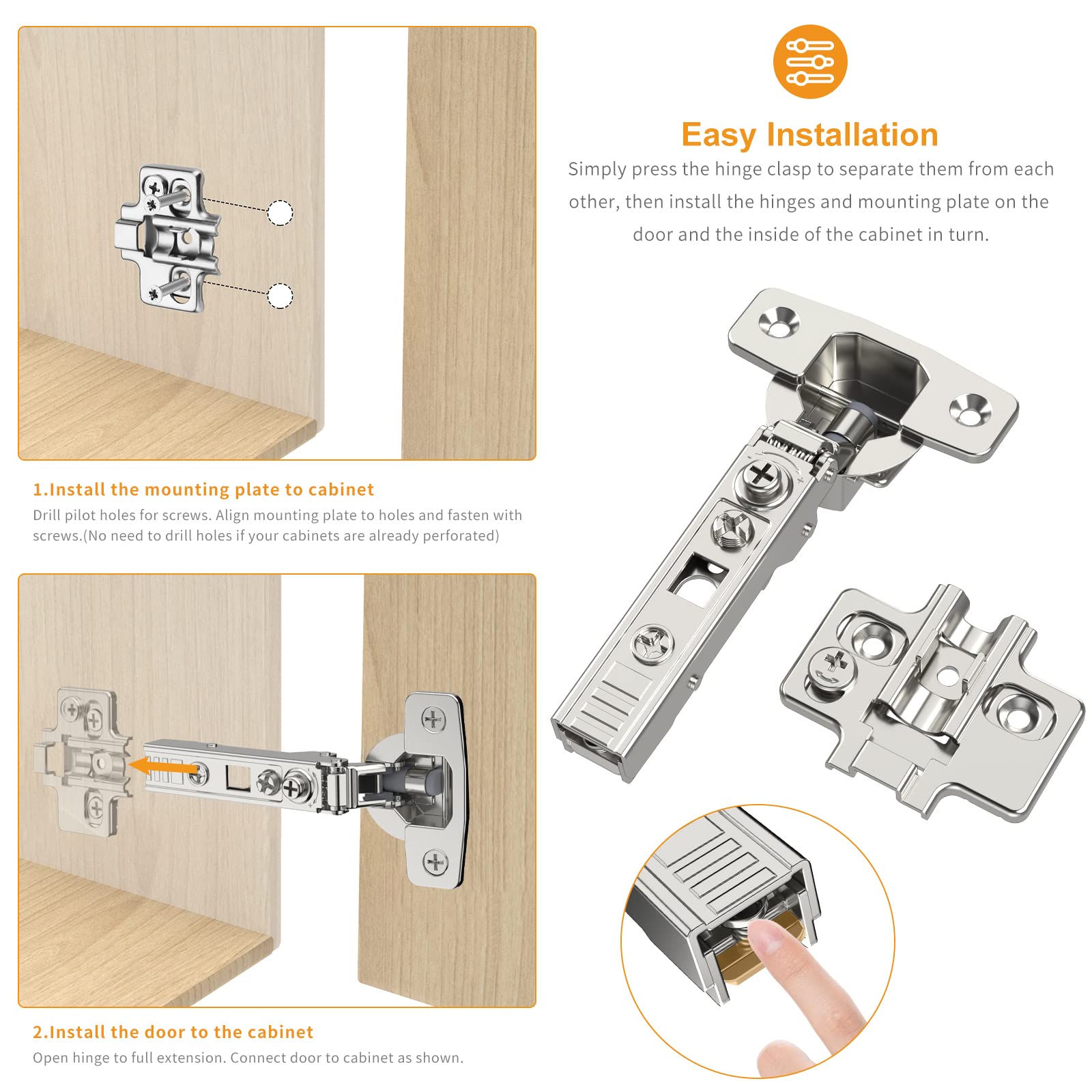

Tips for a successful install

1. Measure door thickness (14–22 mm) and confirm cabinet style (frameless full overlay) before assembly.
2. Use 4D adjustments after hanging doors to align gaps and ensure even spacing.
3. Test door motion and adjust closing speed to minimize slamming or slow closure.
