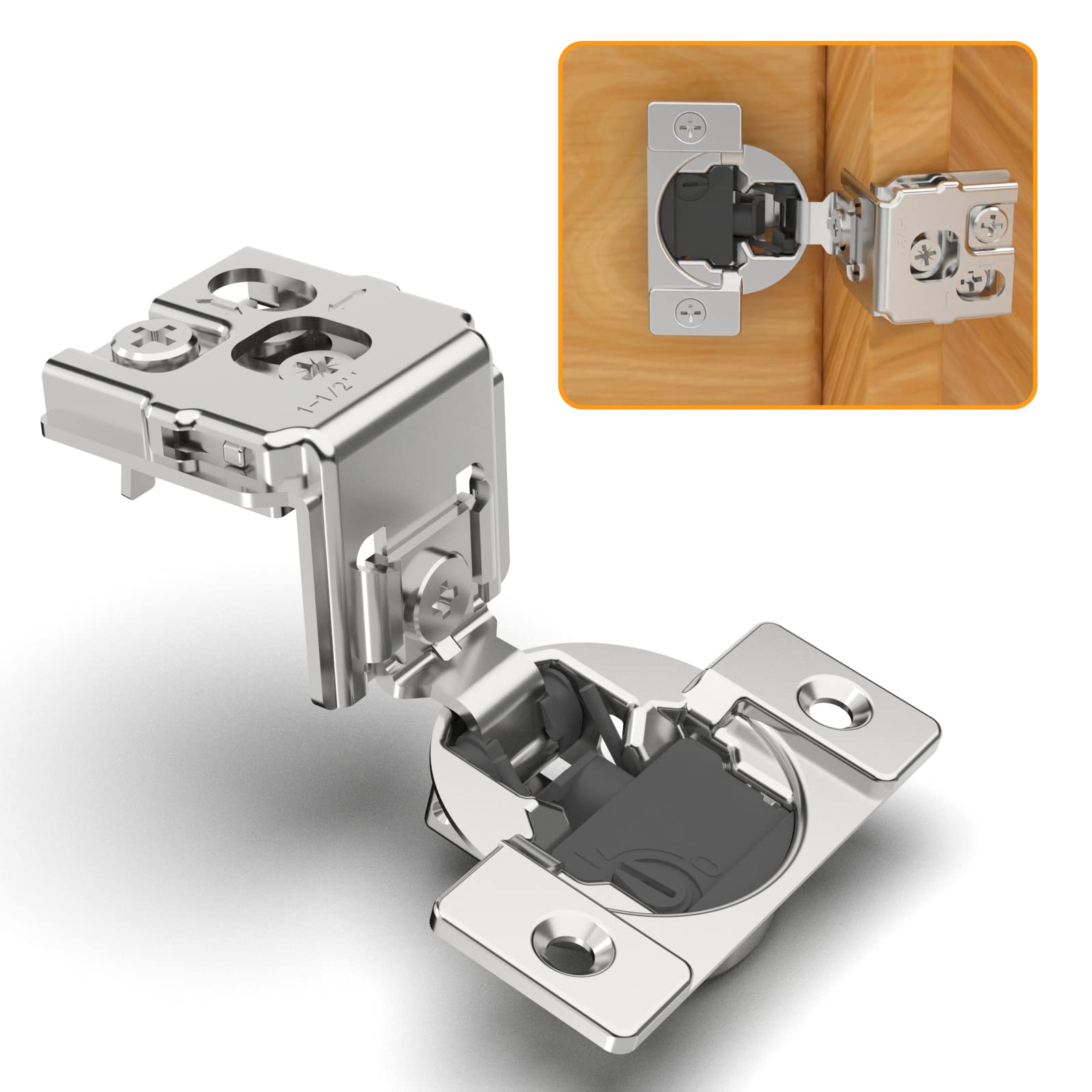

Chibery 10 Pack 1-1/2 Inch Overlay 4D Soft Close Concealed Hinges – Satin Nickel, 105° Open for Face Frame Cabinets

Upgrade Your Cabinets with Chibery 10 Pack 1-1/2 Inch Overlay 4D Soft Close Hinges

Transform how your face-frame cabinets feel and perform with this 10-pack of Chibery hinges. Designed for quiet, reliable operation and easy installation, they bring a refined touch to kitchens, pantries, and storage spaces that see frequent door use. The satin nickel finish adds a contemporary edge while delivering dependable durability that complements a wide range of wood tones and décor styles.

What you get and how it fits

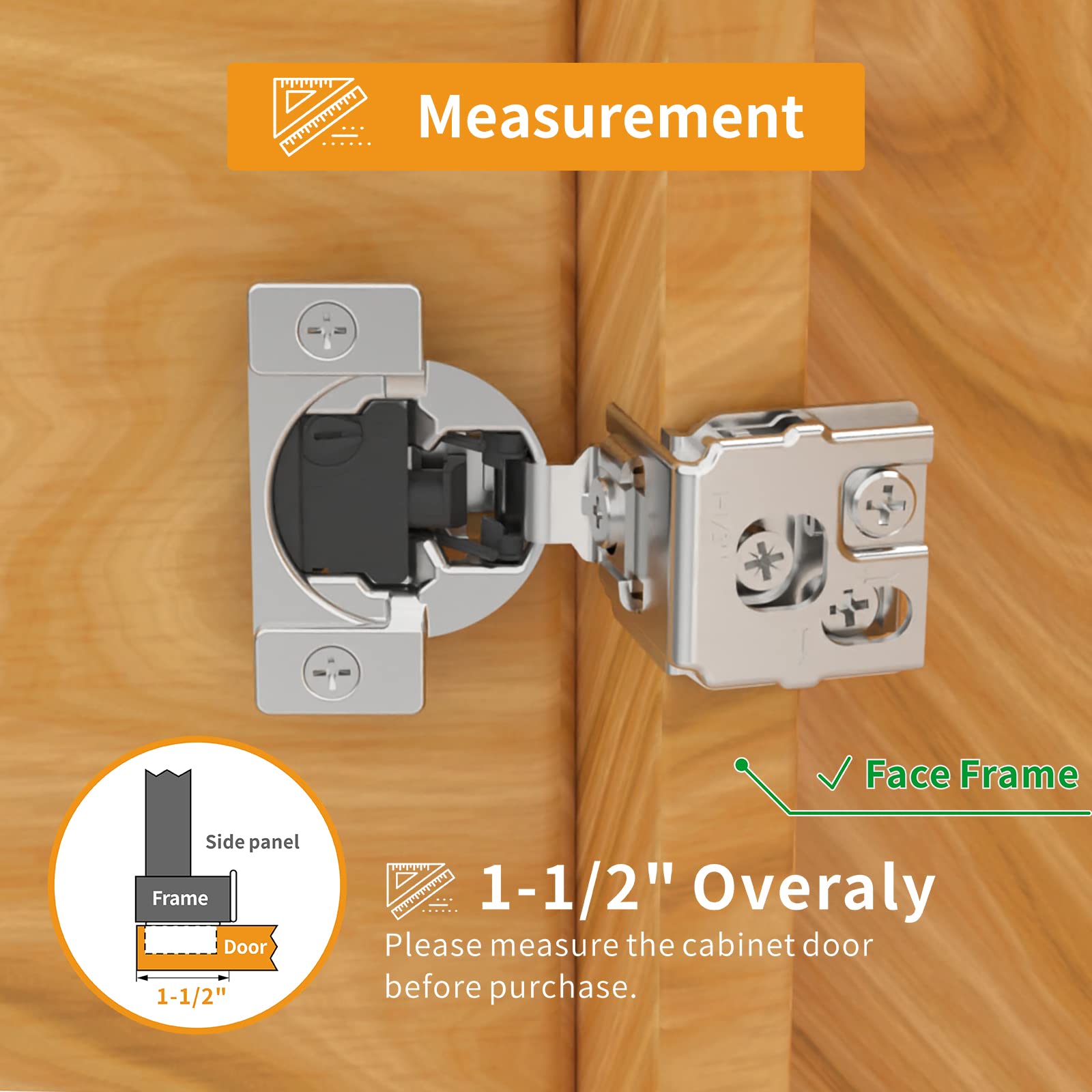

These hinges are built around practical, cabinet-friendly specs: a 35mm cup diameter, 11.5mm cup depth, and 45mm screw-hole spacing, optimized for most face-frame door styles. Each hinge kit includes two easy-on dowels and three self-tapping wooden screws, so you have what you need to install with confidence and minimal tools.

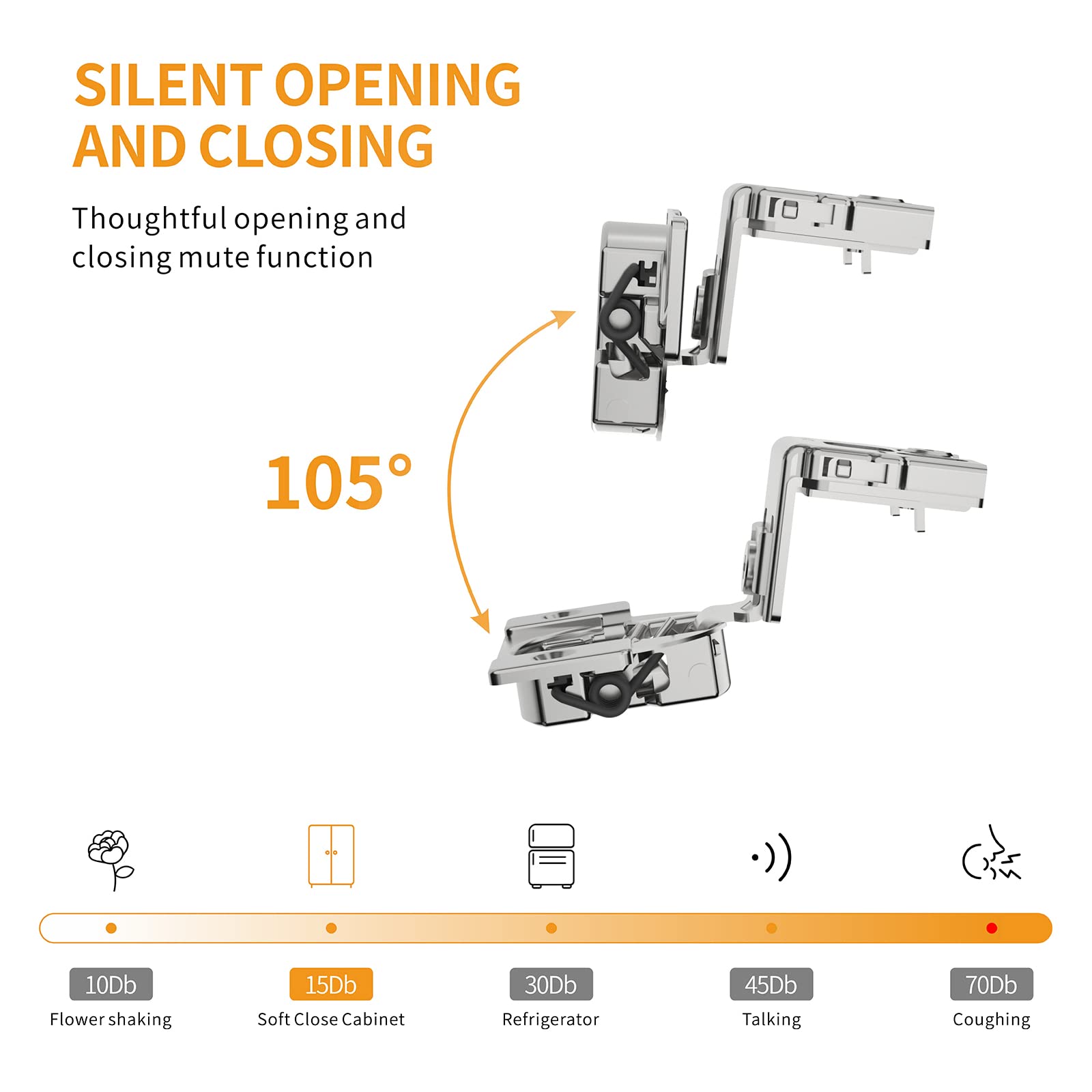

• 105° opening angle provides broad access while keeping doors neatly aligned with the frame.

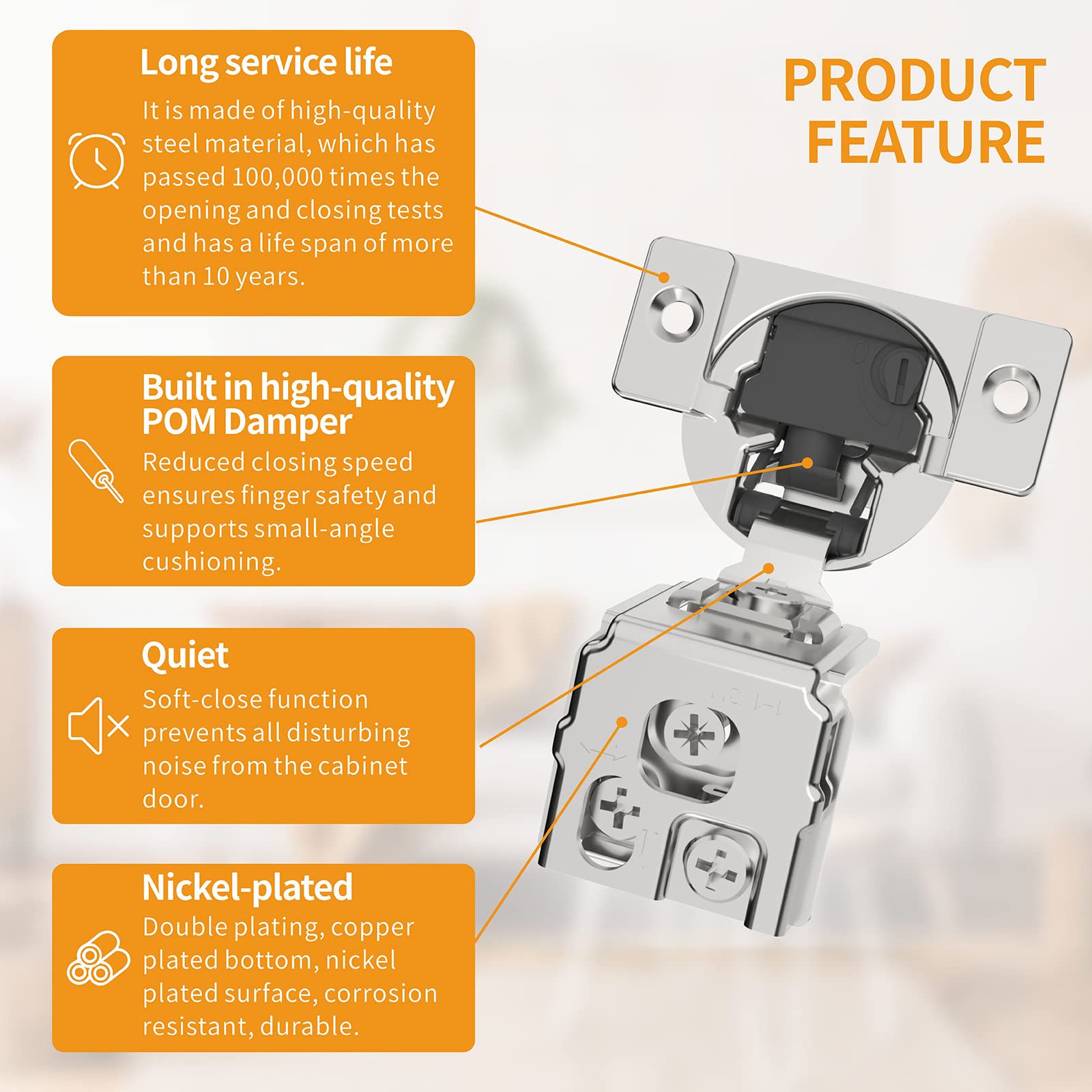

• Built-in POM damper delivers a soft, controlled close to reduce kitchen noise and prolong the life of doors and hinges.
• Small soft-close angle design helps protect fingers during routine use.

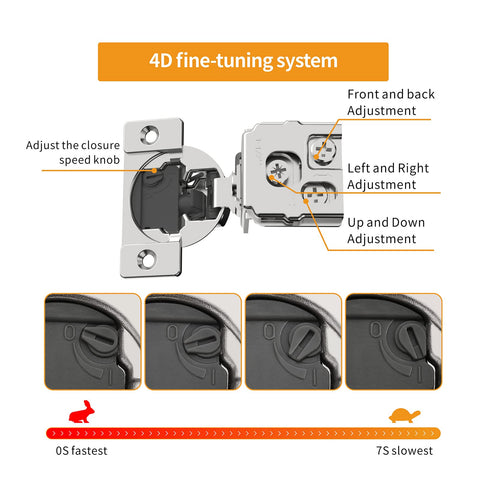

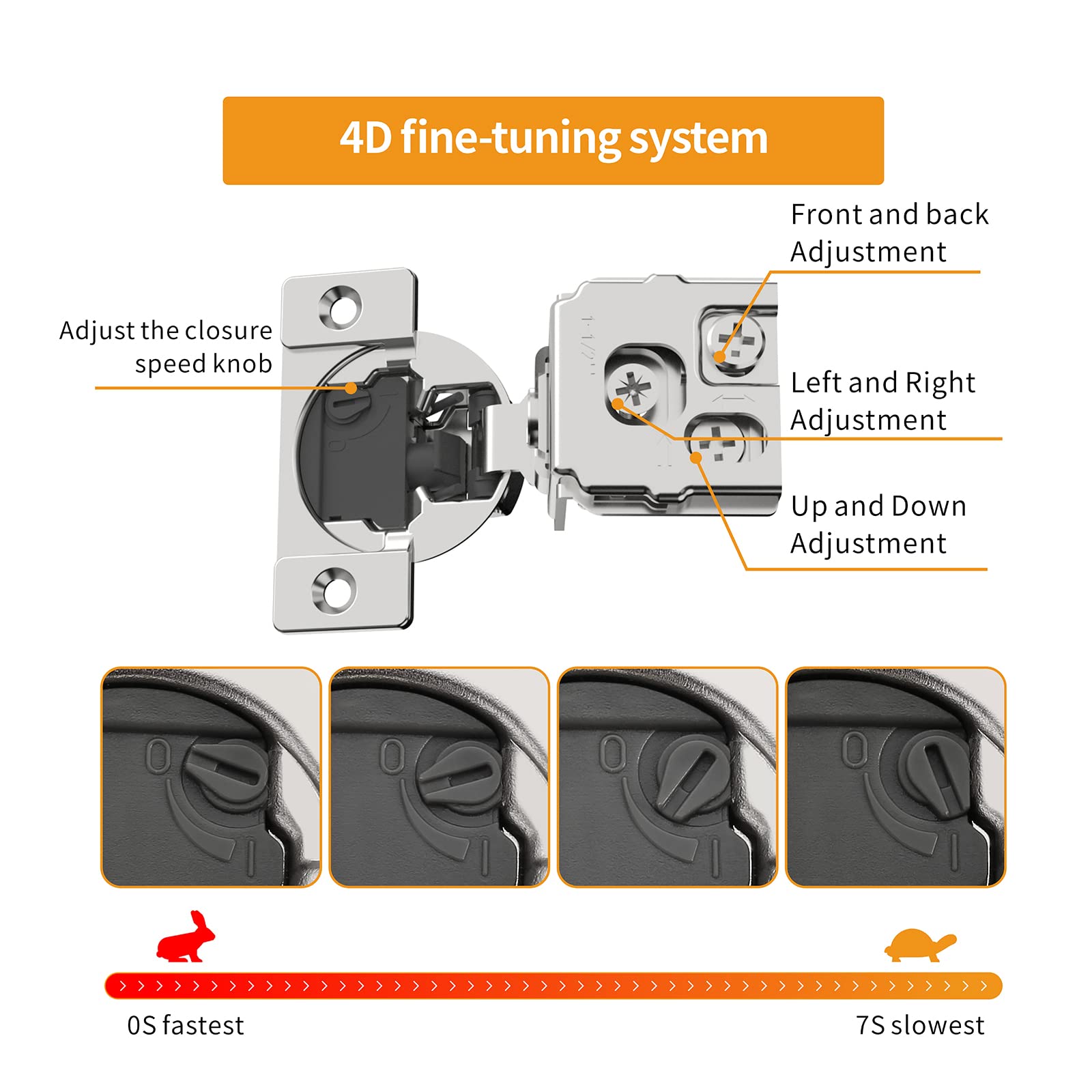

4D adjustability for a precise, flawless fit

The 4D upgrade lets you tailor each door in four dimensions: vertical, horizontal, depth, and closing speed. A simple screwdriver turn adjusts everything from alignment to closing behavior, with the ability to set closing speed anywhere from 0 to 7 seconds. This helps ensure doors don’t sag and glide smoothly, even after years of use.

• Vertical and horizontal tweaks help conceal gaps on imperfect frames.
• Depth adjustment aligns doors flush with the cabinet face.
• Closing speed control lets you choose a gentle or more decisive close to suit your space.

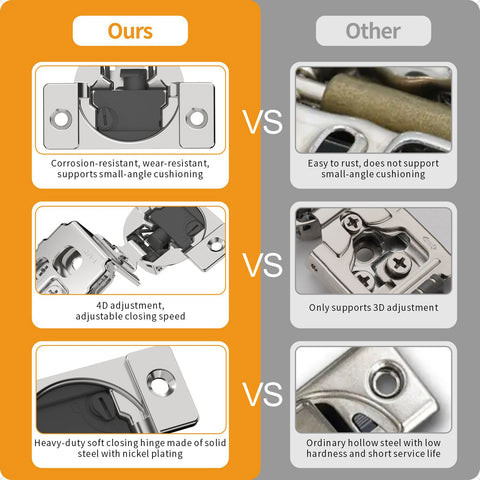

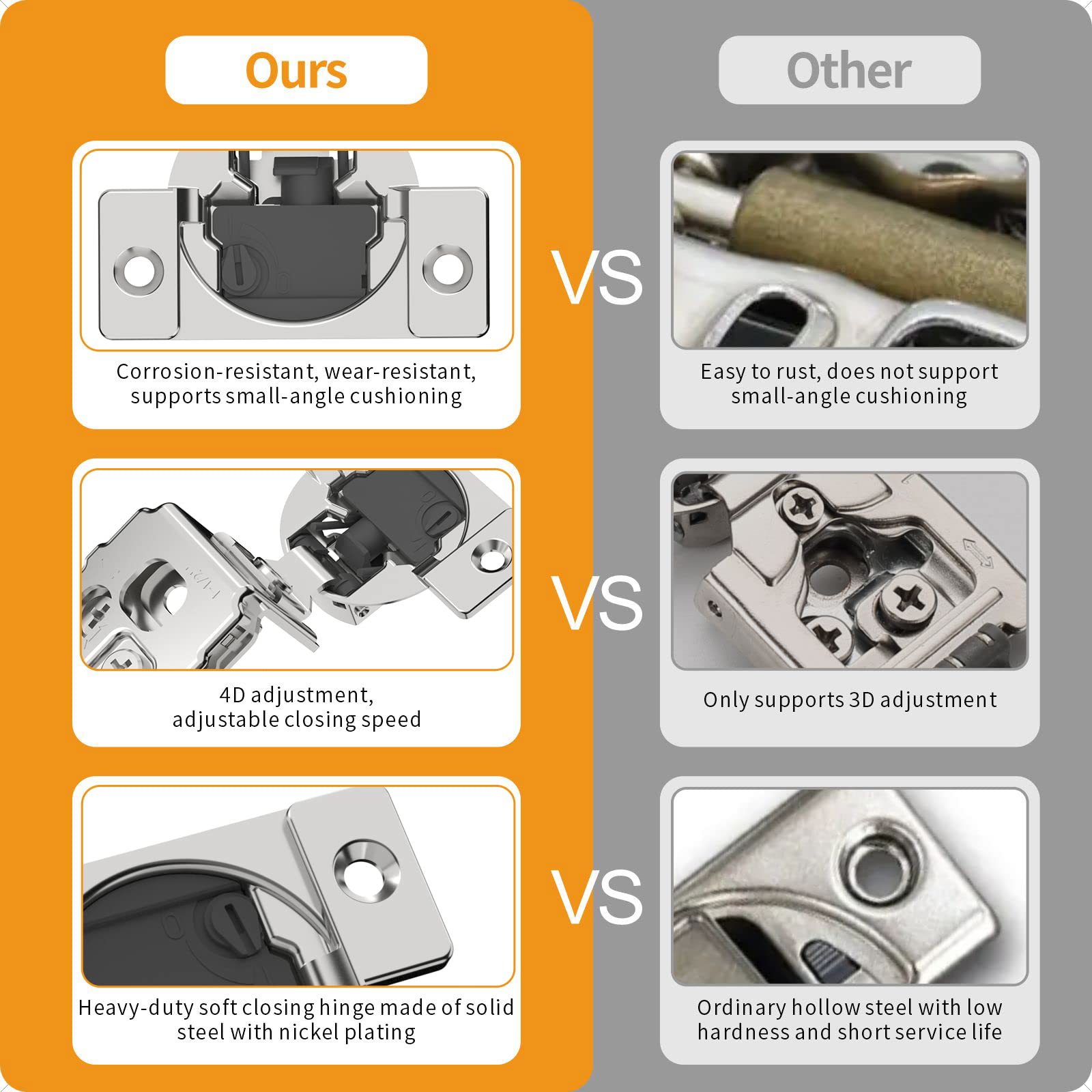

Durability, finish, and trusted testing

These hinges use high-quality steel with a double electroplated nickel finish and brass-plated bottom components. The combination provides a durable, premium appearance suitable for kitchens, wardrobes, TV cabinets, bookcases, and more. They are designed to withstand frequent use and maintain their look and function over time.

Chibery carries ISO9001, ISO14001, BHMA, KCMA, and SGS certifications. In testing, the hinges withstood over 100,000 open-close cycles and survived more than 48 hours of salt spray exposure, offering peace of mind for long-term installation projects.
