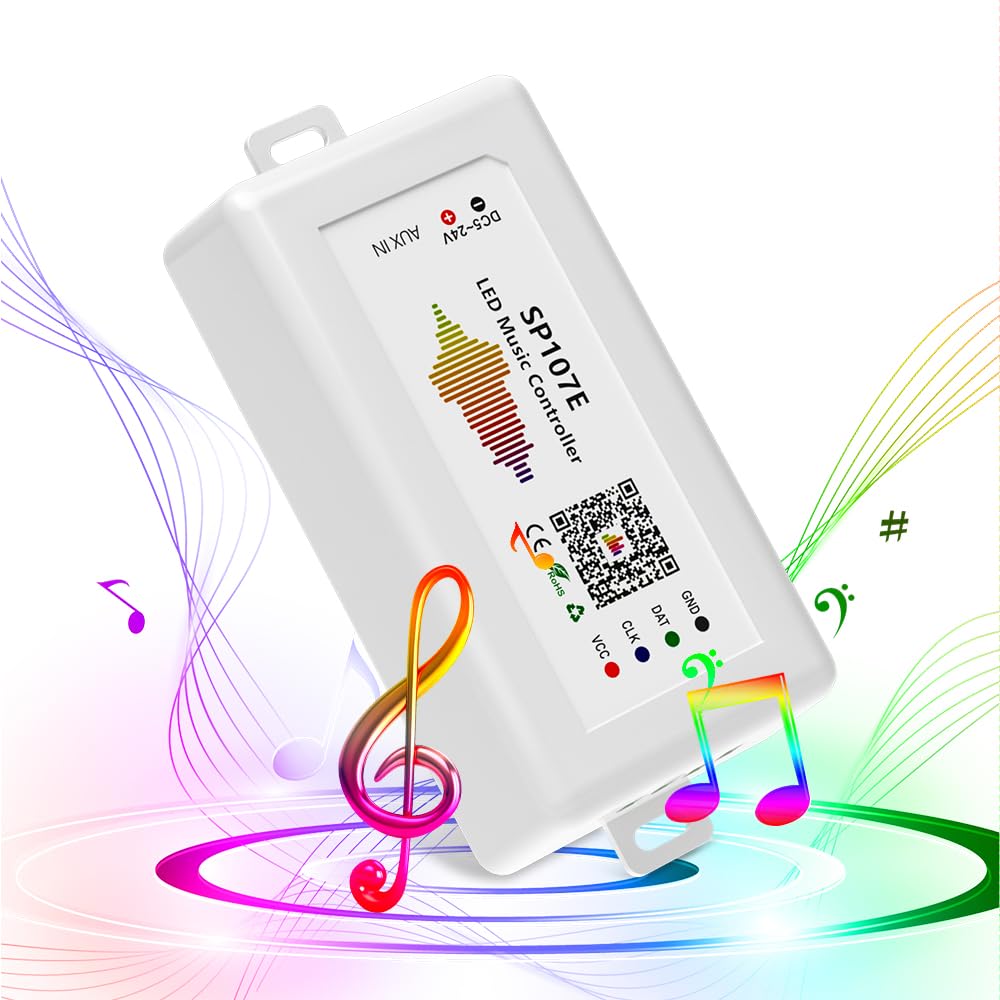

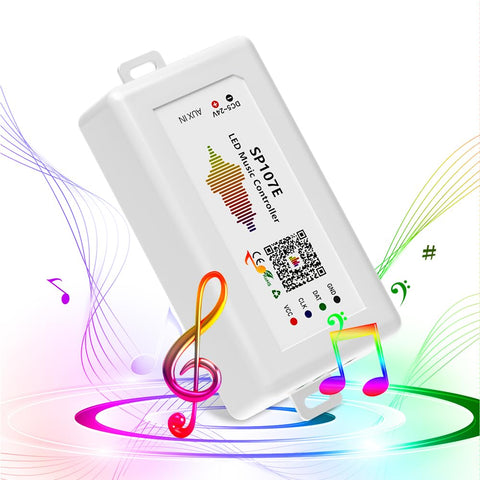

BTF-LIGHTING FCOB RGB Bluetooth LED Controller for WS2811/WS2812B/WS2813 – Music Sync & DIY Friendly

Overview

The BTF-LIGHTING FCOB RGB Bluetooth LED Controller is designed to be a versatile hub for vibrant RGB projects. It supports a broad spectrum of ICs, including WS2811, WS2812B, WS2813, SP107E, and more, allowing you to drive LED strips, matrix panels, and modular light setups from a single device. This controller combines ease of use with powerful customization, helping your lighting visuals feel lively and responsive without requiring a bespoke solution.

Sound-Driven and Ambient Lighting

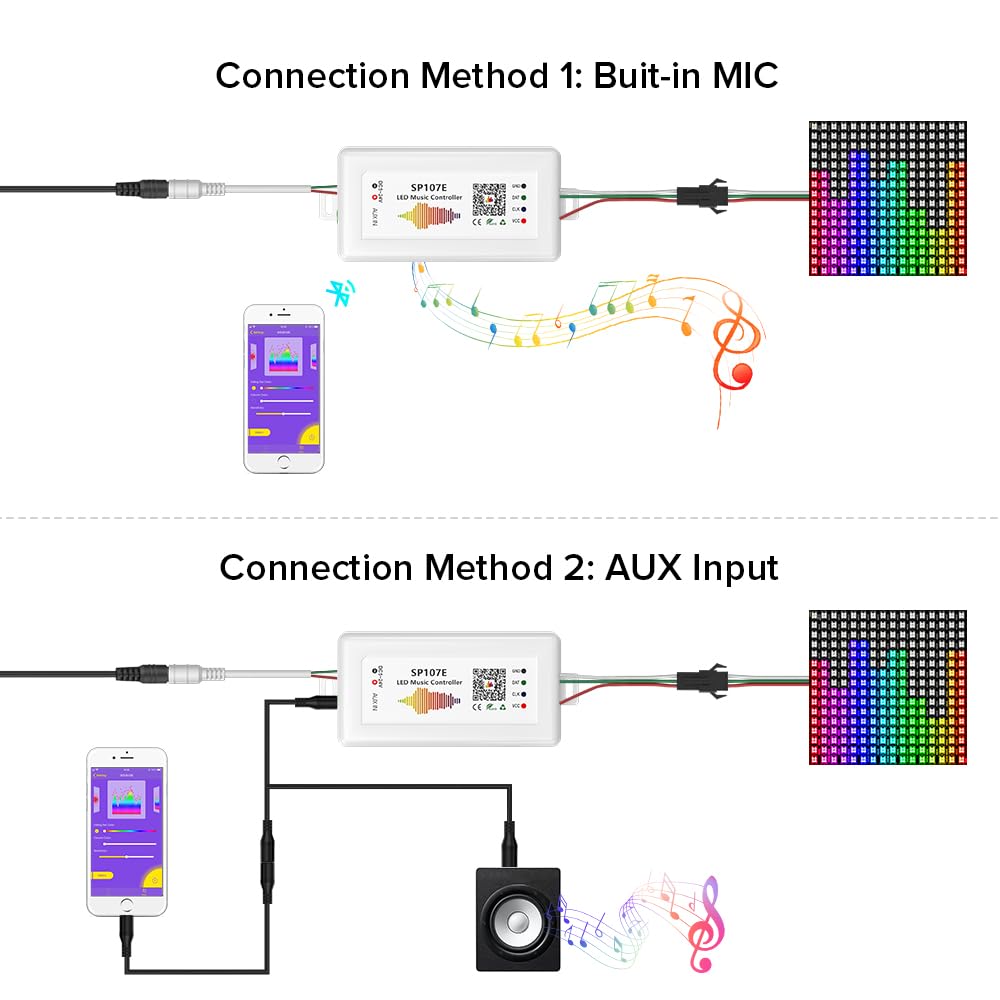

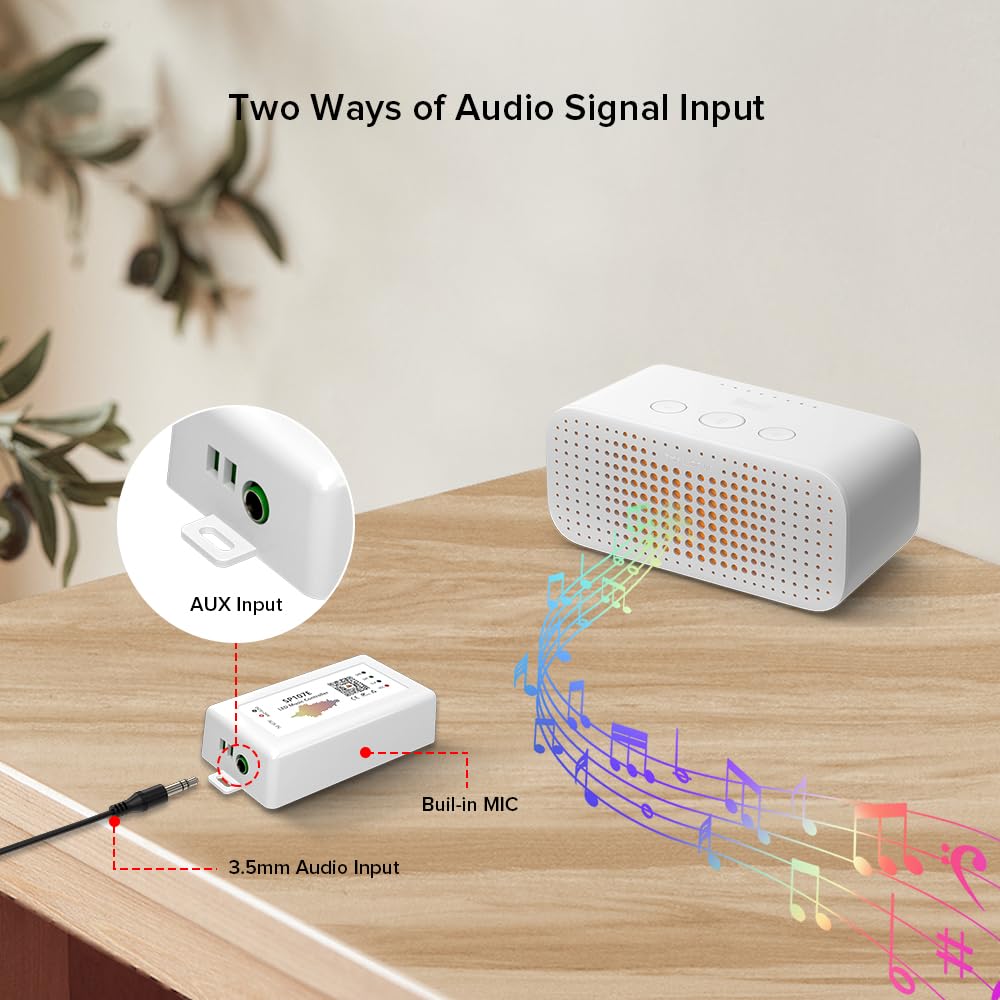

Two input modes bring sound into your visuals: a 3.5mm AUX input for external audio and a built-in microphone for real-time ambient capture. Both modes offer adjustable sensitivity so you can tailor the response to music, conversations, or environmental sounds. The result can range from subtle mood lighting to dynamic, music-synced effects that react to the room’s energy.

• AUX input and built-in microphone with easily adjustable sensitivity
• Real-time sound-responsive lighting for events, performances, or home decor
• 5V power compatibility guidance helps prevent underpowered setups

Flexible DIY and Layout Mapping

Whether you’re wiring LED strips or a matrix panel, this controller makes it straightforward to map your array. You can set the number of segments and the number of pixels per segment to match your exact hardware, supporting a wide range of DIY configurations.

• Define segments and pixel counts to suit your layout
• Broad compatibility with many RGB driver ICs beyond the basic family
• 1-year warranty plus access to a 24‑hour US online support line

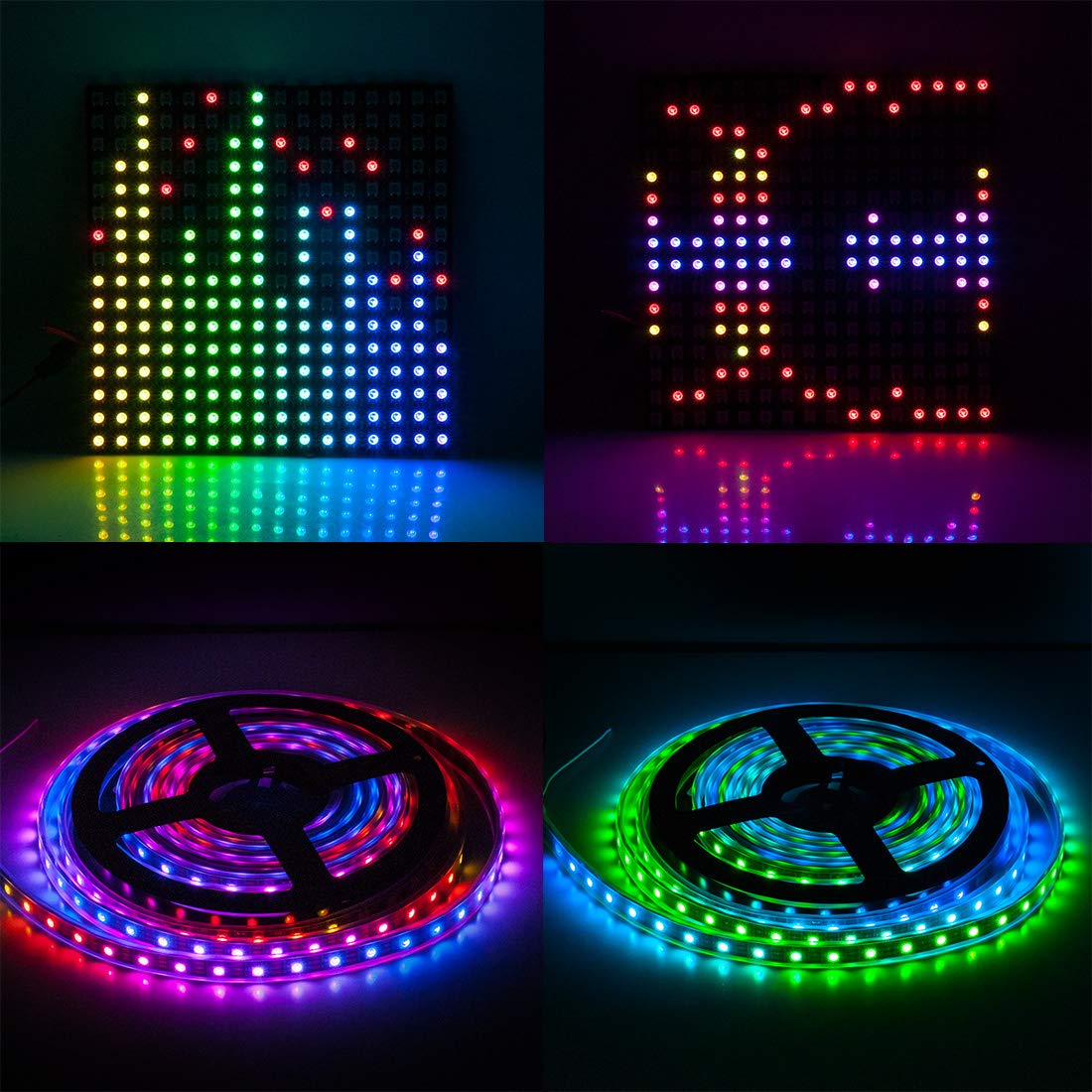

Massive Effect Library and Color Control

Explore an expansive library: 30 music-reactive effects for matrix panels, 18 music-leaning effects for strips, and 180 non-music options. You can switch between music mode and non-music mode, and the software can auto-play or be guided manually for precise timing and aesthetics.

• 30 matrix effects, 18 strip effects, 180 non-music presets
• Color calibration with 6 sequences (RGB, RBG, BRG, BGR, GRB, GBR) for visual accuracy

Fine-Tuning, Power, and Safety Tips

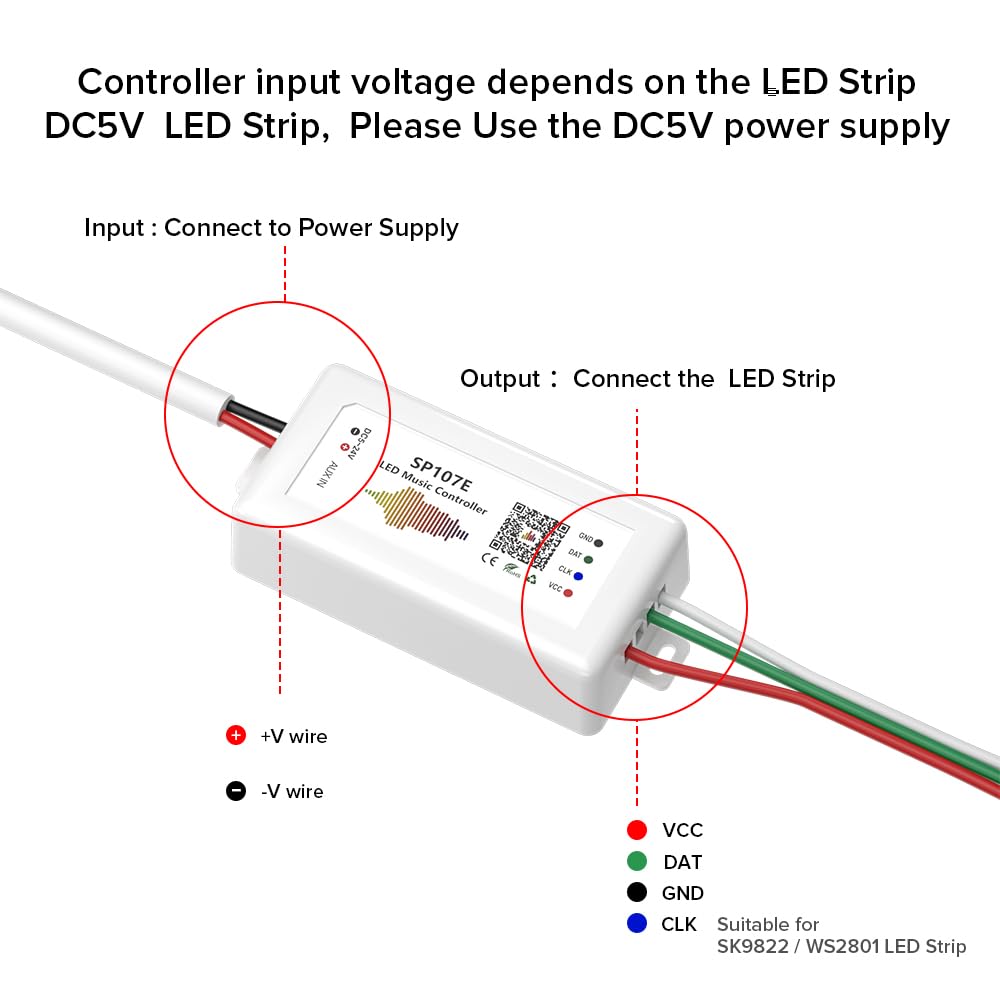

All major parameters are adjustable, including speed, brightness, pixel count, color order, and the sensitivity of audio input. When using SK6812-RGBW LEDs, the white channel can be controlled independently. Be mindful of power: lighting a single color uses about 0.1W per LED, two colors about 0.2W, and three colors about 0.3W. A strong, stable power supply helps prevent color freezing or Bluetooth disconnects. Long-term full-brightness white lighting is not the intended use for chasing rainbow effects on addressable RGB strips.

• Speed, brightness, pixel count, color order, and sensitivity are all adjustable
• Independent white channel control for RGBW LEDs
• Power planning tips help avoid color freezes and disconnects

Support and Warranty

The product includes a 1-year warranty and access to technical services, with a 24-hour online hotline for US-based customers. A color calibration feature helps ensure the app’s colors align with your real-world LEDs for consistent visuals.
