BTF-LIGHTING 5050 RGBCCT RF 2.4GHz Remote Kit – 4-Zone Tuya LED Controller for Strips

Overview

The BTF-LIGHTING 5050SMD RGBCCT RF kit pairs a 2.4GHz remote with a Tuya controller to drive PWM LED strips that use 5050SMD, 3528SMD, 5630SMD or FCOB COB RGBCCT configurations with six wires labeled + R G B C W. It is designed for non SPI LED strips and does not support IC-driven SPI strips like WS2812B. This setup aims to deliver flexible, room-by-room lighting control without complex wiring.

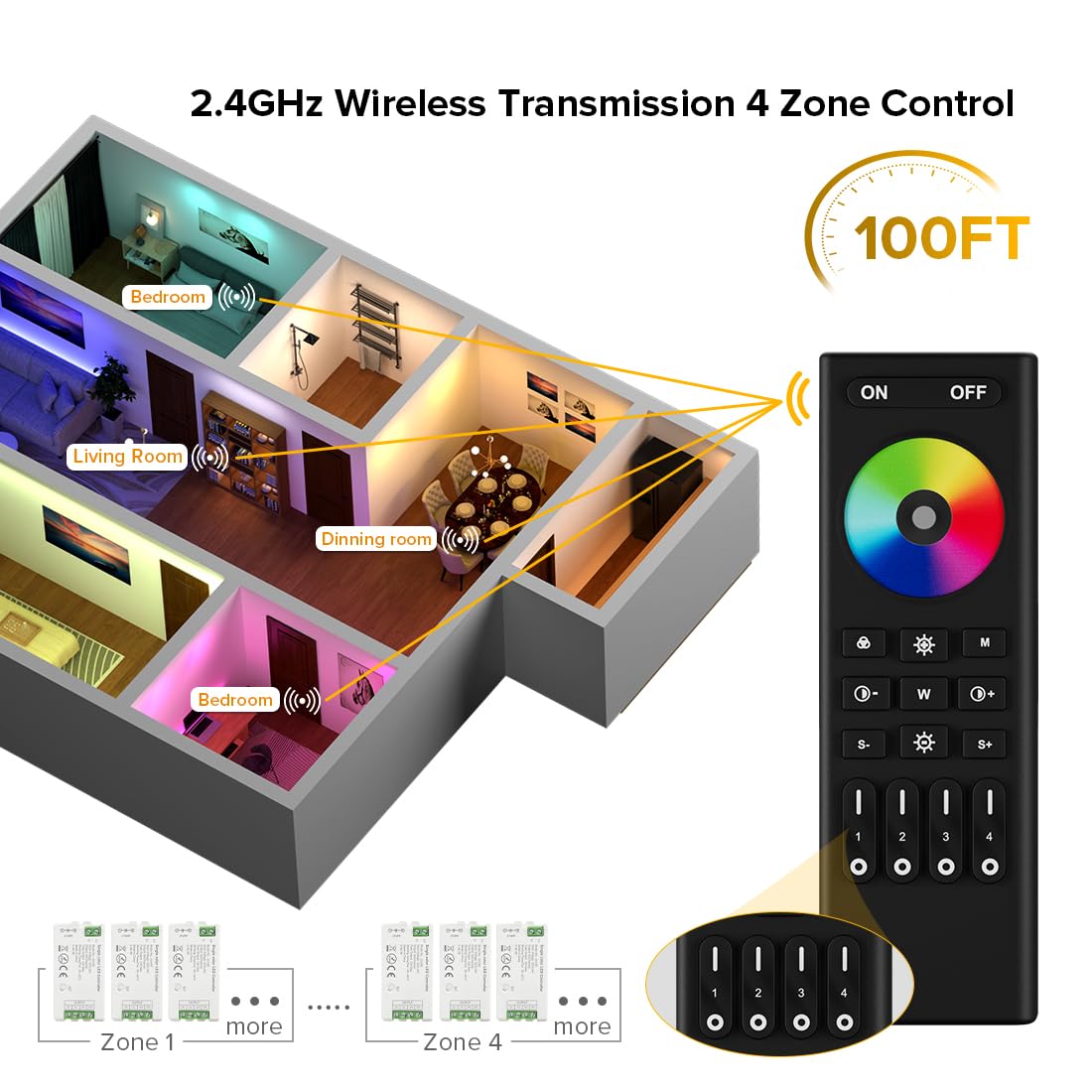

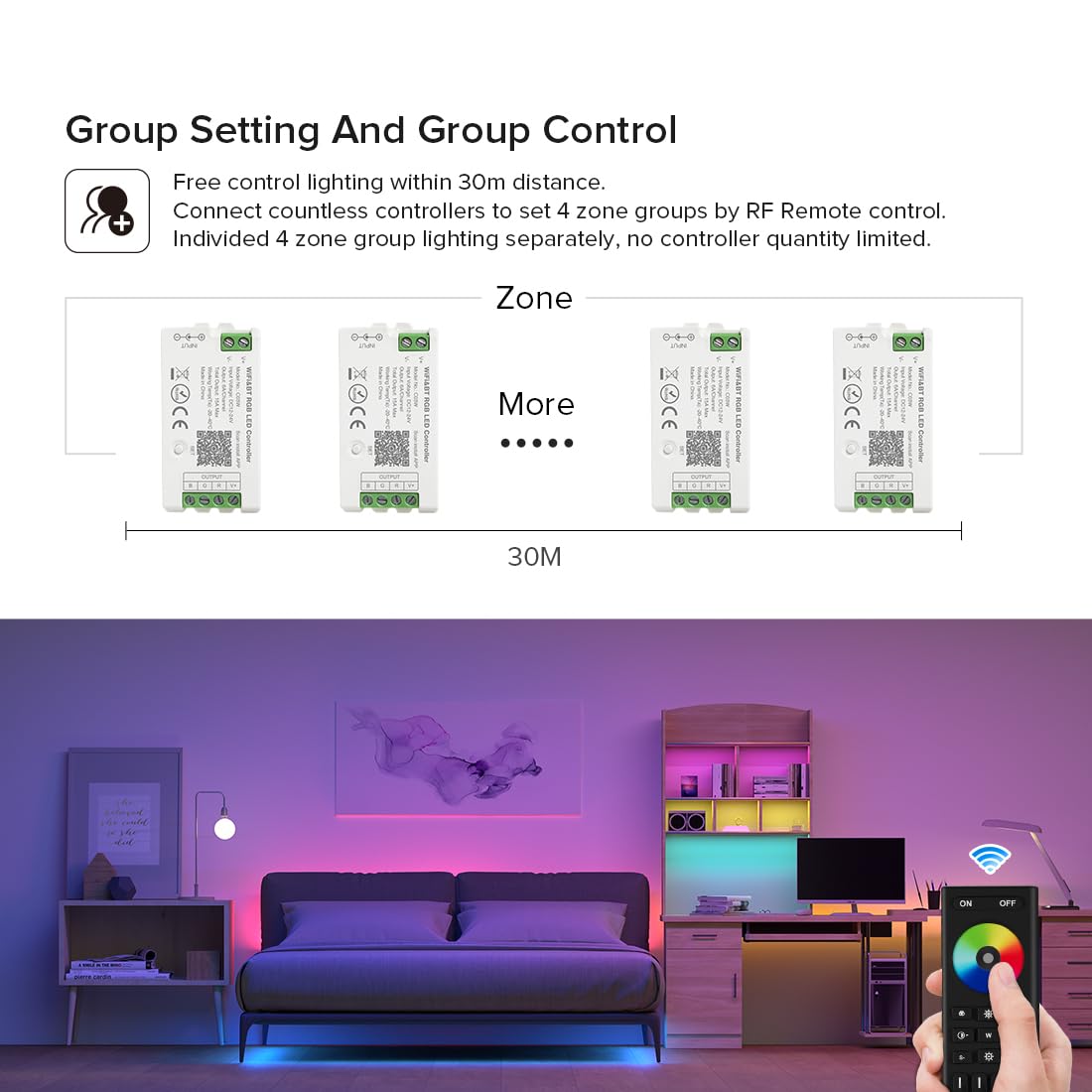

Four-zone group control

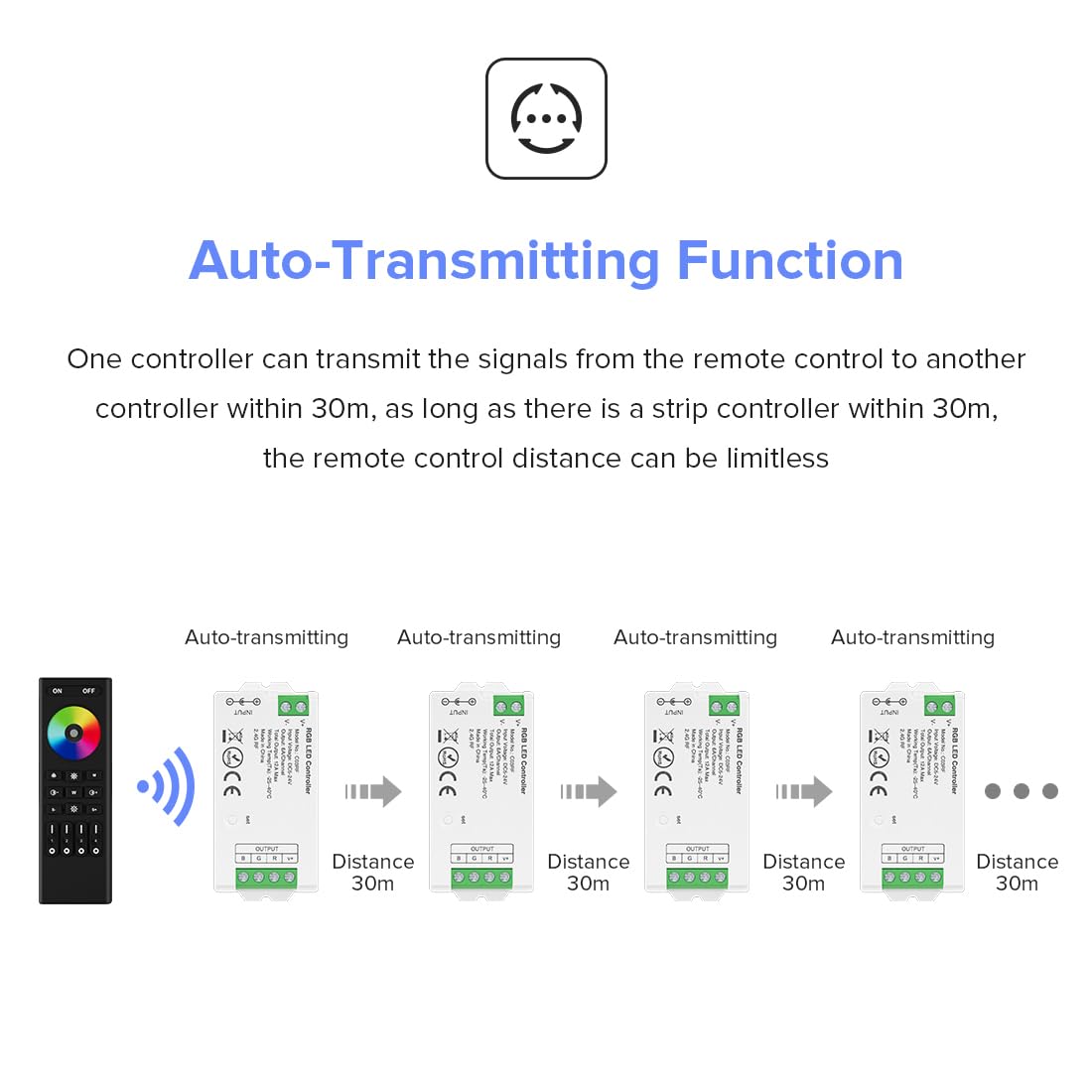

Shape the ambiance in up to four independent zones. Each remote can pair with one or more controllers, enabling separate scenes in living rooms, desks, cabinets, or playrooms. Signals are transmitted automatically, allowing synchronized adjustments as long as the controllers stay within about 98 feet in open space. You can expand by adding more controllers to extend the coverage.

Wireless operation and range

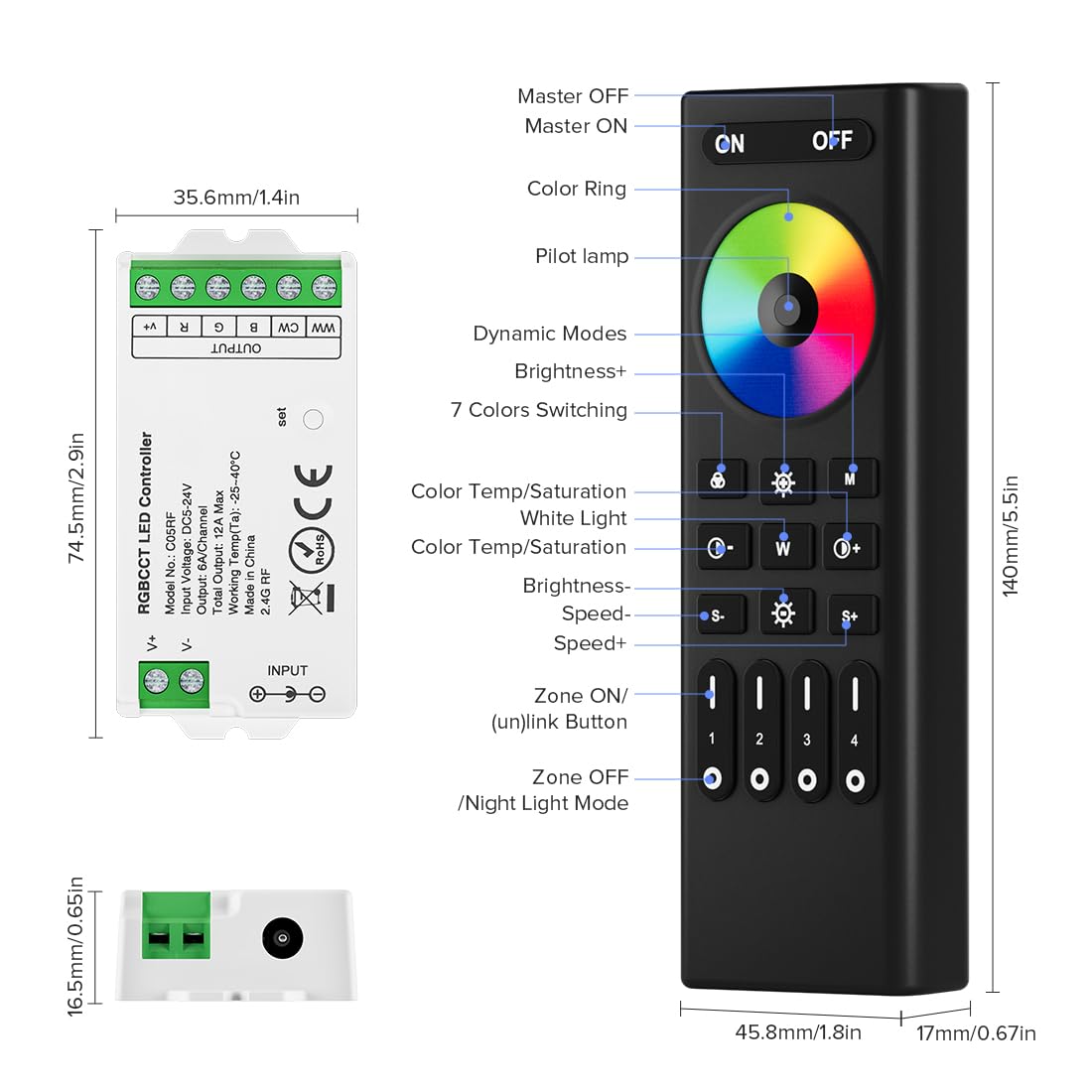

The RC03RFB remote uses reliable 2.4GHz RF transmission, delivering a practical control range up to 98 feet outdoors. The wheel-style control and dedicated buttons offer a simple, tactile way to adjust lighting on the fly, whether you’re relaxing, entertaining, or working on a project.

Brightness, color temperature, and color options

Fine-tune brightness and color temperature to match tasks or moods. The kit supports RGBWW and RGBCCT configurations, enabling warm to cool whites along with vivid color options for accent lighting. Create scenes that fit sunlit mornings, cozy evenings, or cinematic setups without changing hardware.

Electrical compatibility and notes

The controller supports DC 5V, 12V, or 24V LED strips. For 12V strips, use a 12V power supply. Two power interfaces impose maximum currents of 5A and 12A, respectively, so plan power delivery accordingly and avoid overloading the controller.

Smart home integration

Works with Tuya gateway GW01W (gateway sold separately). Use Smart Life or Tuya Smart apps for control, and enjoy voice assistant compatibility with Alexa and Google Home when a gateway is added. Timers, device sharing, automation, and a Do Not Disturb mode help tailor daily routines.

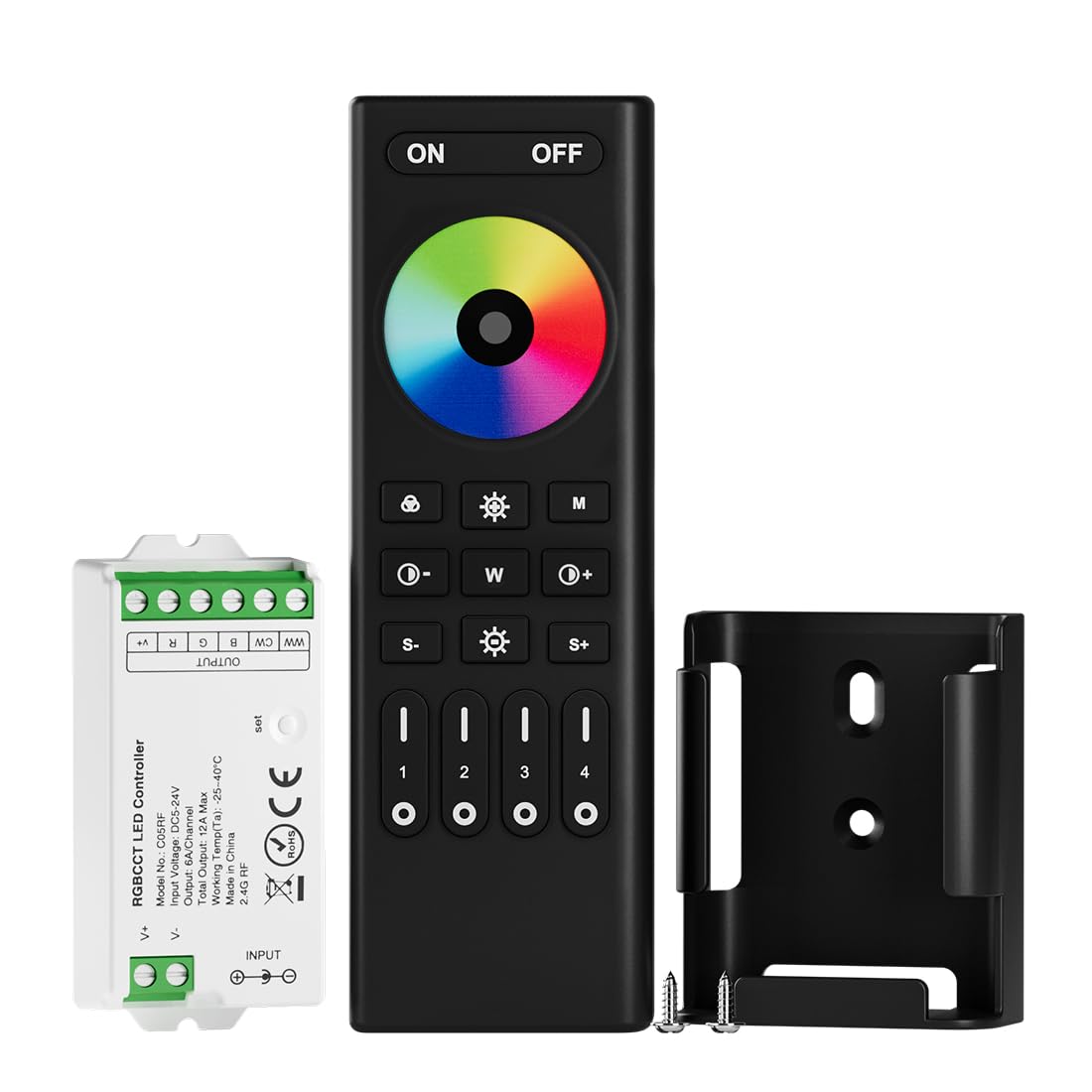

What’s in the box

Package includes RC03RFB remote, C05RF controller, mounting bracket, screws, double-sided adhesive, and user manuals. Please note that a gateway is not included; the Tuya gateway must be purchased separately.

Key benefits

• 4-zone group control for independent area settings
• 2.4GHz wireless range up to 98 feet with automatic signal sync
• Brightness and color temperature adjustment for tailored atmospheres
• Voltage flexibility across DC5V, DC12V, and DC24V strips
• App and voice control via Tuya Smart Life when gateway is added
