BTF-LIGHTING 4-Zone RF Dimming Kit with RC01RFB & C01RF Tuya Controller for 5050/COB LED Strips

Elevate your lighting with the BTF-LIGHTING RF Dimming Kit

This all-in-one bundle brings precise control to single-color LED installations. The kit pairs a compact RC01RFB remote with a C01RF Tuya controller, delivering four independent zones that you can tune to suit different scenes, moods, or tasks. With a 2.4GHz wireless connection and a thoughtful remote design, you can adjust brightness and color feel without reaching for a wall switch, making it ideal for under-cabinet lighting, accent runs, or neon rope light setups.

The setup emphasizes practical flexibility: you can manage multiple controllers within a generous range and coordinate timing across zones. The result is a streamlined, responsive lighting system that adapts to your space and routines, whether you’re dimming for a cozy evening or lighting a display area for a quick showcase.

Key compatibility and control benefits

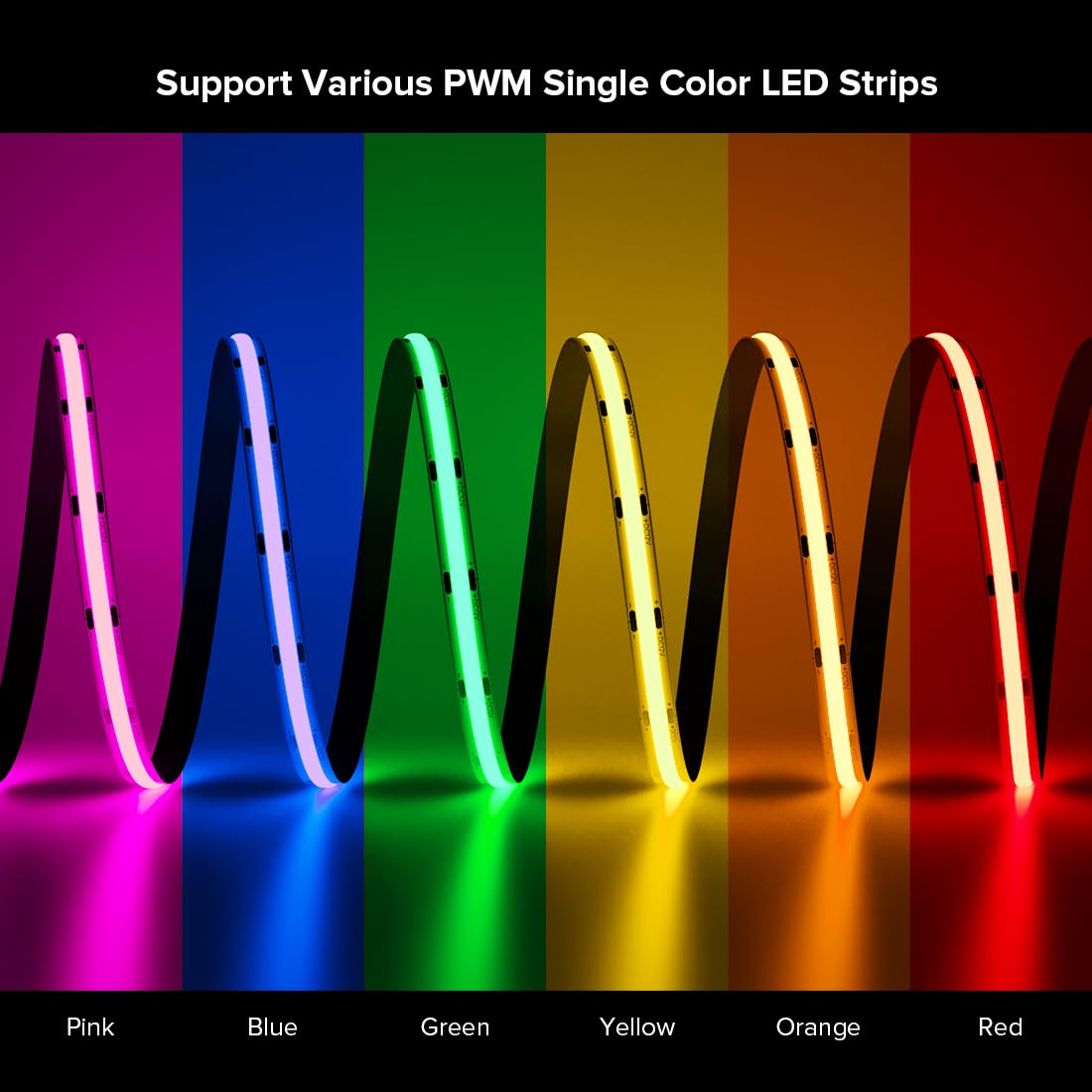

• Compatibility-friendly: PWM 5050SMD, 3528SMD, 5630SMD single-color LED strips, and FCOB COB single-color options with a simple two-wire (+V -V) connection. SPI strips with ICs (like WS2812, WS2811, WS2812B, etc.) are not supported.

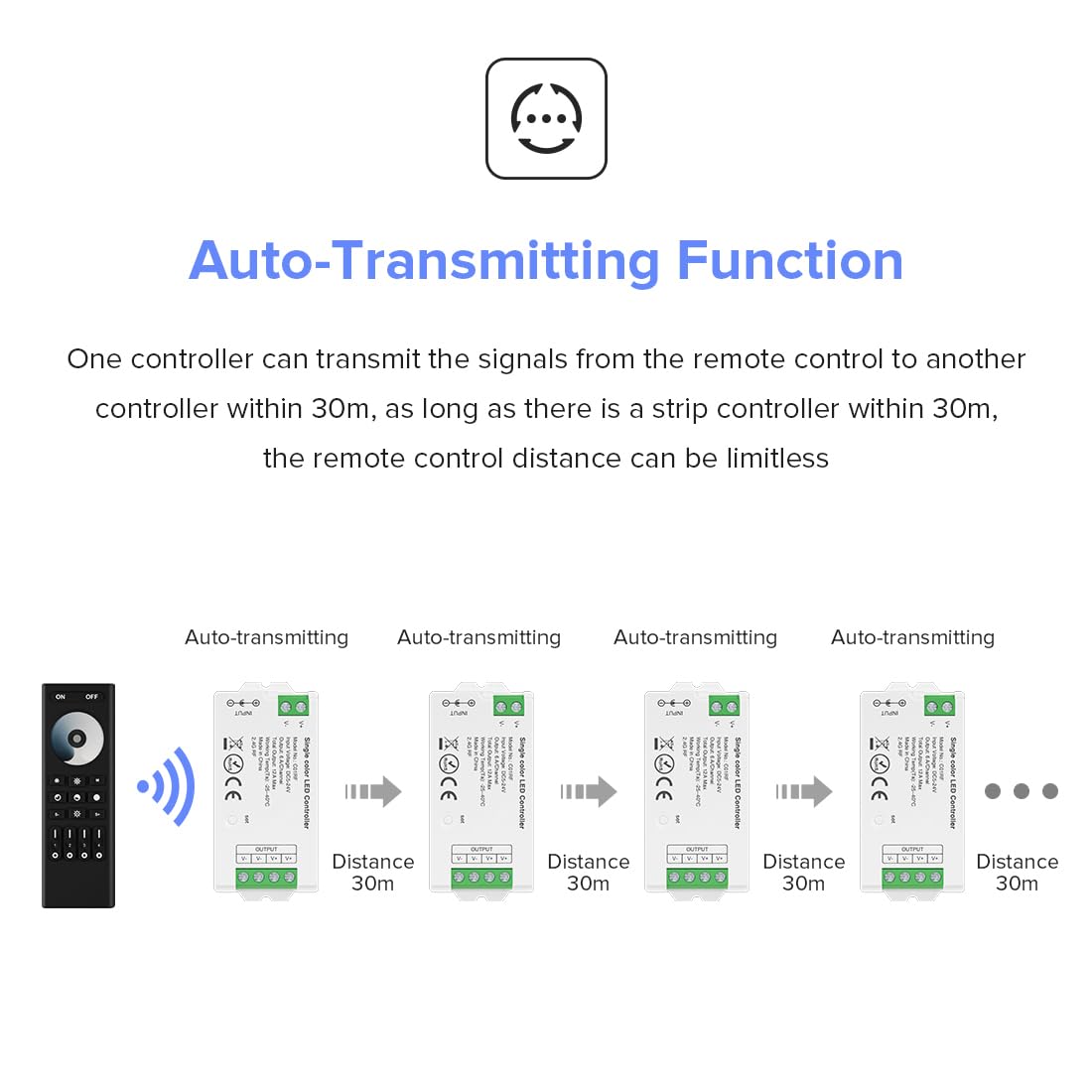

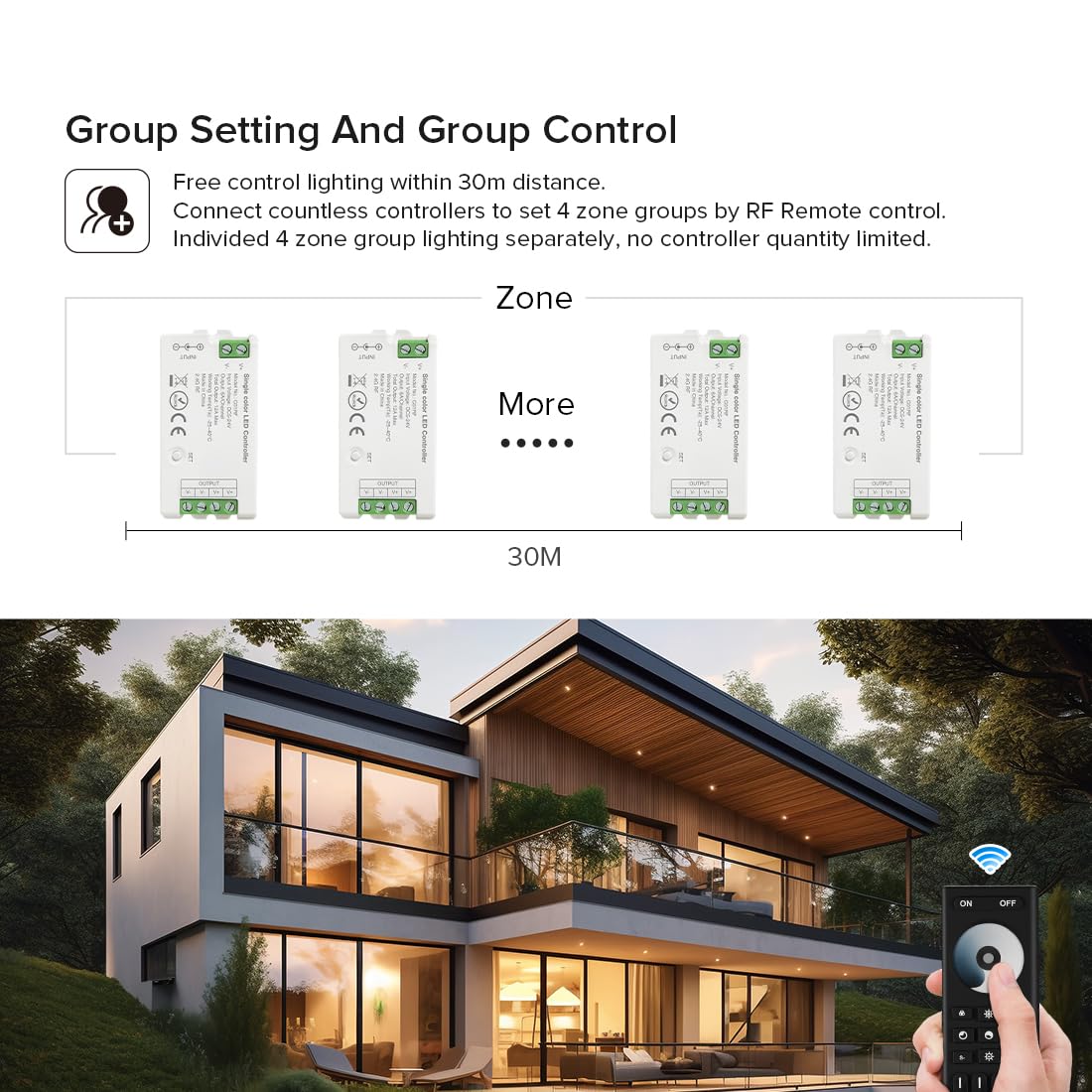

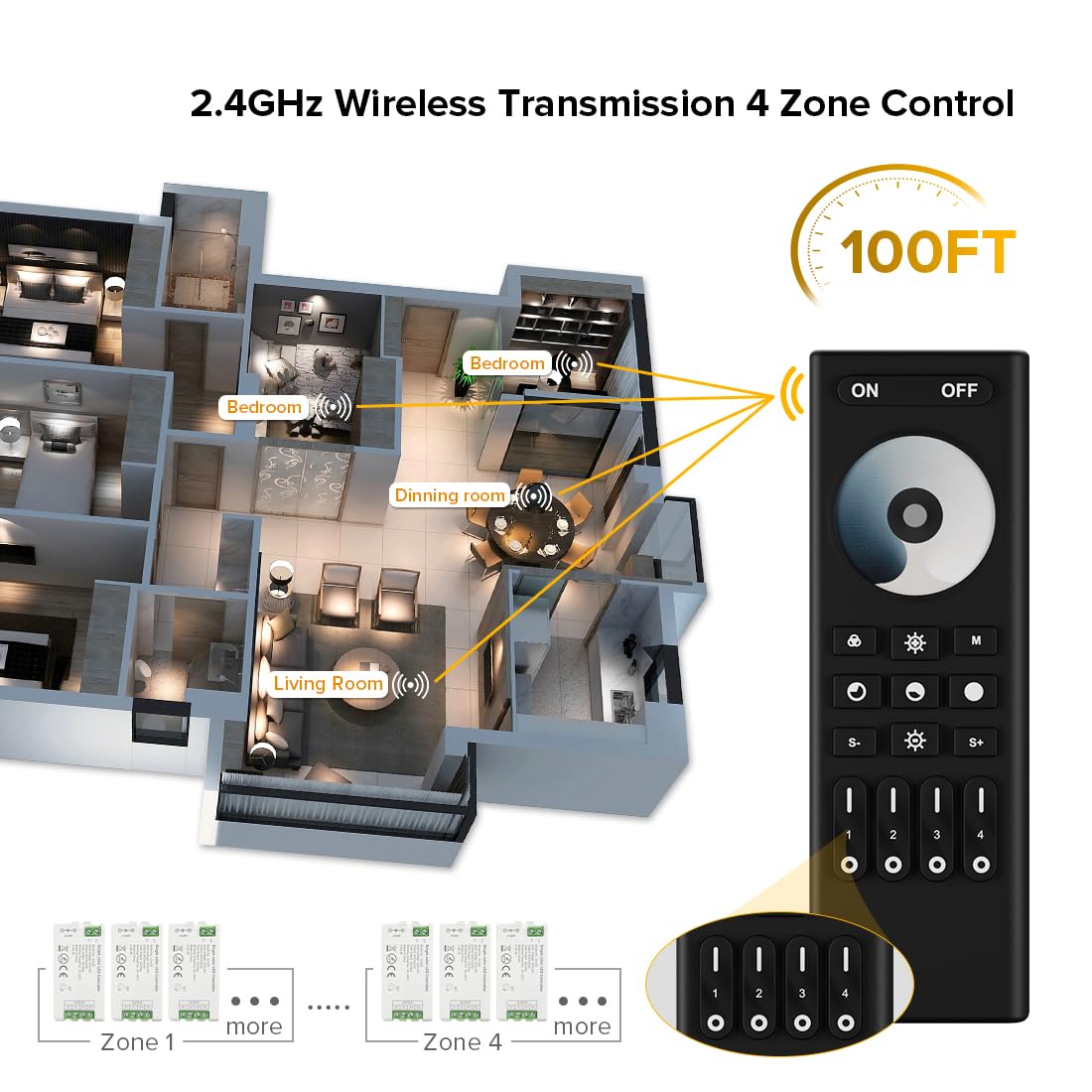

• 4-zone group control: Independently manage up to four areas. As long as controllers stay within line-of-sight or line-of-signal range (up to 98 feet in open space), you can operate each zone separately or in concert.

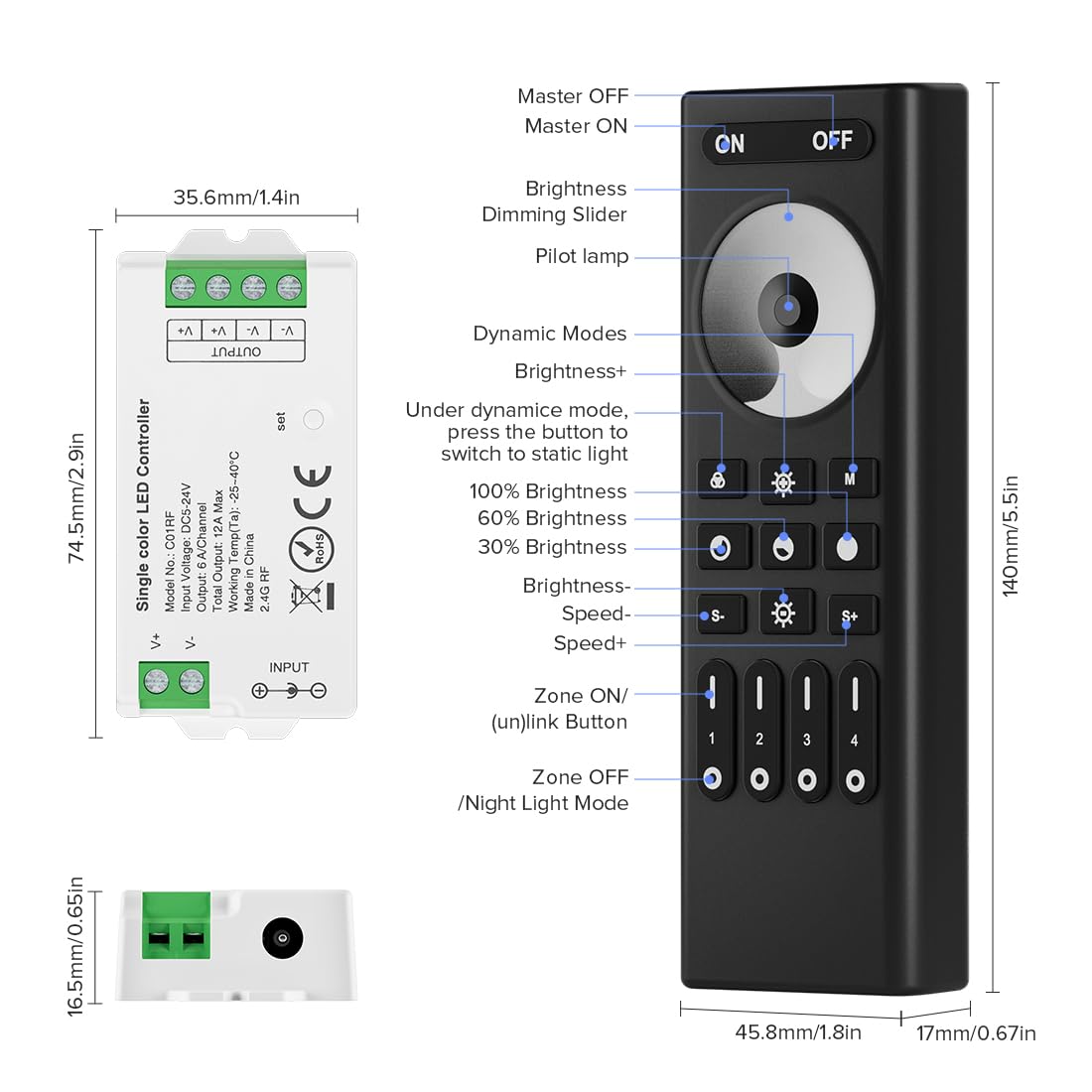

• 2.4G wireless reliability: The RC01RFB remote uses robust 2.4GHz transmission for smooth control and a tactile wheel plus button interface for easy operation.
• Adjustable brightness: Tailor light intensity to your activity or mood, from soft ambience to brighter task lighting, with a sleek, modern remote design.
• Voltage versatility: Supports DC5V, DC12V, and DC24V, with guidance to match the appropriate power supply for your strip type. Be mindful of the maximum current per power interface (5A and 12A).

Smart features and setup notes

• Tuya smart compatibility: Works with GW01W Tuya gateway (gateway sold separately) and supports Smart Life and Tuya Smart apps for remote control, scenes, and automation. Voice control compatibility with popular assistants is possible via compatible setups.
• Gateway guidance: This kit does not include a Gateway. If you plan to use Tuya/Smart Life features, you’ll need to purchase the gateway separately.

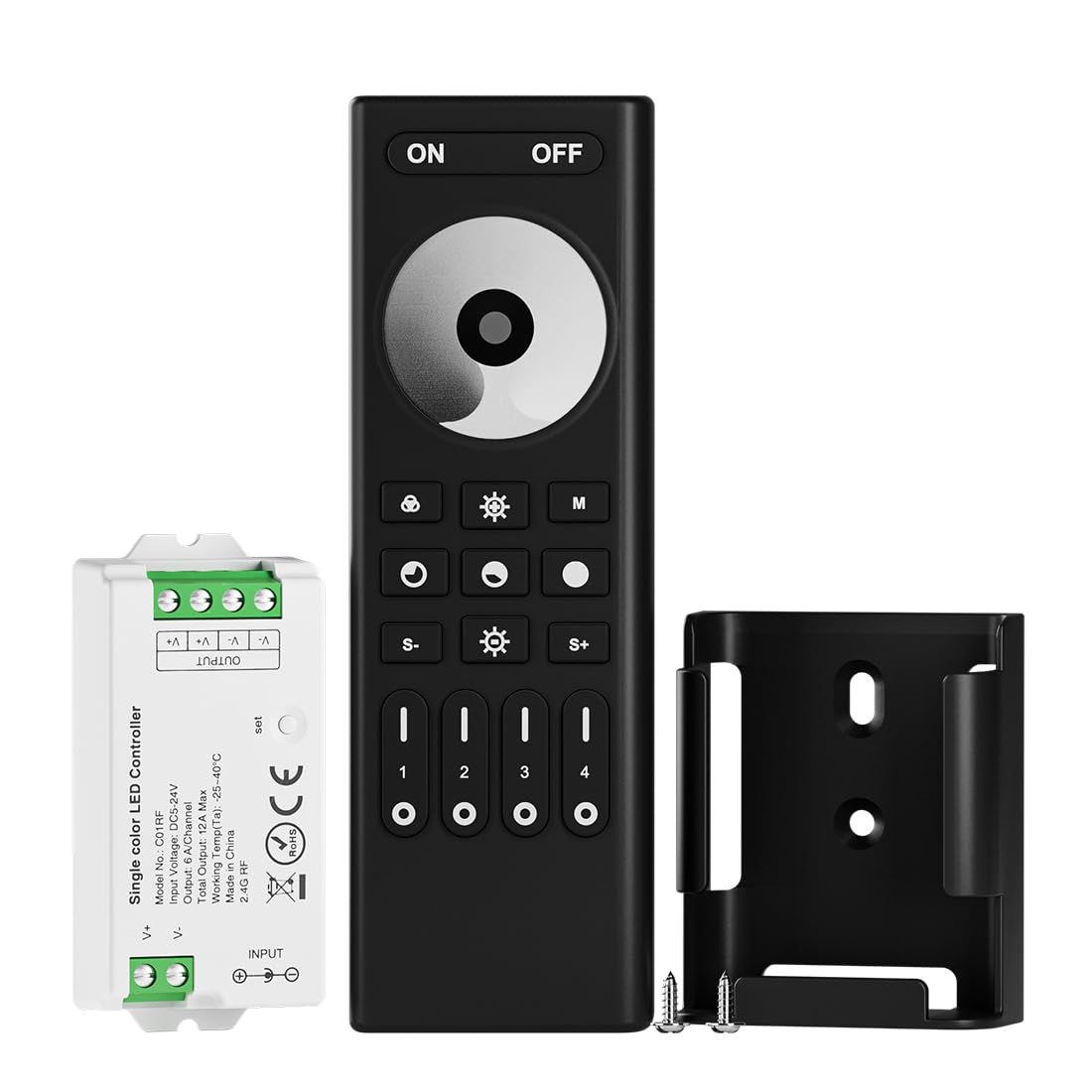

• What’s included: 1x RC01RFB remote, 1x C01RF Tuya controller, remote bracket, mounting hardware, adhesive, and manuals. A complete experience depends on your chosen gateway and app setup.

Ideal use cases

Install this kit to achieve layered lighting along shelves, coves, or a neon rope light line. The four zones let you illuminate different sections independently, enabling warm accents for evenings and brighter task lighting for workspaces without swapping components. The combination of simple remote control and app-based options supports flexible daily routines and weekend showcases alike.
