Bonuci 2 Sets Electronic Drain Valve Kit — Automatic 110V Timed Tank Drain for Air Systems

Overview

The Bonuci 2 Sets Electronic Drain Valve Kit offers automated condensate management for compressed air systems. With a rugged brass main body and a reliable 110V timer, it is designed to handle regular drainage without manual intervention. The included braided hoses are built to resist wear and kinking, helping you route the lines with confidence.

How it works

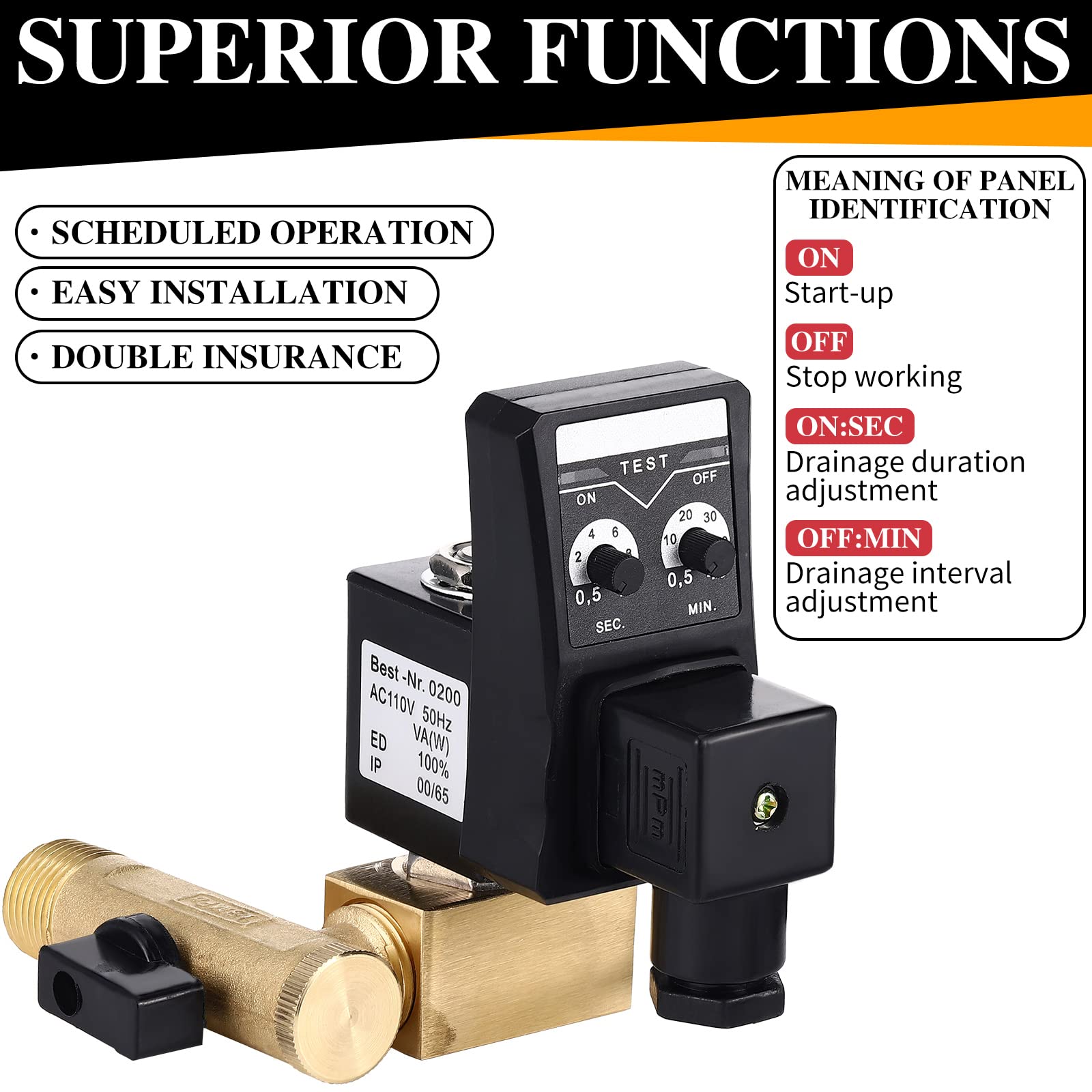

The two-way direct-acting valve discharges condensate at programmed intervals. You can tailor the drainage duration from 0.5 to 10 seconds and set intervals from 0.5 to 45 minutes, so the timing can align with your system’s cycle and environment.

• Programmable timing gives you flexible control over when condensate is released
• Brass construction and pre coated thread sealant tape help create secure, leak‑resistant connections
• Supports 1/4 inch or 3/8 inch NPT drain valves for versatile installation

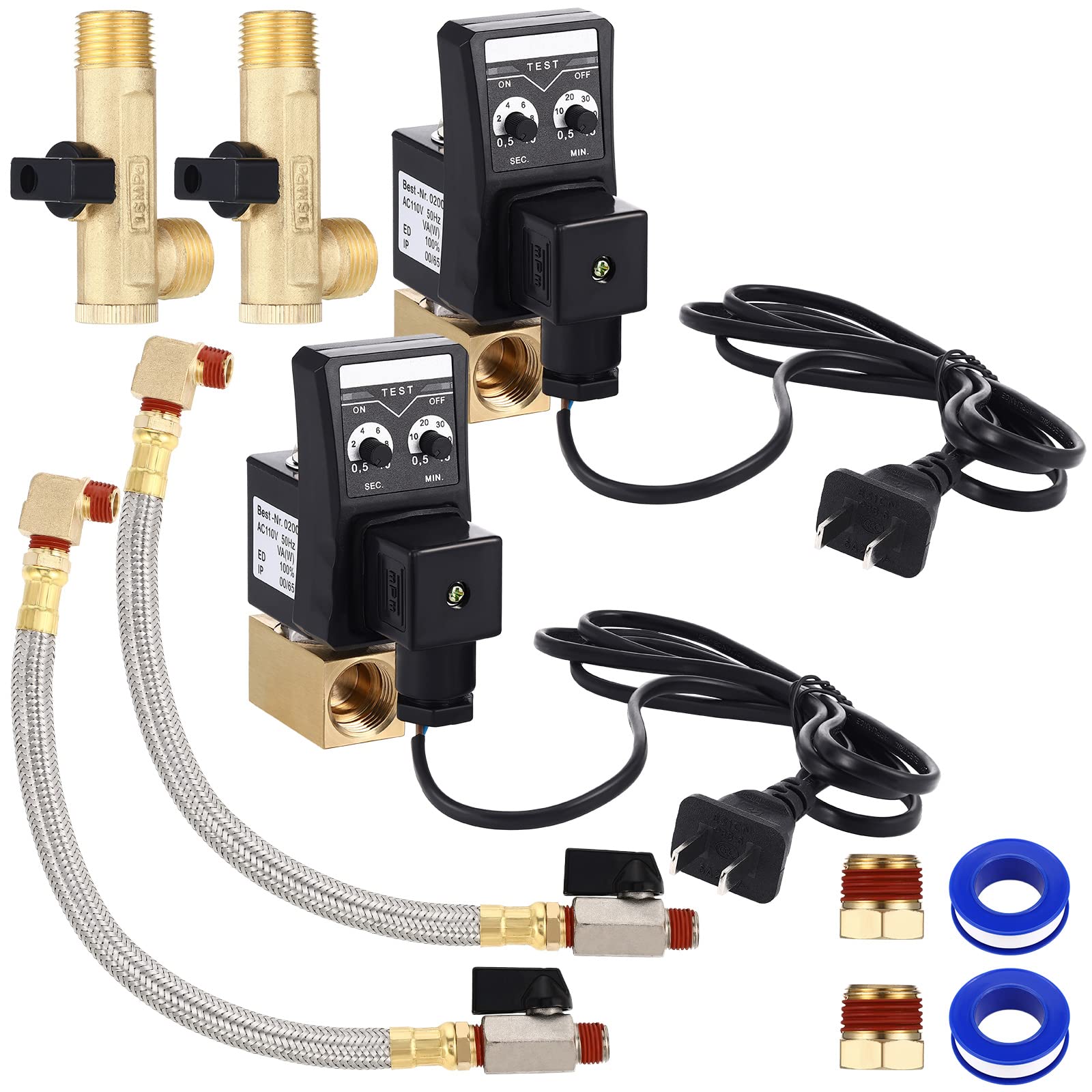

What’s included

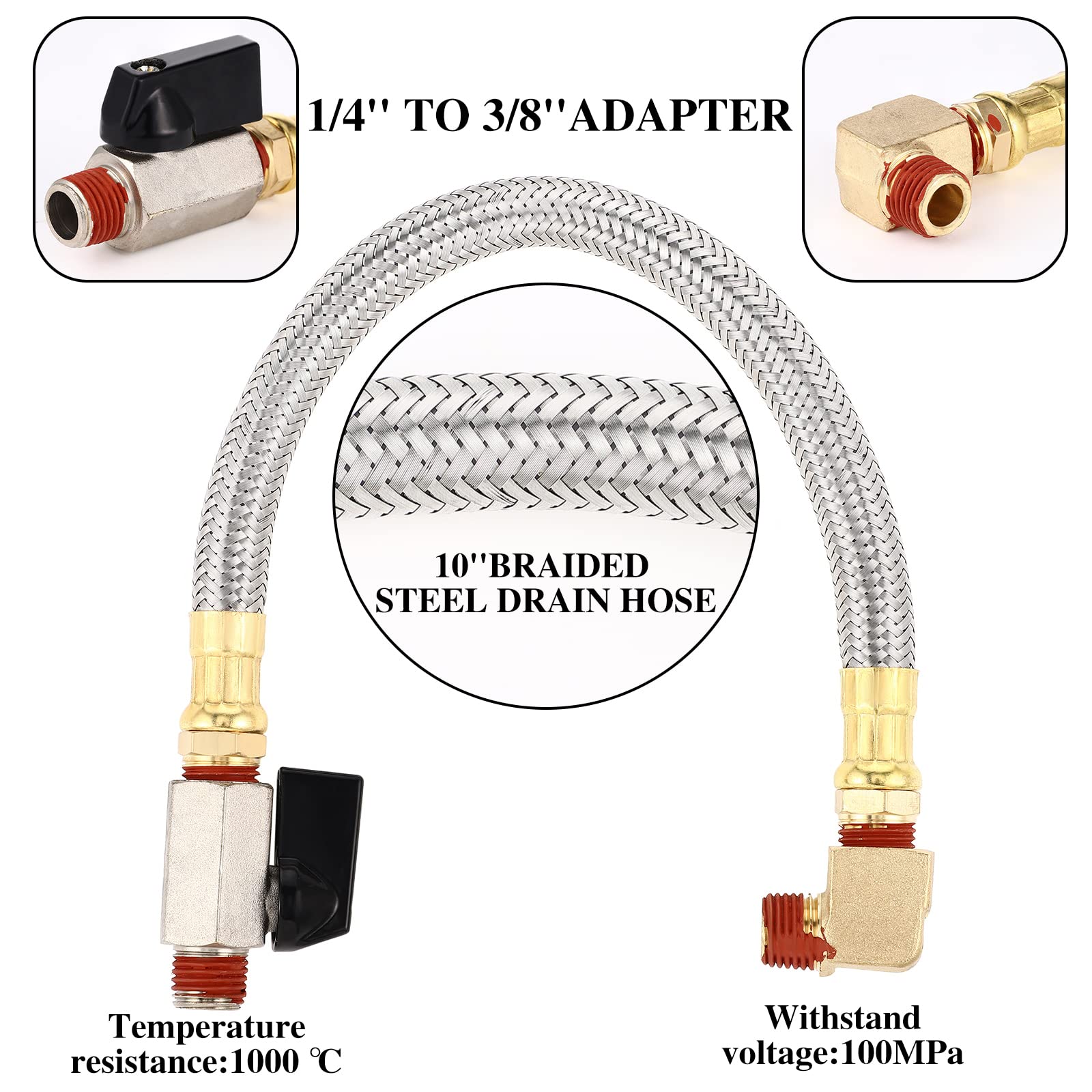

• Two complete drainage kits per package, each with braided steel hoses
• 1/4 inch NPT and 3/8 inch brass adapters
• Pre-coated thread sealant tape for easy, durable installation

Specifications and typical uses

Working pressure up to 175 PSI; blasting pressure up to 475 PSI; temperature tolerance up to 200 °F. This kit is well suited for air storage tanks and drip legs in garages, workshops, and small factories where condensate removal is part of routine maintenance.

Note: The timing is programmable, and the device operates on standard AC power. While it is built for reliable operation, actual results depend on your system configuration and operating conditions.

Installation and maintenance tips

Place the valve where it is easy to access for inspection. Tighten fittings with the supplied thread sealant tape and check for wear on the braided hoses periodically. Replace any damaged components to maintain a secure setup.

Use case ideas

In a small shop, automate condensate drainage on two lines to free up time for other tasks. In paint booths or precision airflow setups, reduced moisture can help maintain stable pressure and cleaner lines over time.
