Baomain CN101A Time Switch Relay – 28-Program LCD Timer (12V In, 200-250V Out)

Smart timing for lighting and equipment

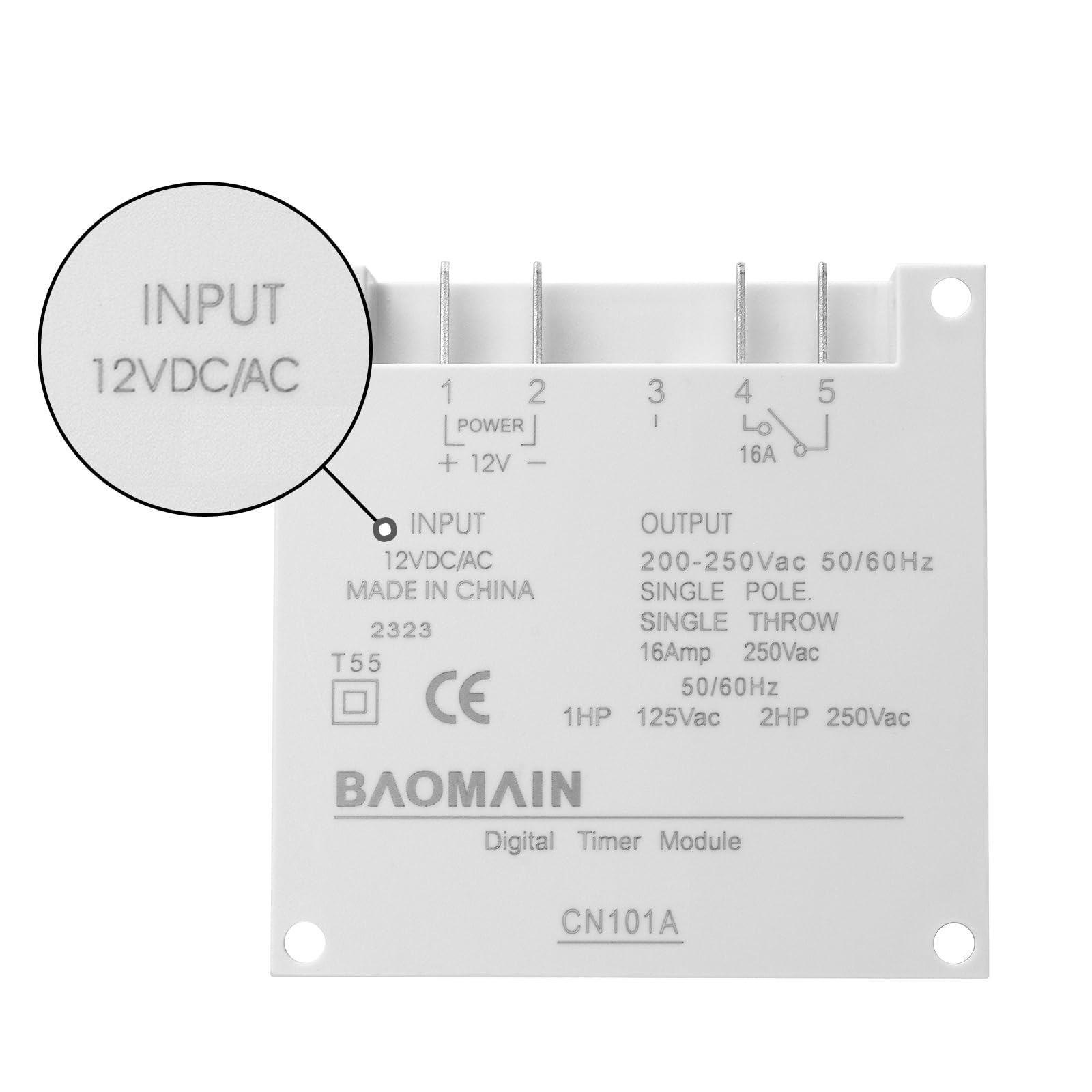

The Baomain CN101A Time Switch Relay delivers precise, dependable timing for a wide range of loads, using a 12V DC/AC control input to switch up to 200-250V at 16A. With 28 on/off programs, you can design daily or weekly routines that fit your space without manual intervention. The flexible scheduling can adapt to weekdays, weekends, and seasonal changes, enabling you to align lighting and devices with your office hours or home activities.

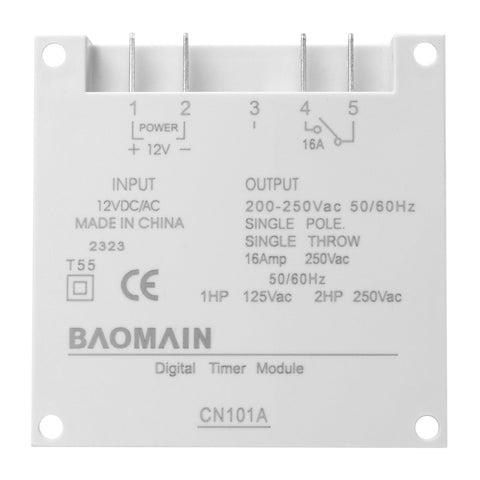

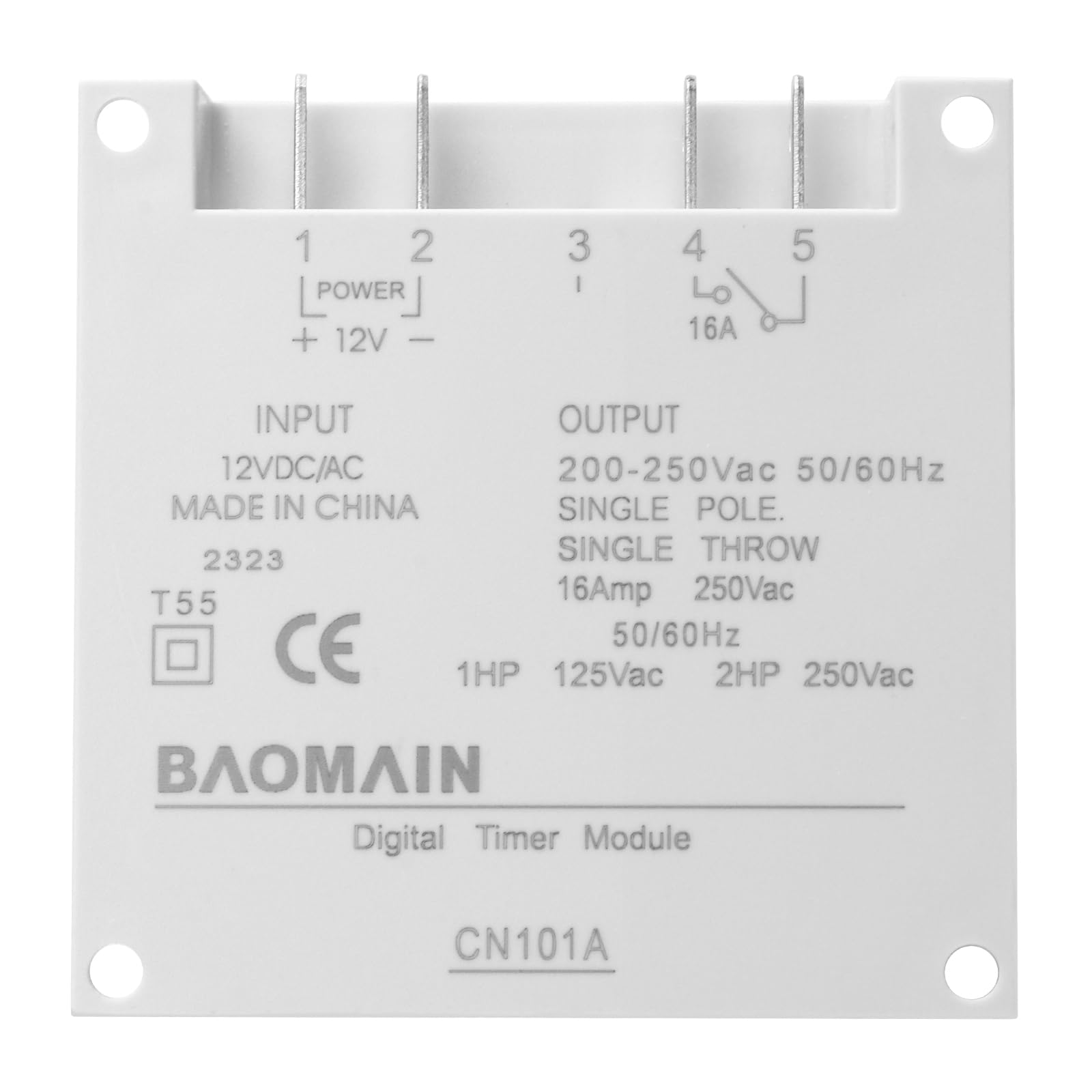

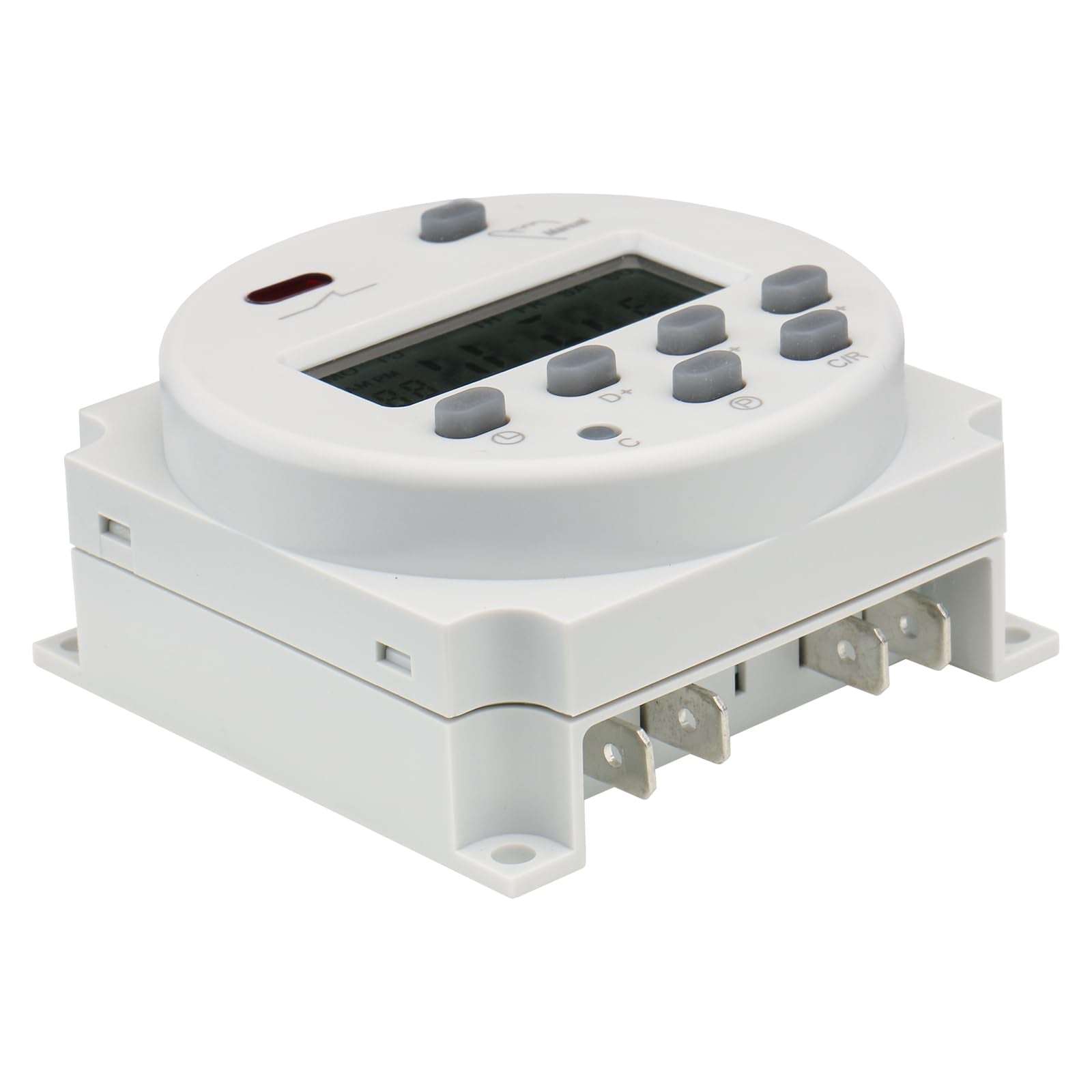

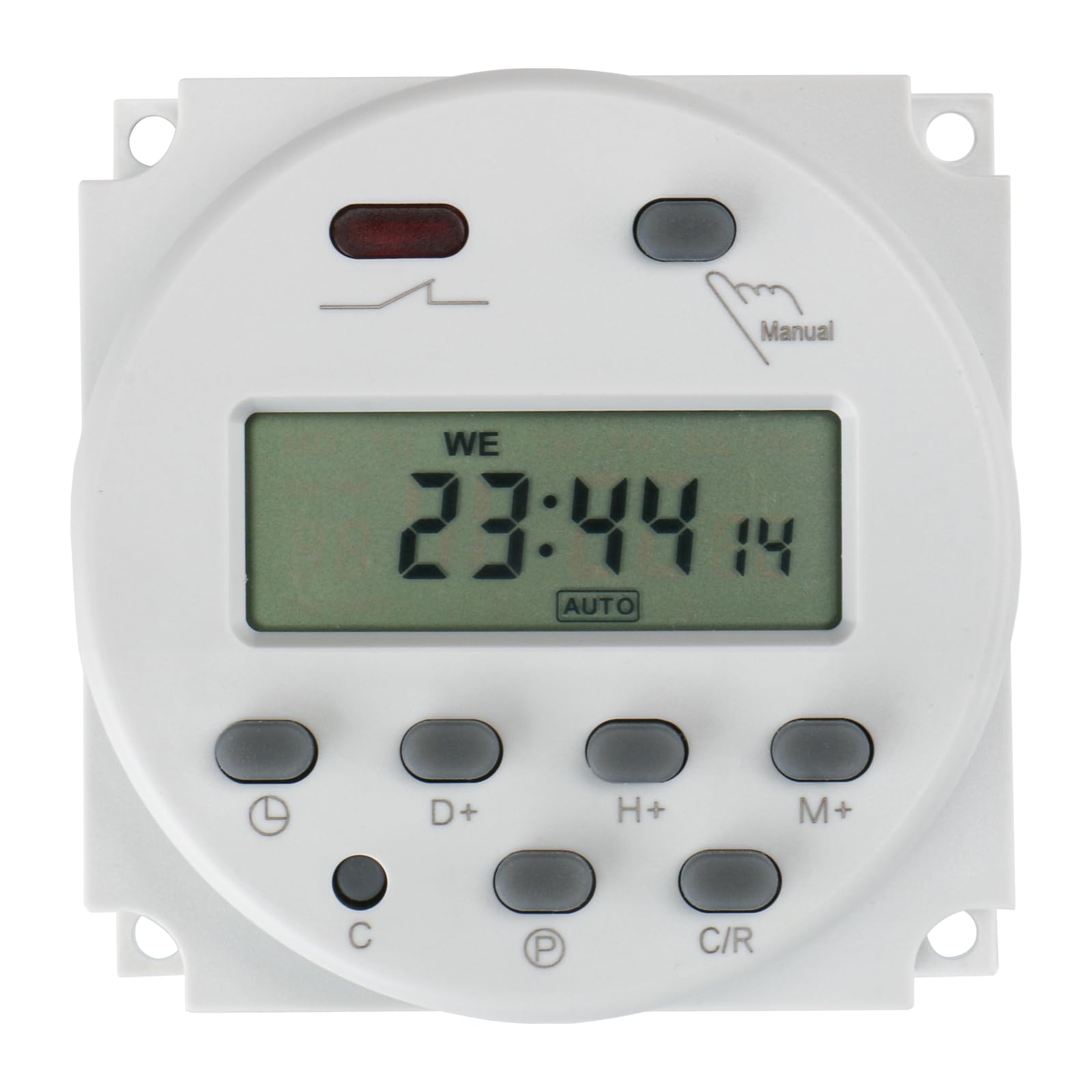

Designed for real-world use, this timer features a clear backlit LCD that remains readable in bright daylight or dim corners. The slim panel-mount design fits standard control panels, with a 4 pin layout compatibility that makes installation straightforward for upgraded systems or DIY projects. The interface presents current status at a glance, helping you confirm you have activated the right program.

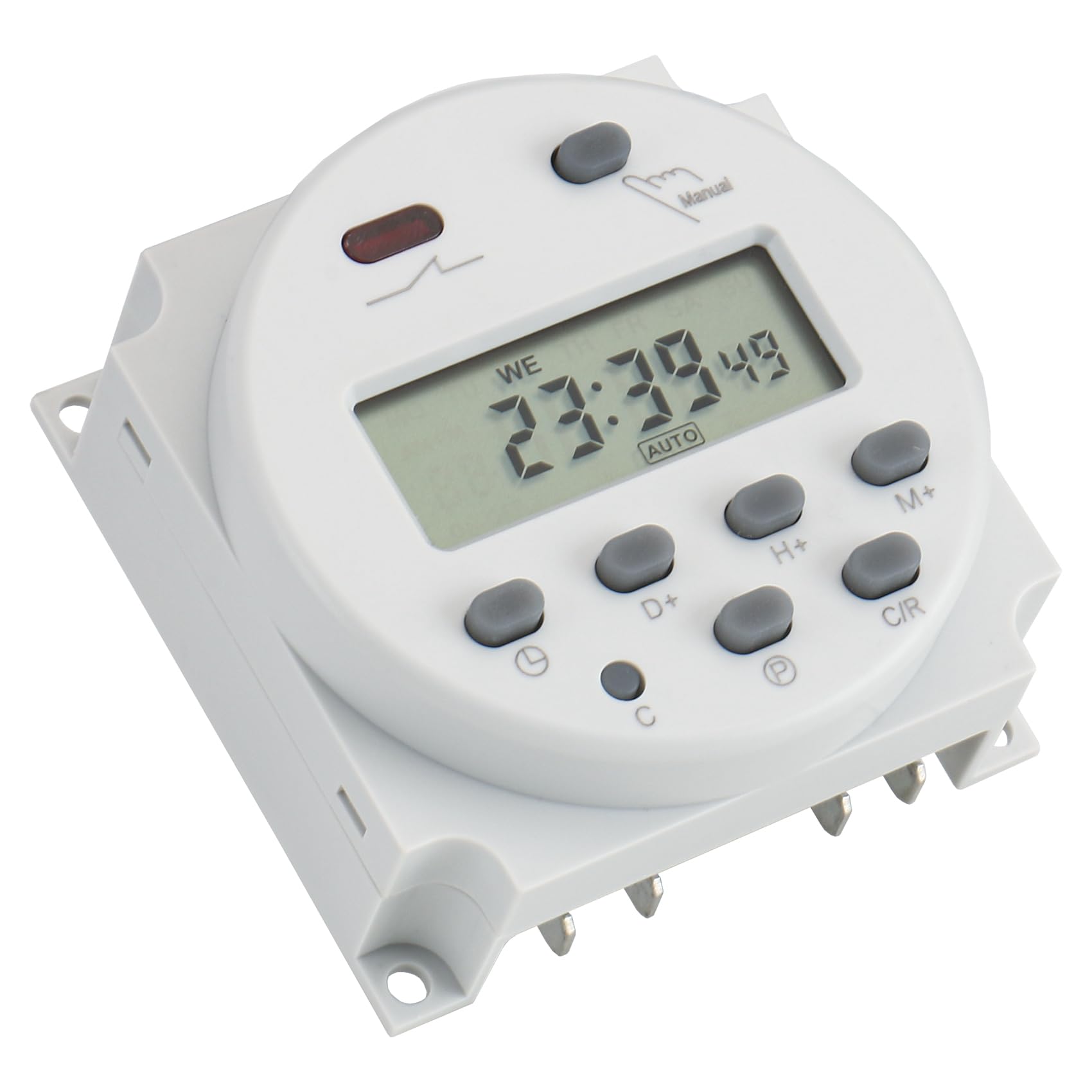

One standout benefit is the built in lithium battery backup. While the timer runs from main power, the backup preserves your schedules and helps you recover quickly if a brief outage interrupts programming. This means your routines stay consistent while you focus on other tasks. The timer's dual mode operation automatic scheduling and instant manual control lets you test a new setup or override a schedule for temporary needs without reprogramming.

Key capabilities

• 28 customizable on/off programs for daily or weekly control
• Automatic scheduling plus instant manual override for flexibility
• Clear, backlit LCD interface for easy setup and live status checks
• Standardized panel mount design with a secure 4 pin connection
• Built in lithium backup to preserve settings during power loss

Practical use scenarios

• Home lighting automation schedule lights to match routine and ambience
• Small business or showroom automate signage display lighting or equipment cycles
• Workshops and studios control fans pumps or tools with precise on/off timing
• HVAC fan and equipment control synchronize operations with daily activities
• Event or seasonal lighting run lights for holidays or events without manual adjustment

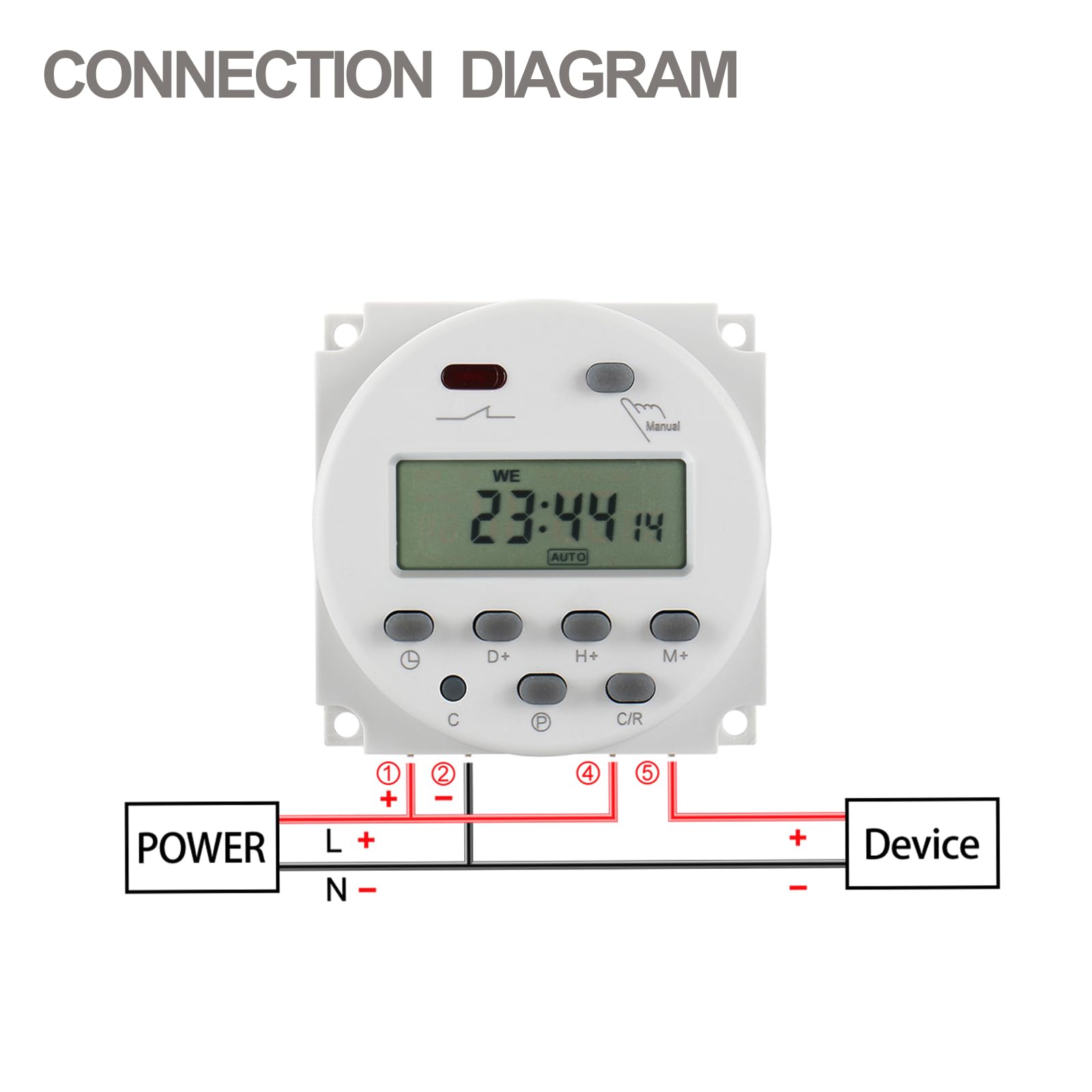

Getting started is straightforward. Connect the 12V input to power the control logic, wire the 200-250V output to your device, and program your desired on/off times via the LCD screen. If you experience a power interruption, the built in backup helps keep your schedule in place until power returns. For best results, sketch your daily routine, assign times, and test the outcomes during a low traffic period.
