AWBLIN Wire Tracer — Automotive Open & Short Finder, Circuit Tester 6-42V

Overview

The AWBLIN Wire Tracer is a versatile tool designed for automotive and general electrical wiring tasks. With a voltage range of 6 to 42 volts, it helps you quickly identify where circuits open, where wires may be broken, and where current leaks could be lurking. This compact kit is built for DIY enthusiasts, professional electricians, and technicians who value accuracy and efficiency when diagnosing wiring points without risking insulation damage.

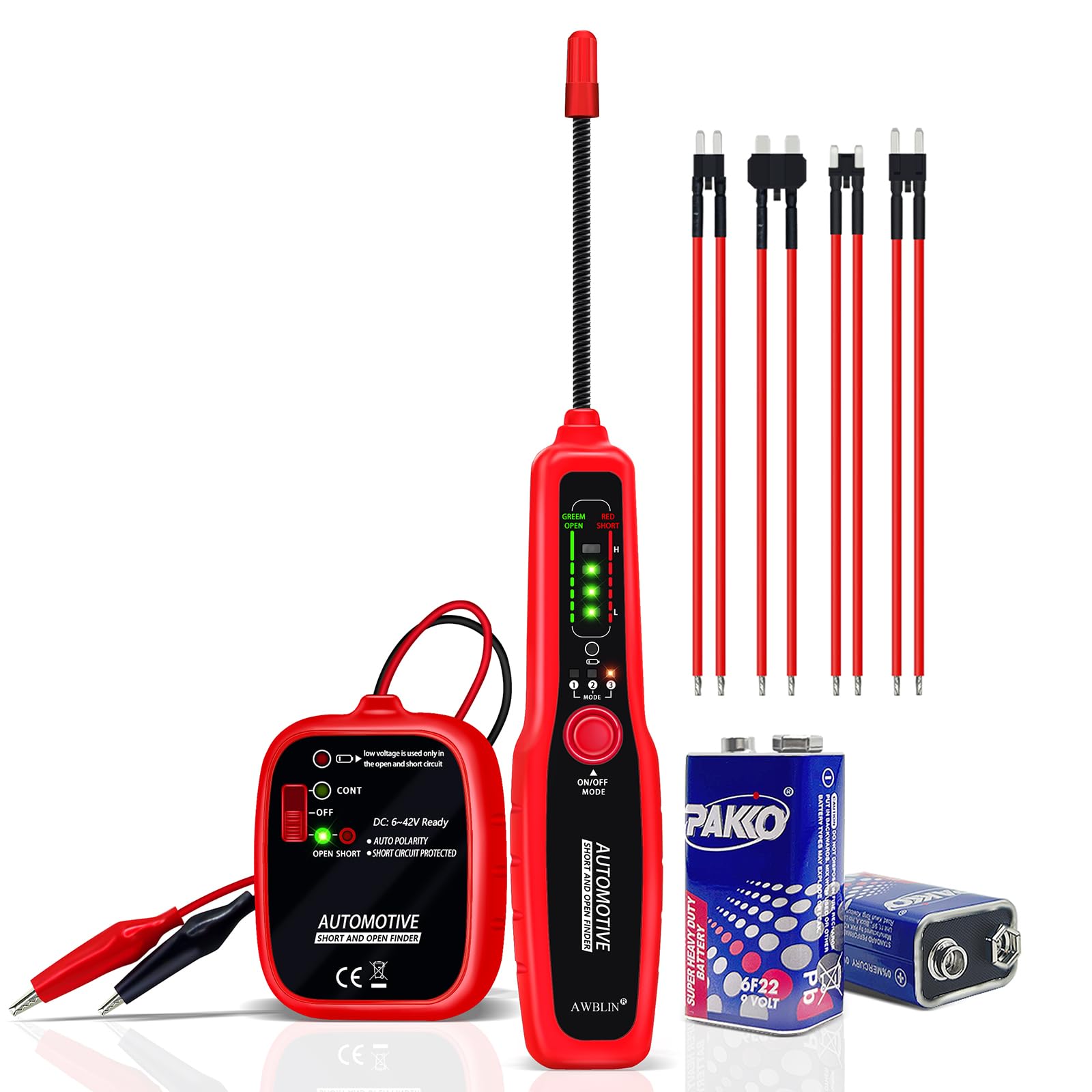

The system combines a transmitter and a receiver, delivering clear feedback through sound and LED indicators. A dedicated low-battery alert keeps you informed, so you can plan your workflow without unexpected interruptions. The result is a practical, when-needed solution for tracing cables and verifying cable continuity across a variety of automotive and electrical setups.

What makes AWBLIN Wire Tracer useful

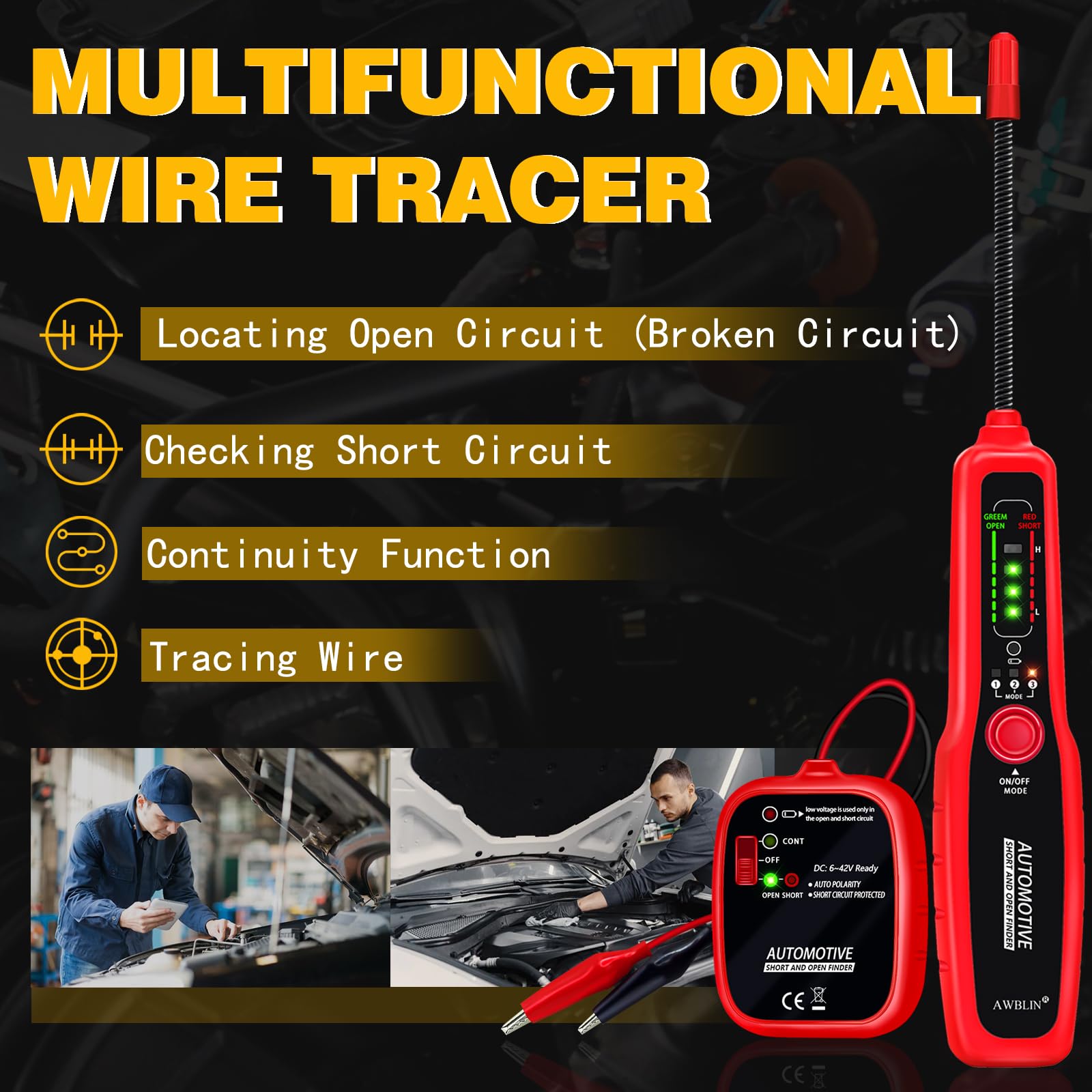

• Multifunctional open & short finder: locate breaker points, open connections, broken wires, and potential leakage paths.
• Non-destructive tracing: identify wires and cables without stripping insulation or damaging the harness.
• Clear test status: a transmitter and receiver pair provides audible tones and LED signals for easy interpretation.
• Battery awareness: built-in low-battery indicator helps you test with confidence on-site.

How signals guide you in real life

• Open circuit detection: a green light on the receiver paired with a specific tone helps you confirm continuity across a path.
• Short circuit detection: a red indication with a rapid beep flags a fault point to inspect closely.
• Continuity check: in CONT mode, connect the red and black clips to both ends of the wire; a lit green LED means good condition.

Tips for effective use

• Test one segment at a time to narrow down fault locations in complex harnesses.

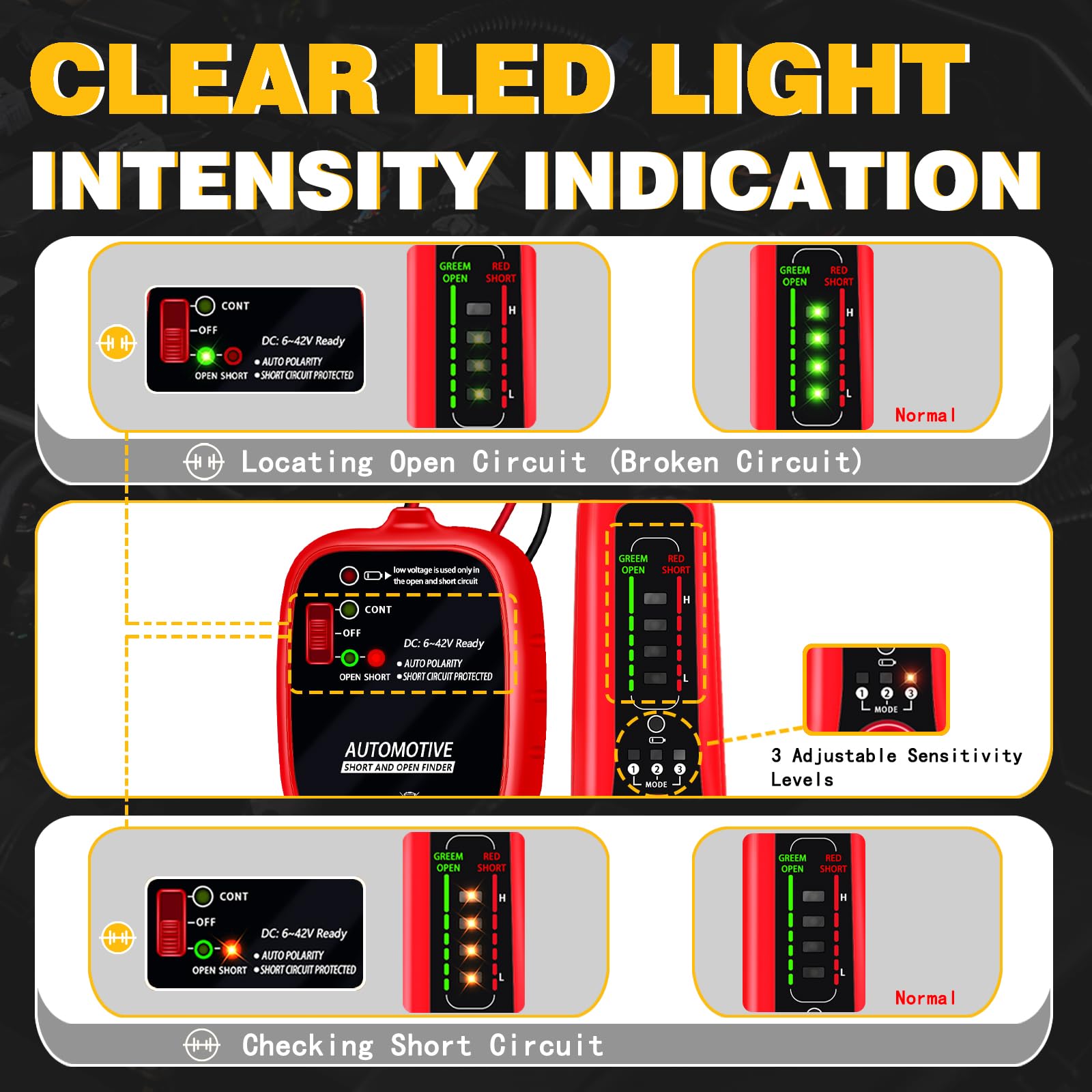

• Use the three intensity modes on the receiver to adapt to noisy environments or dense wiring.
• Correlate LED and audible cues with your visual inspection for faster diagnostics.

Specifications and signals

• Voltage range: 6–42V for broad automotive and electrical applications.
• Transmitter/receiver pair with LED indicators and audible feedback.
• Open circuit: green light with a diminishing signal as you near the break.
• Short circuit: red light and rapid beeps signal a fault point.
• Continuity testing: green light confirms a healthy wire path when used in CONT mode.

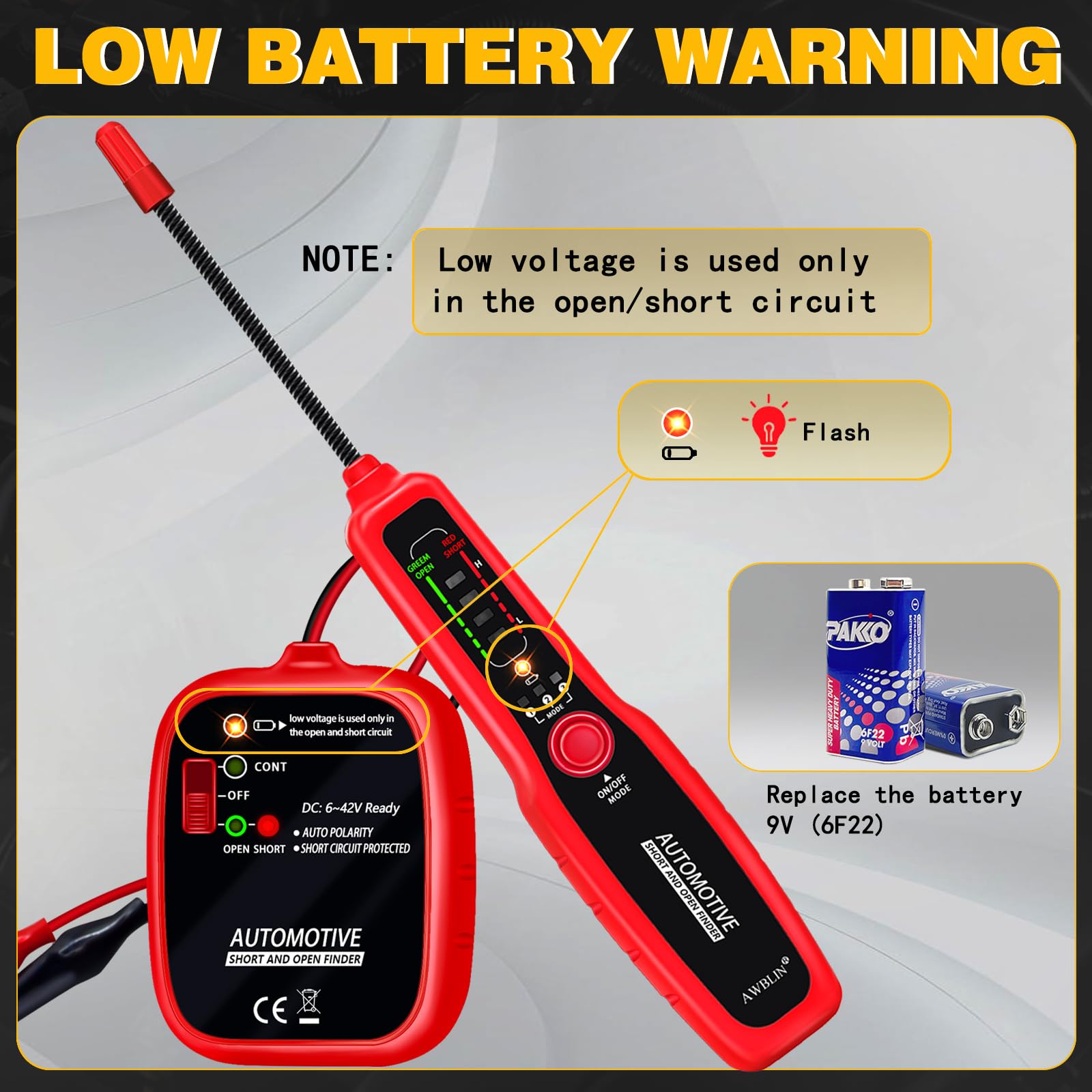

• Low battery alert keeps you informed during field work.

In practice, the AWBLIN Wire Tracer supports safer, more informed electrical troubleshooting. It’s designed to be easy to integrate into a workflow, enabling you to move from problem identification to repair planning with fewer doubts and interruptions.
