Adoles 35mm Concealed Door Hinge Jig | Accurate Locking Cabinet Hardware

Meet Adoles 35mm Concealed Door Hinge Jig

Designed for DIYers and professionals, this guide tool blends sturdy aluminum alloy with precision engineering to help you install concealed hinges with confidence. Its compact profile and smooth operation feel reliable in hand and on the workbench.

Premium build for consistent results

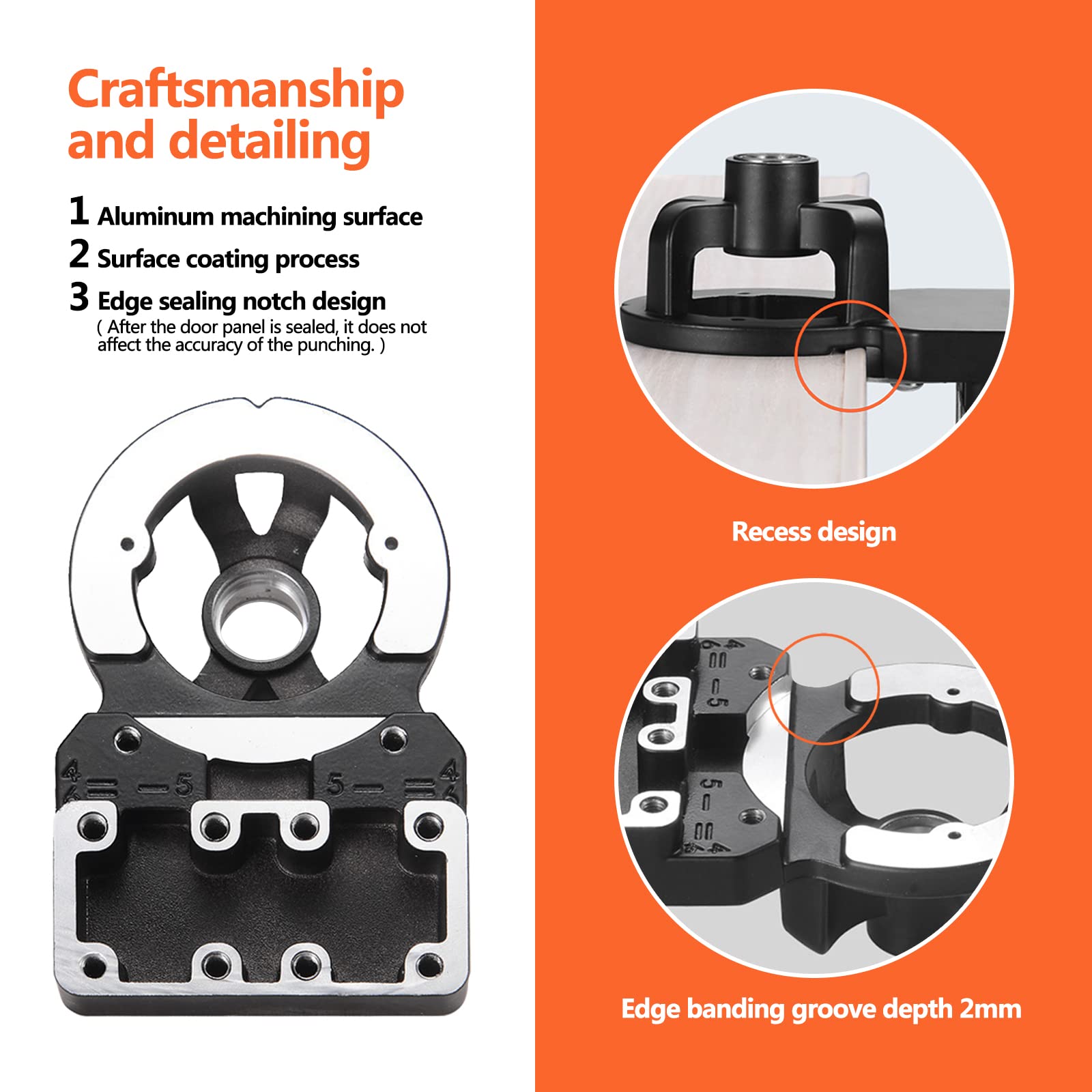

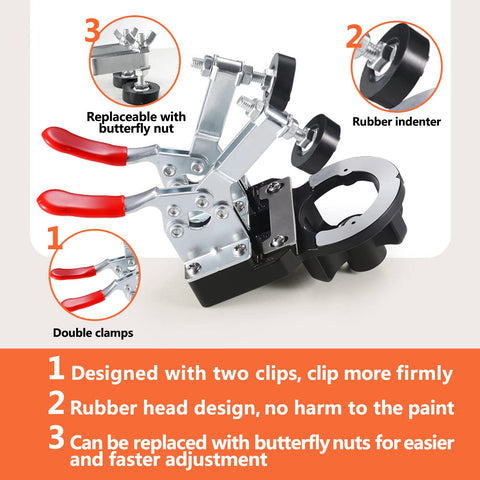

• Premium aluminum alloy material offers durability and a light, rigid feel during drilling and positioning.

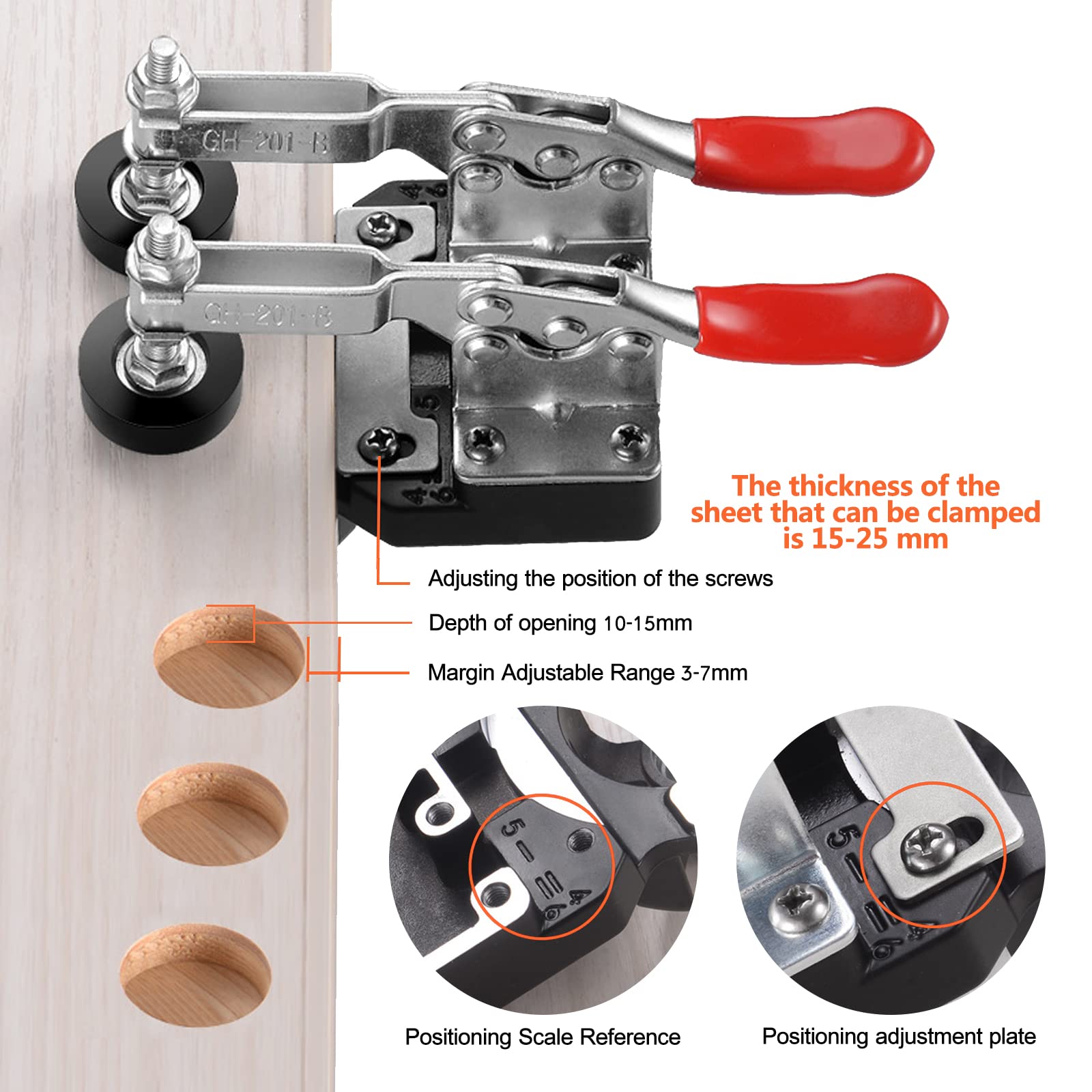

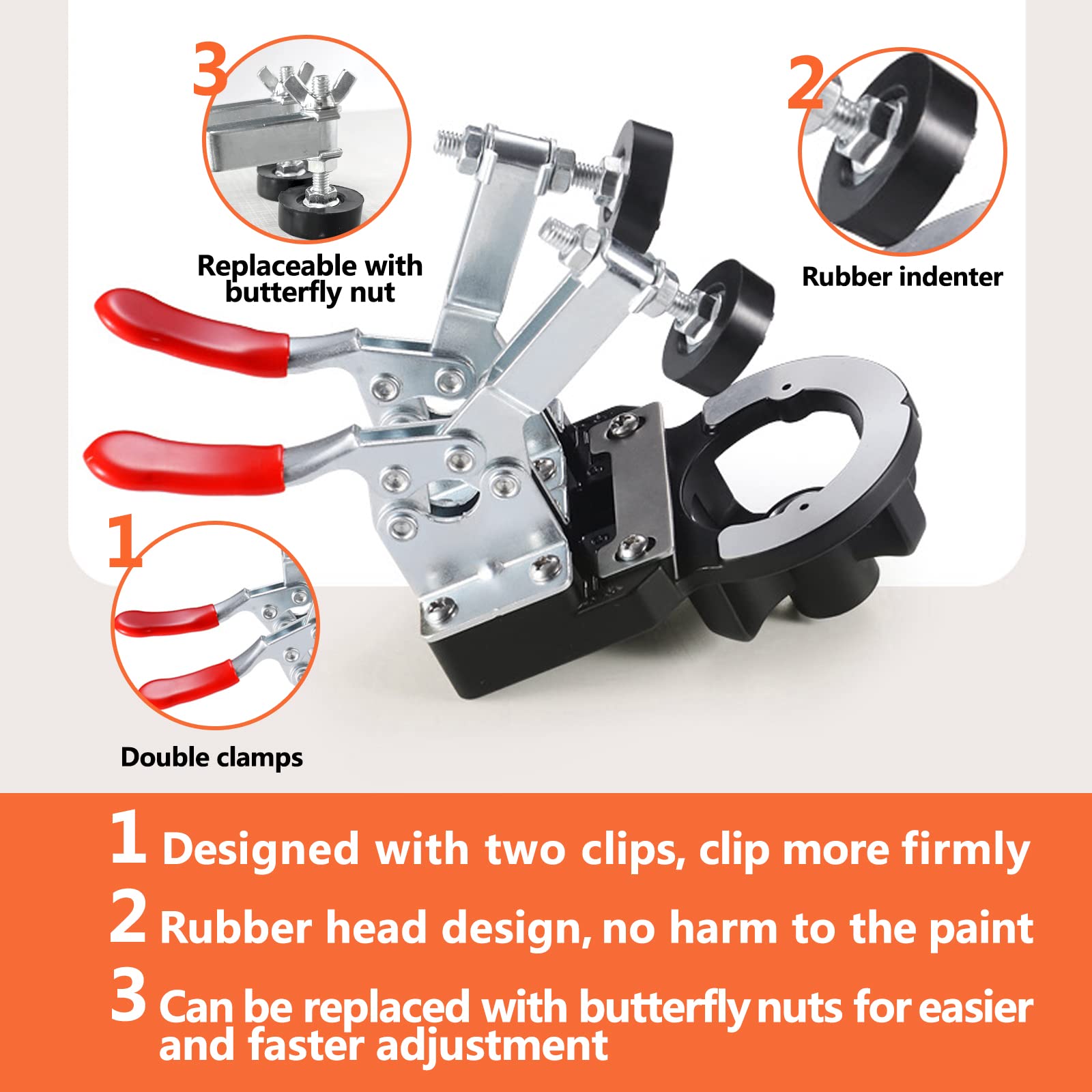

• Adjustable double clamping plate provides accurate positioning across a range of panel thicknesses (15–25 mm).
• Focus on practicality with an adjustable opening depth (10–15 mm) and drilling edge distance (3–7 mm).

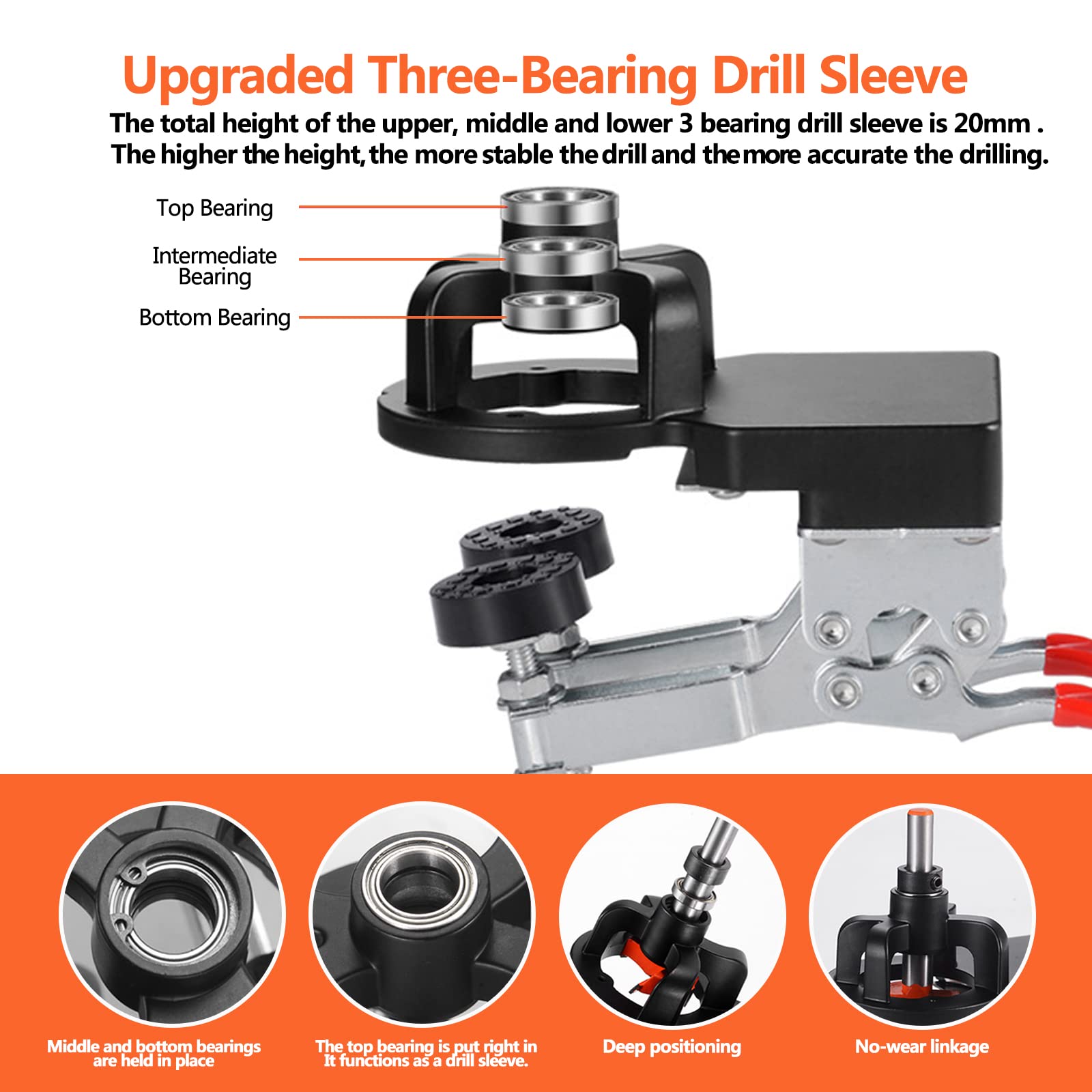

• Upgraded three bearing drill sleeve keeps the bit aligned, reducing wobble for cleaner holes.

Flexible and user friendly

• Easy to use with any drill—no fancy workshop required, ideal for quick DIY hinge projects.
• Compatible with most 35 mm cabinet hinge jigs and clamps, helping you adapt to various cabinet designs.

Why precision matters

In cabinet making, concealed hinges rely on exact alignment for smooth operation and uniform gaps. The Adoles jig helps you control several critical variables, from panel thickness to hinge edge distance, so doors align evenly over time.

• Controlled 15–25 mm thickness clamping reduces drift during drilling.
• Adjusted opening depth and edge distance help you tailor each hinge location.
• Three bearing sleeves minimize bit wobble for cleaner hole openings.
• Rigid aluminum construction resists flex during repeated use.

Real life use cases

Install kitchen cabinet doors, jewelry boxes, or storage compartments with consistent hinge placement. The adjustability supports door re hangs after trim work or seasonal changes.

What’s included and how it helps

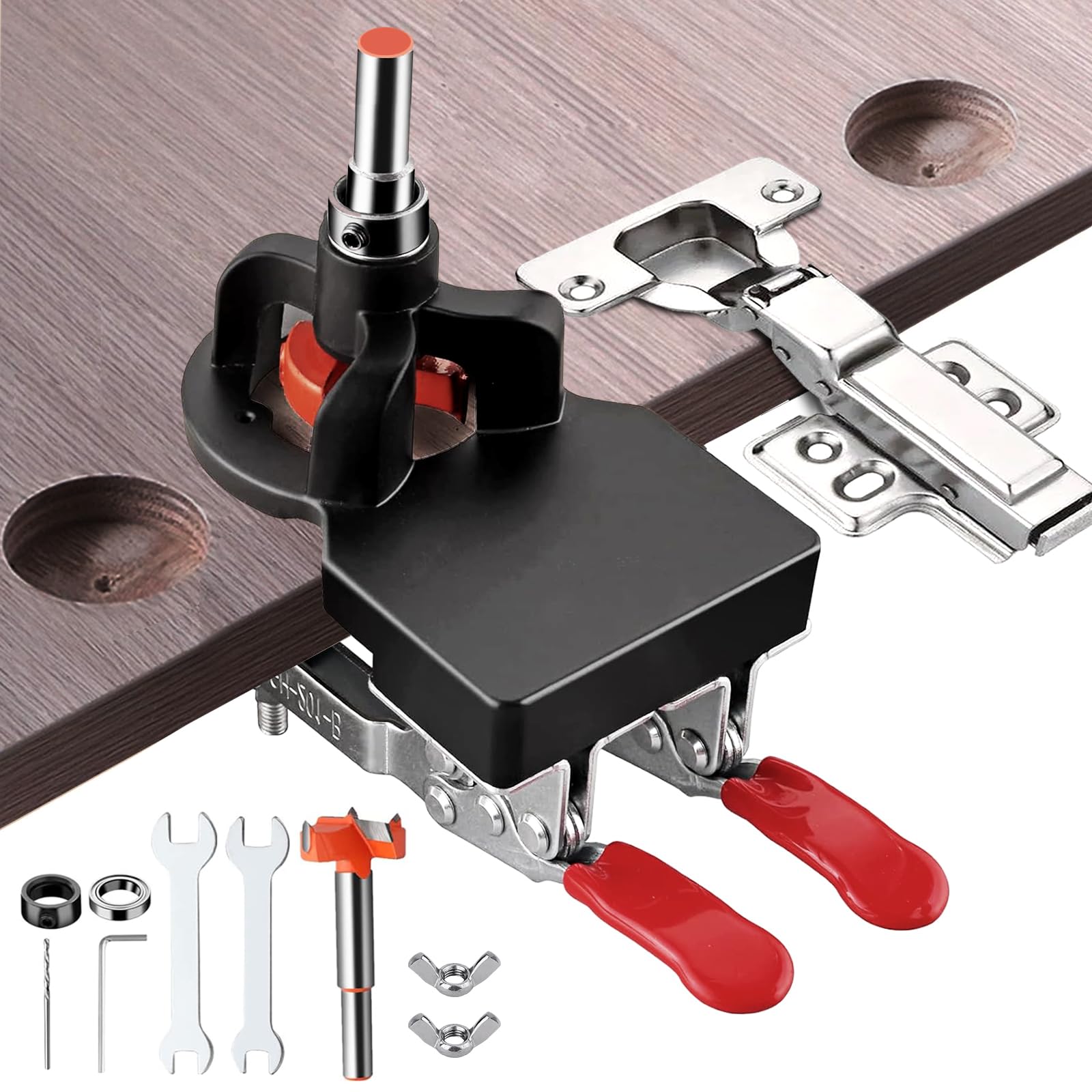

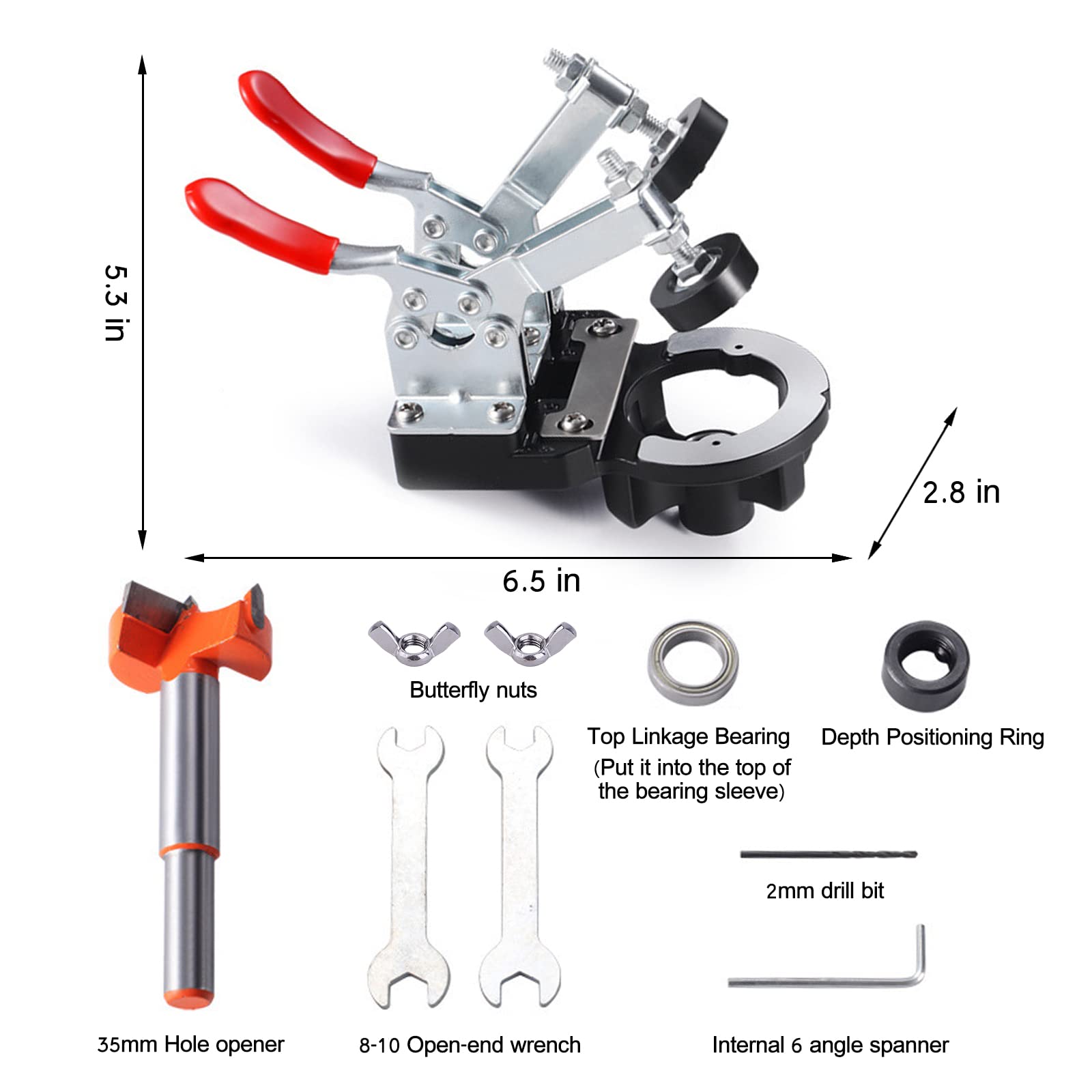

• Concealed hinge jig body with adjustable clamps for precise mounting.

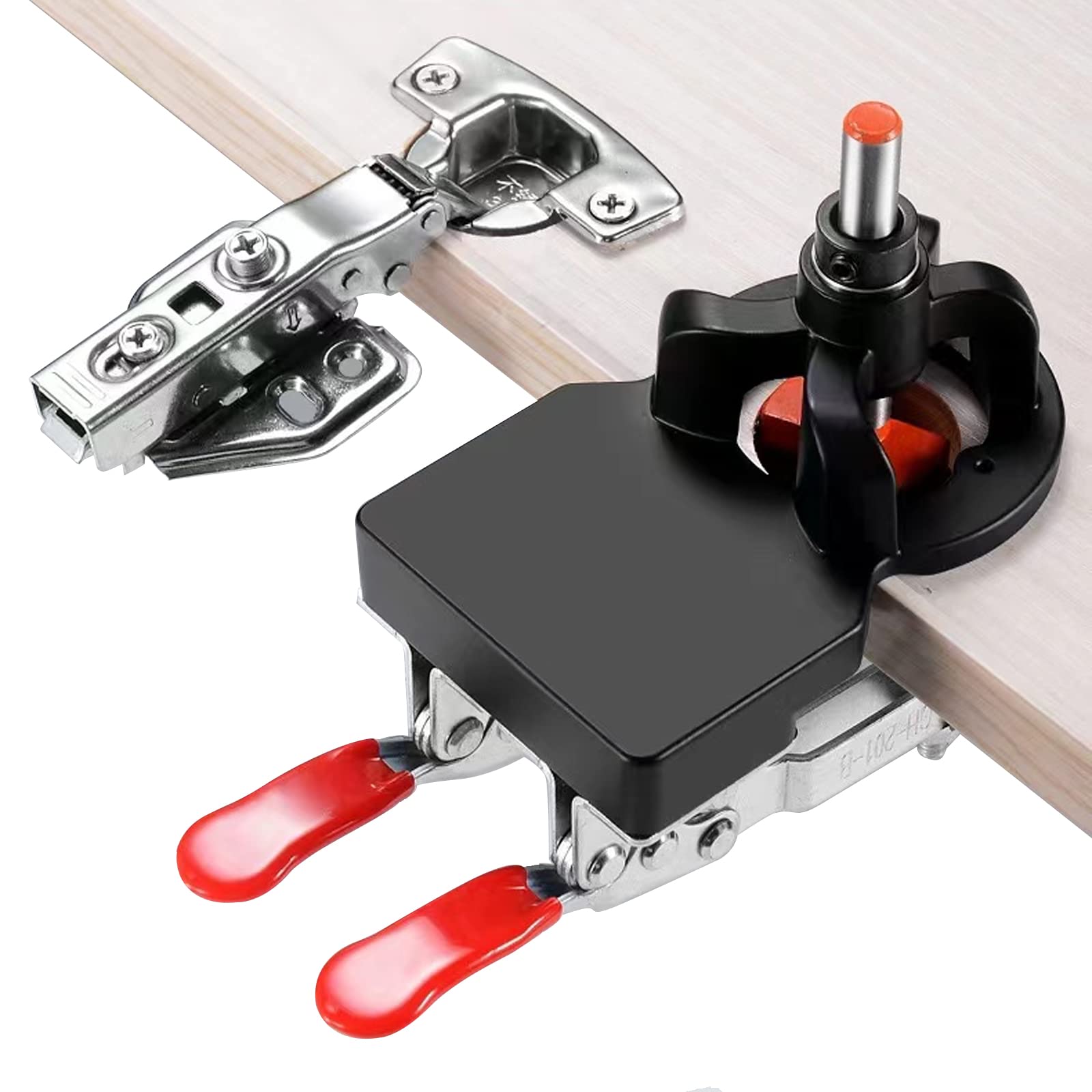

• Two retaining clips secure hinges during final assembly.
• Three bearing sleeves minimize bit wobble for cleaner holes.
• Compact profile that fits into tight spaces and busy workbenches.
