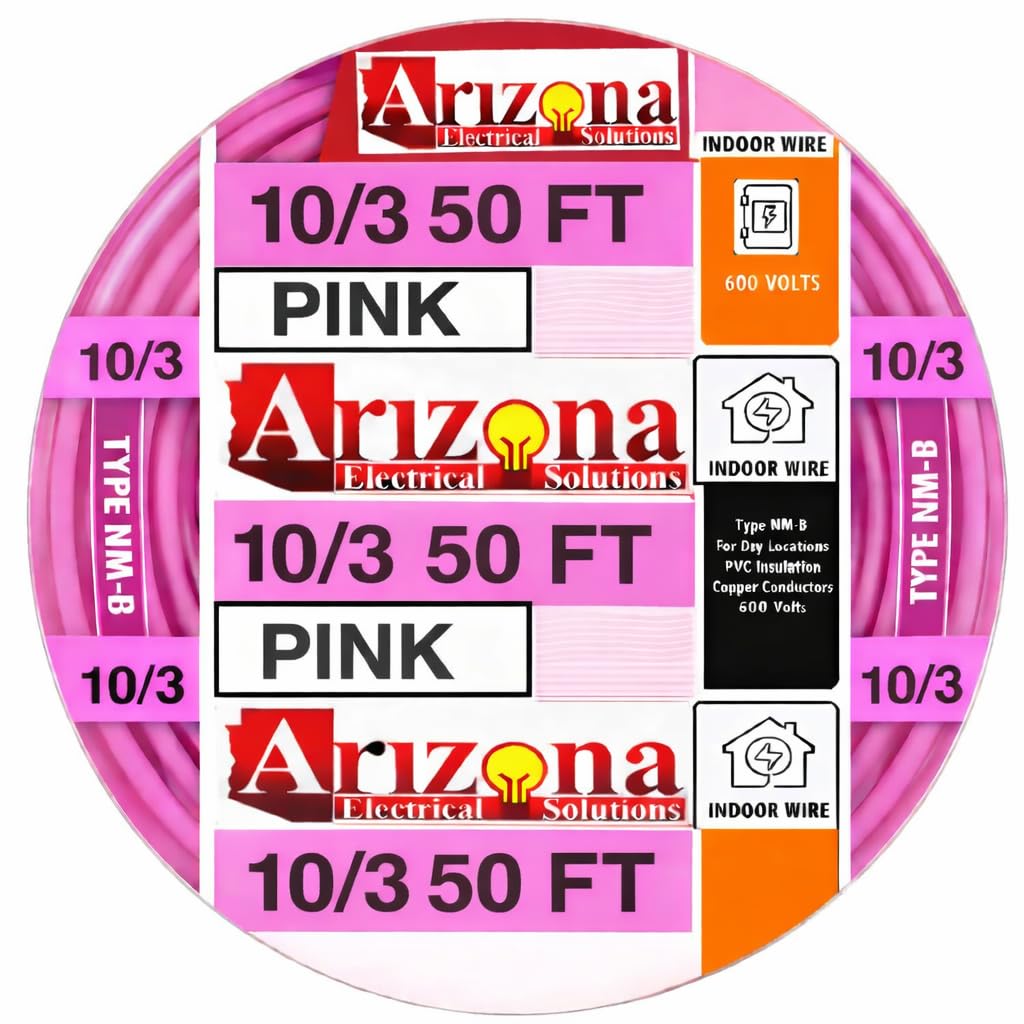

50 ft 10/3 NM-B Copper Cable – 3-Conductor with Ground | Pink Jacket | ARIZONA ELECTRICAL SOLUTIONS

Overview

Designed for residential wiring, this 50 ft NM-B cable provides a straightforward solution for feeding outlets, switches, and lighting throughout normally dry interior spaces. The assembly uses #10 AWG copper conductors arranged as three insulated conductors plus a grounding conductor, all housed in a pink jacket that helps with quick visual identification during installation. The flexible 10 AWG conductors balance ease of handling with robust current capacity, making it a practical choice for typical home runs, attic pulls, and wall cavity routing.

Why pink NM-B matters

The distinctive pink jacket enhances on-site visibility, helping crews differentiate NM-B wiring from other cable types during layout and pull operations. This can streamline planning, reduce the chance of misidentification, and support safer, more efficient installations in busy areas of a home.

Key Features

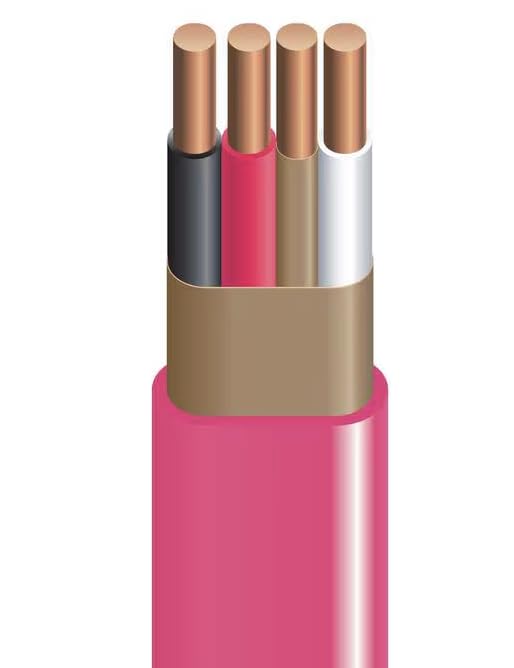

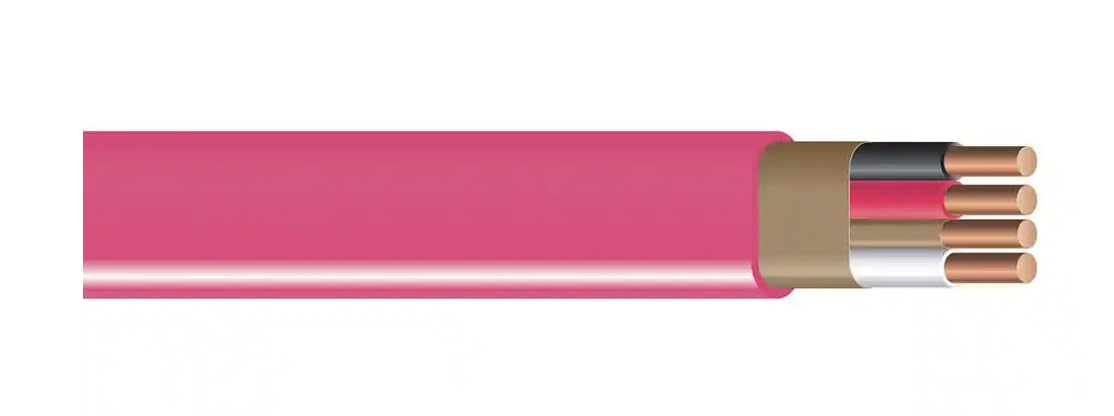

• 50 ft length with 10/3 copper NM-B construction, three current-carrying conductors plus ground
• Pink insulated jacket for easy identification and handling during layout and pull
• 600-volt rating suitable for standard home electrical circuits
• Conductor construction aligned with ASTM B-3/B-8, Federal Spec A-A-59544; NFPA 70 NEC; RoHS/REACH compliant

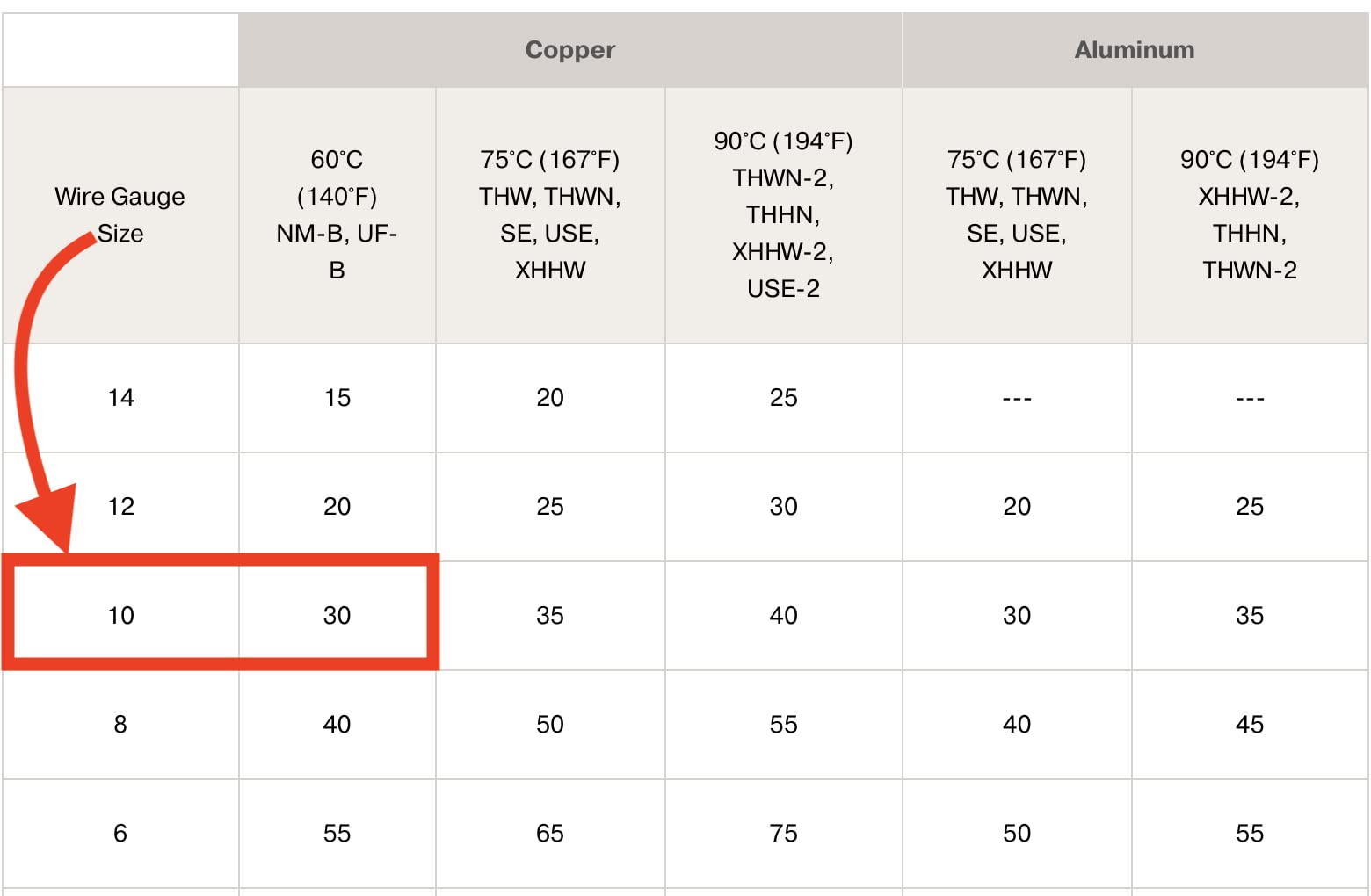

• Dry-location use with insulation rated up to 90°C, ampacity limited to 60°C per NEC

What You Can Use It For

• Residential branch circuits feeding outlets, switches, and lighting fixtures
• Exposed or concealed runs in normally dry wall cavities, basements, or attic spaces
• Runs through air voids in masonry block or tile walls that are dry and not damp
• Replacement or extension wiring projects where a standard 10 AWG NM-B cable is appropriate

Installation Notes

In any installation, follow local codes and manufacturer guidelines. This cable is designed to be compatible with typical residential electrical systems while offering a reliable, easy-to-manage option for dry indoor environments. The pink jacket aids identification, while the 50 ft length helps reduce splicing for moderate-length runs.
